OEM System Circuits: EPS: Notes

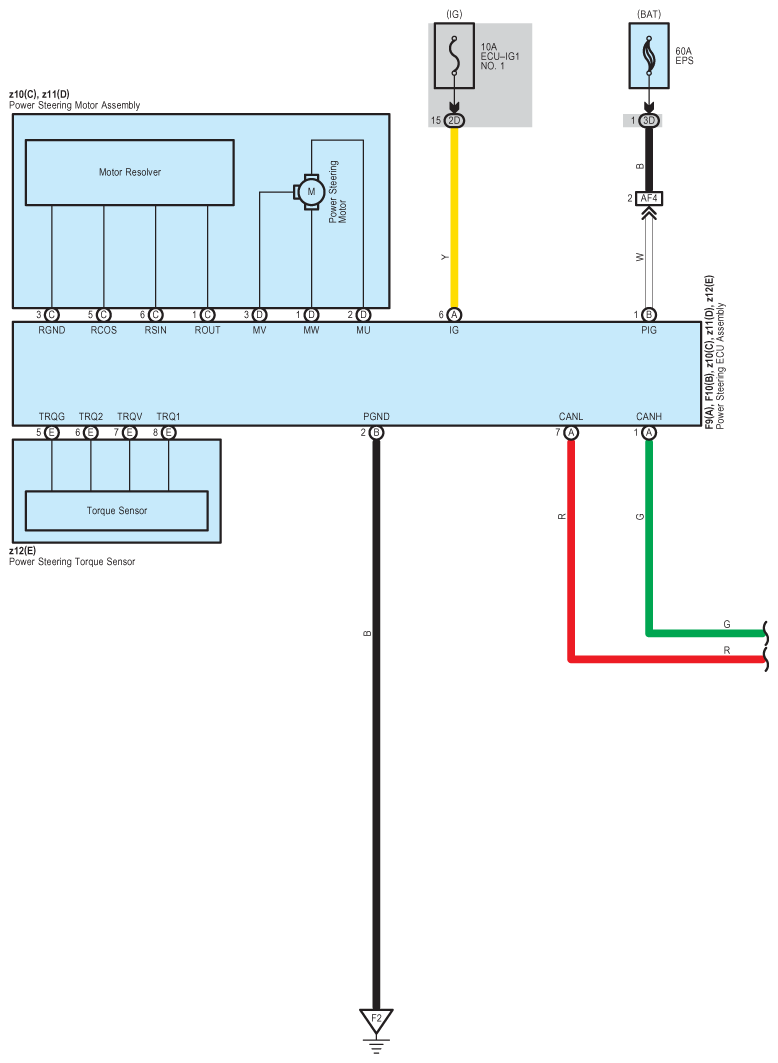

Fig 1: EPS - Wiring Diagram (1 Of 3)
G08938319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

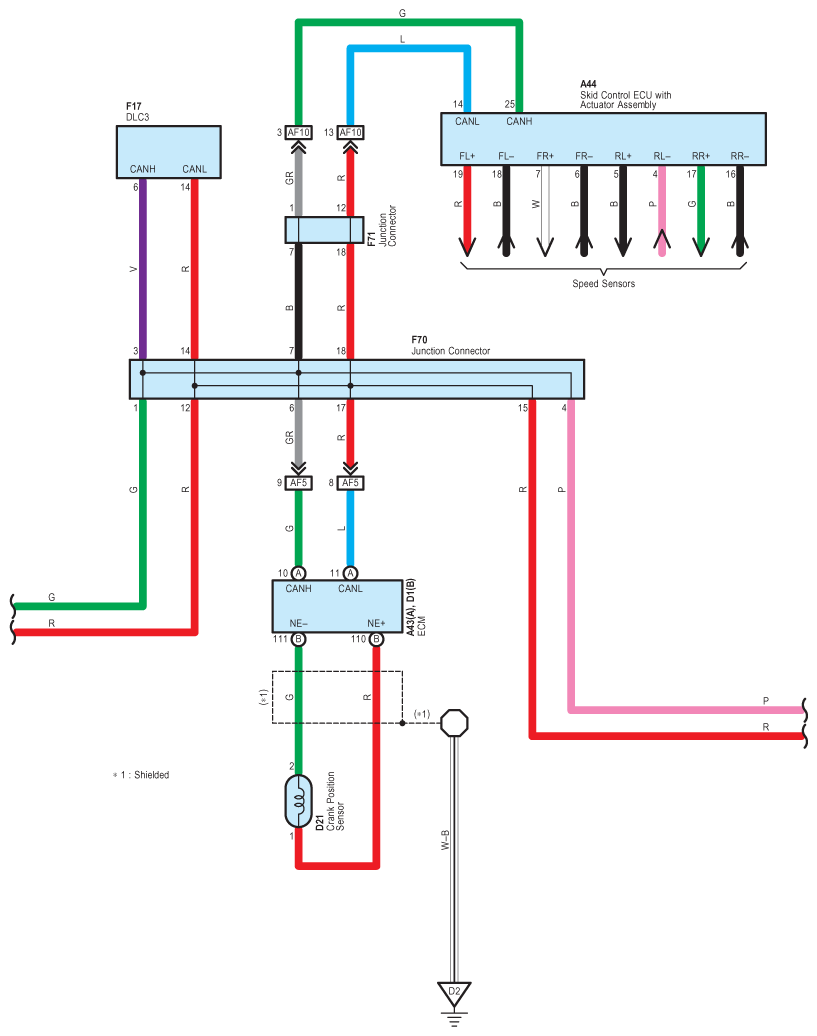

Fig 2: EPS - Wiring Diagram (2 Of 3)
G08938320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

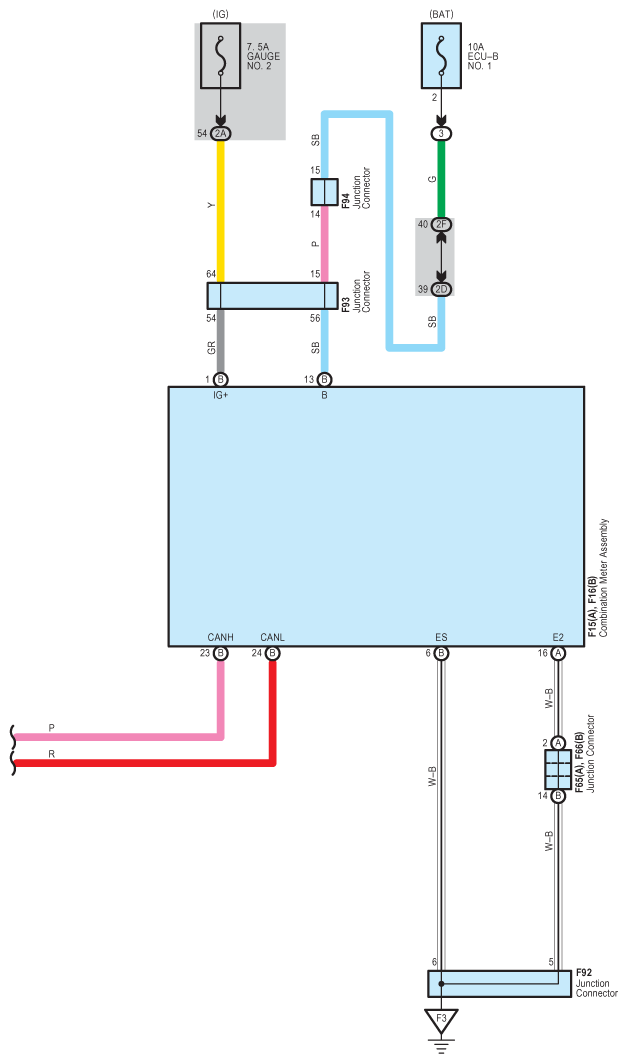

Fig 3: EPS - Wiring Diagram (3 Of 3)
G08938321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
