Multiplex Communication System (LIN): Notes

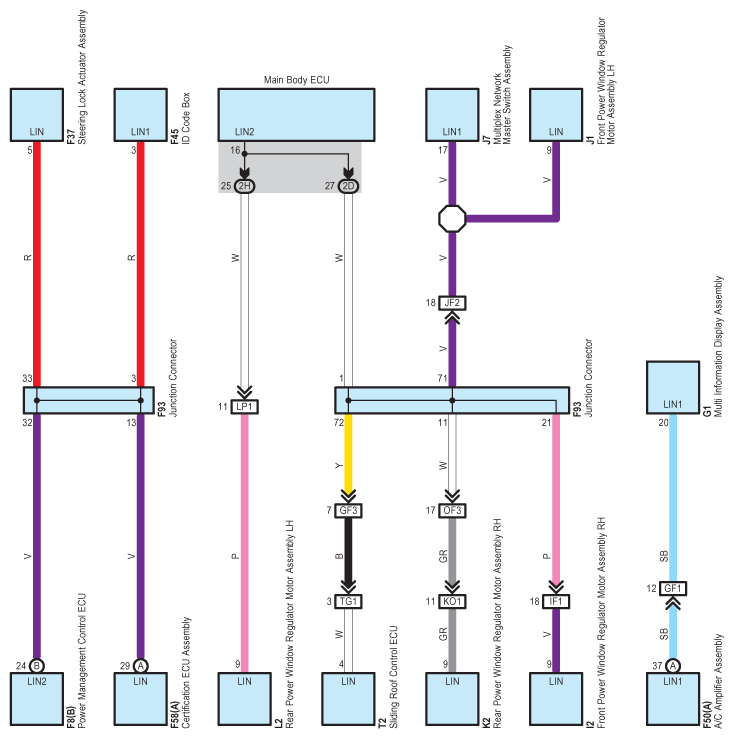

Fig 1: Multiplex Communication System (LIN) - Wiring Diagram

G08938199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
