Home >> Lexus >> 2012 >> RX 350 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Shift Lock >> Notes

Shift Lock: Notes

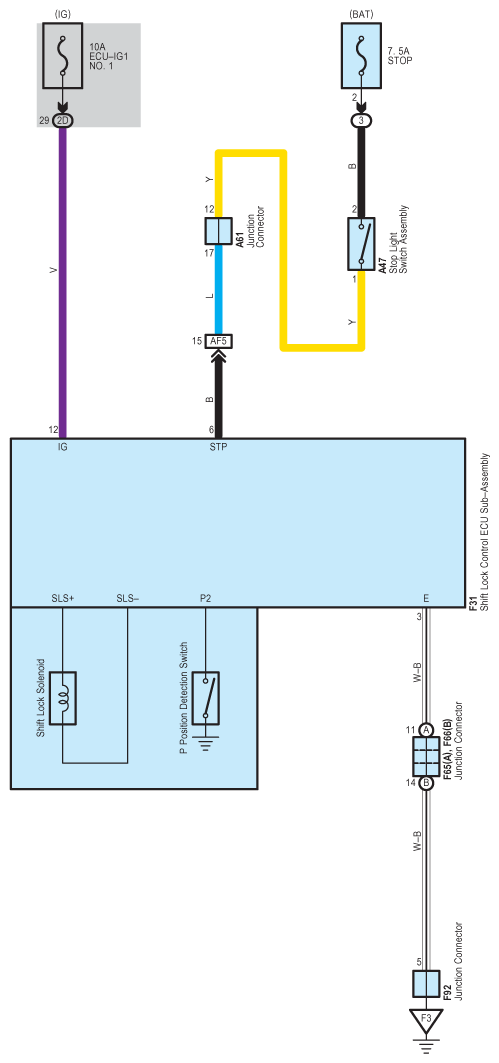

Fig 1: Shift Lock - Wiring Diagram
G08938349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
