Seat Heater: Notes

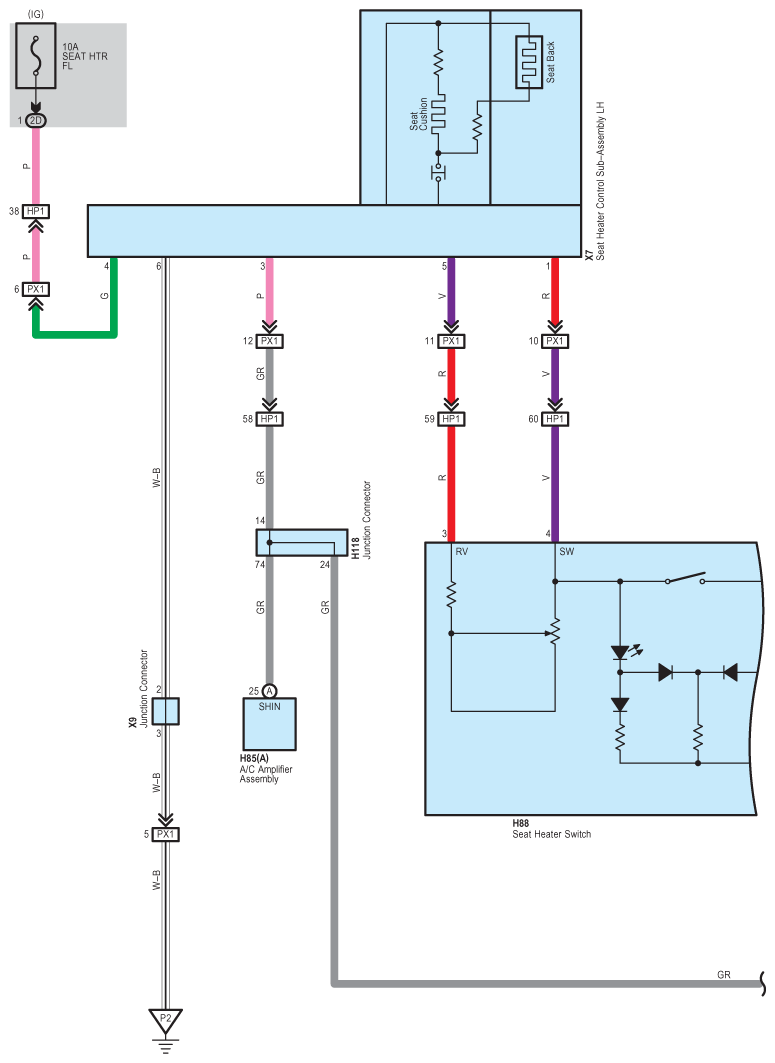

Fig 1: Seat Heater System Wiring Diagram (1 Of 2)
G09113761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

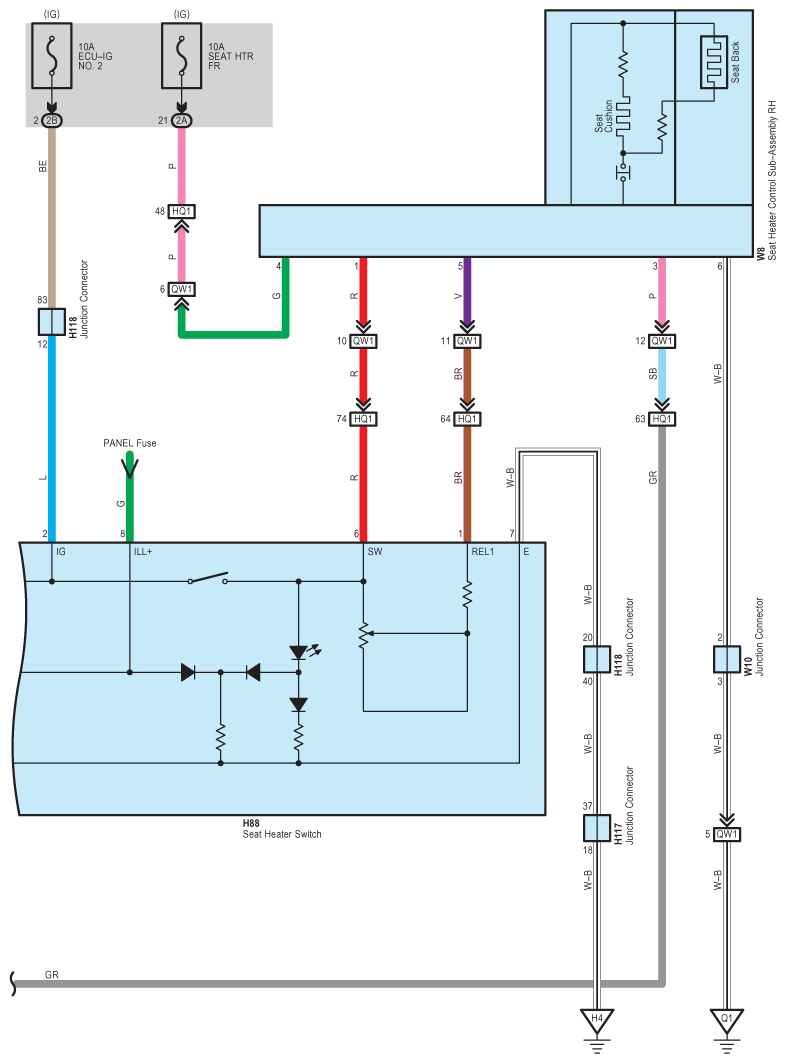

Fig 2: Seat Heater System Wiring Diagram (2 Of 2)
G09113762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
