OEM System Circuits: Ignition: Notes

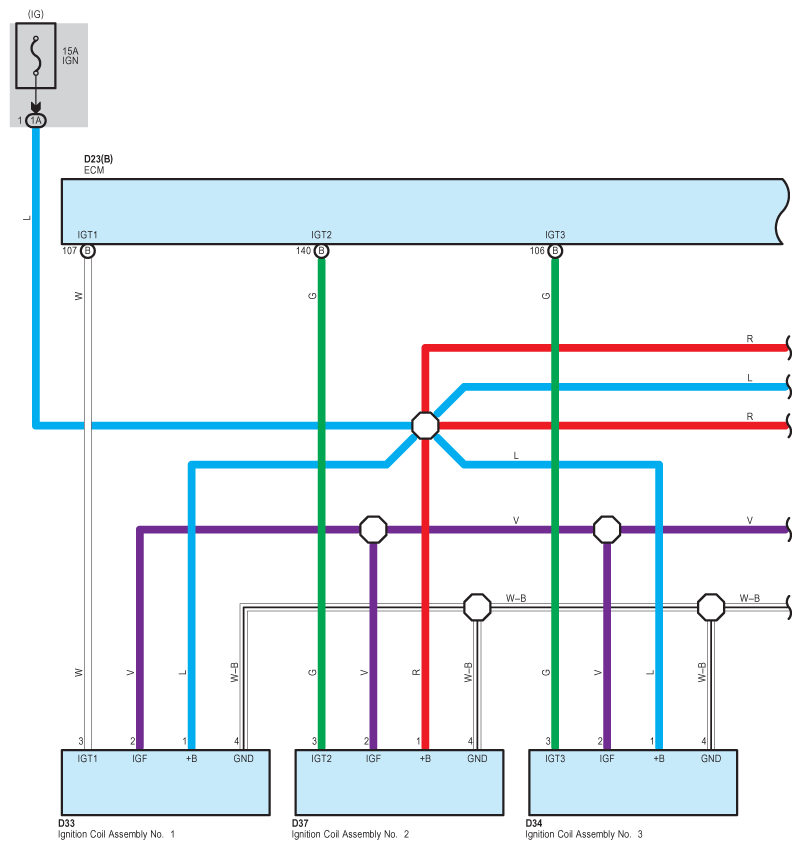

Fig 1: Ignition - Circuit Diagram (1 Of 2)
G08948138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

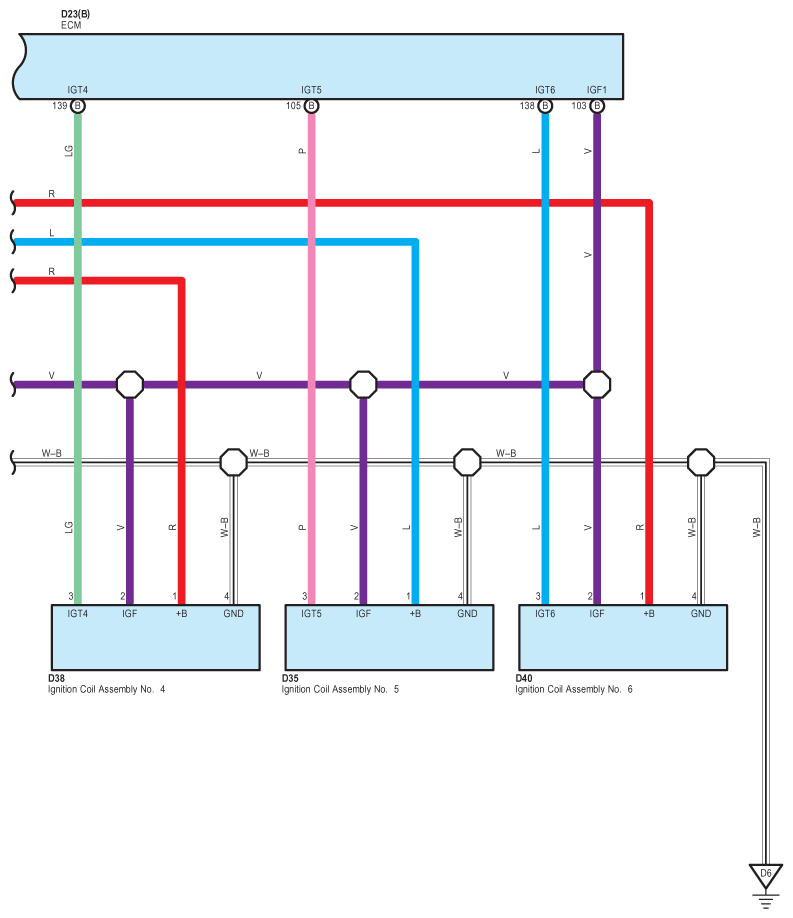

Fig 2: Ignition - Circuit Diagram (2 Of 2)
G08948139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
