Home >> Lexus >> 2013 >> GS 450h >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Power Outlet >> Notes

Power Outlet: Notes

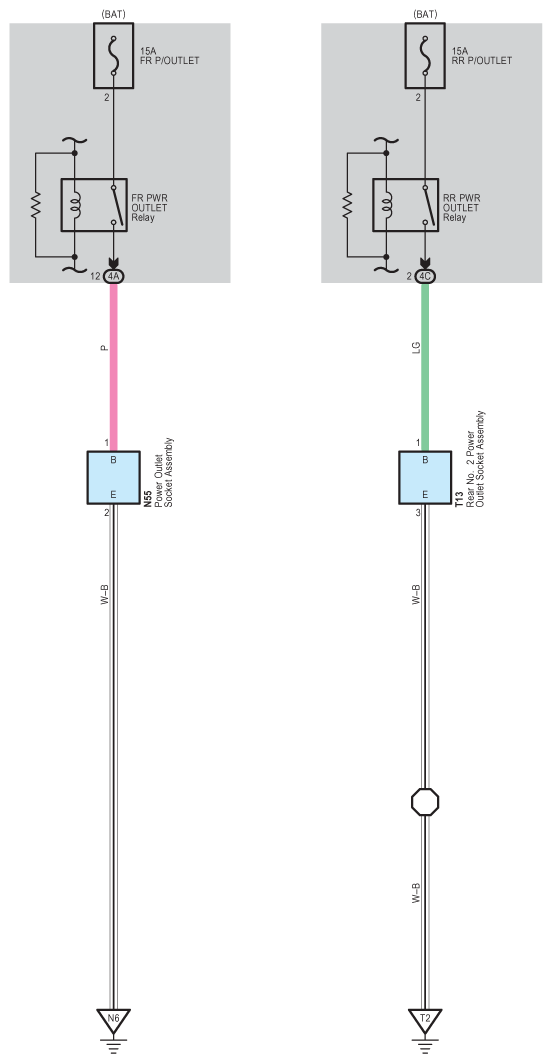

Fig 1: Power Outlet Wiring Diagram
G09118047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
