Sliding Roof: Notes

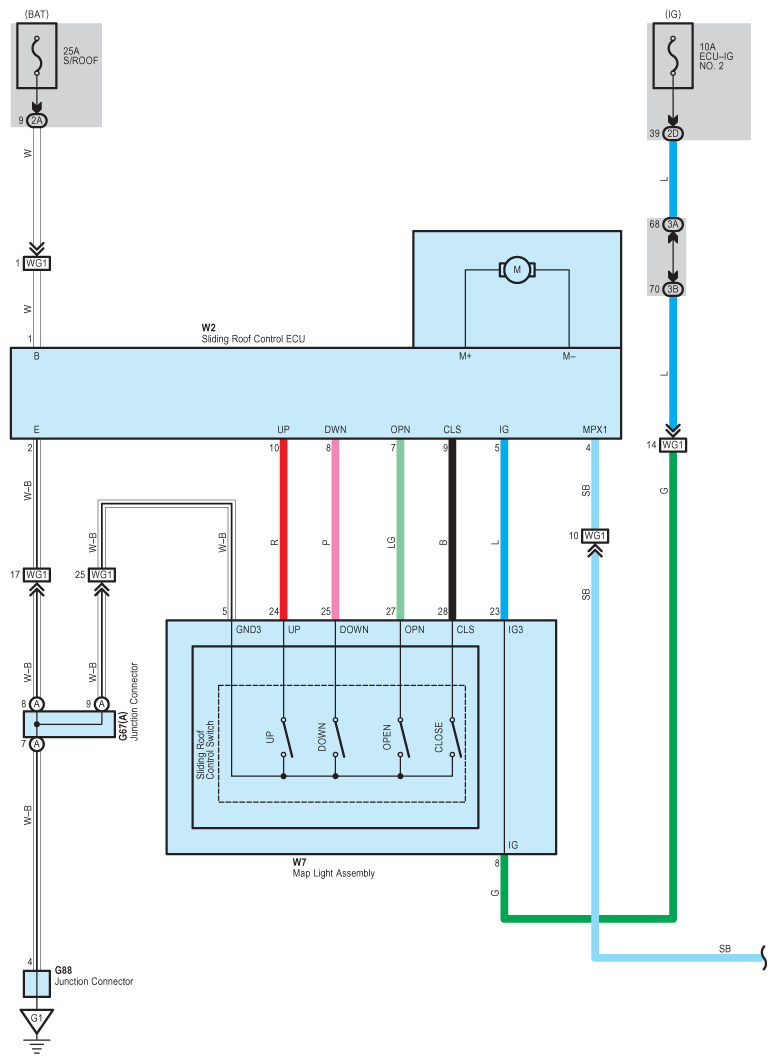

Fig 1: Sliding Roof - Wiring Diagram (1 Of 4)
G09114700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

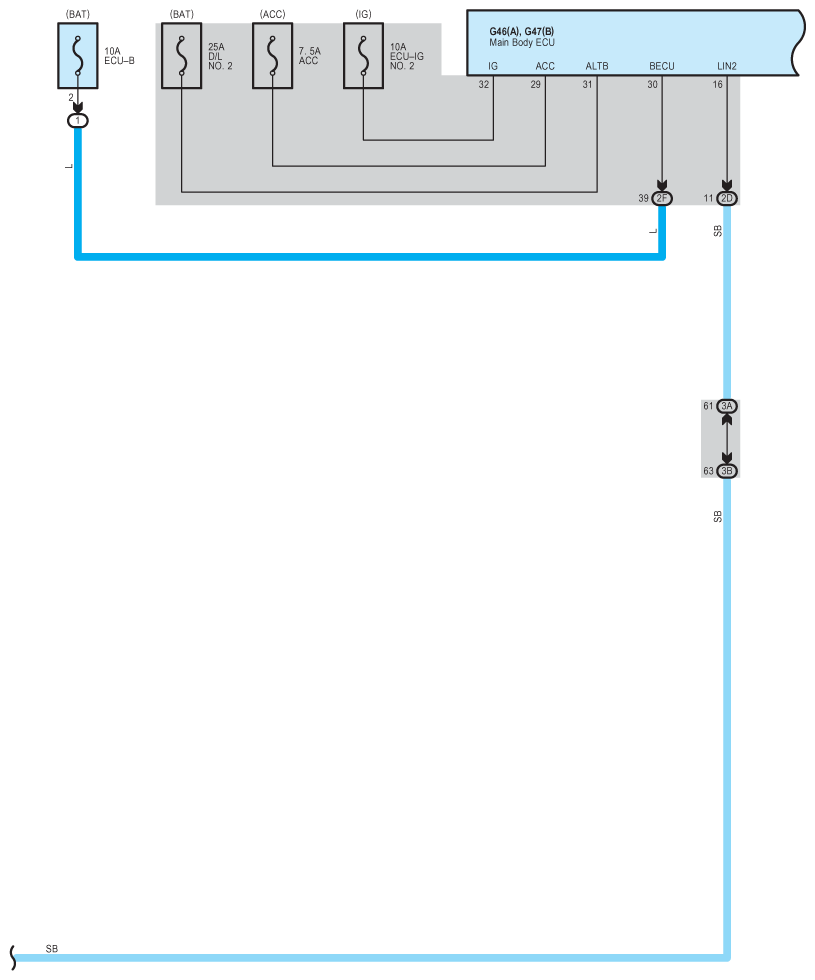

Fig 2: Sliding Roof - Wiring Diagram (2 Of 4)
G09114701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

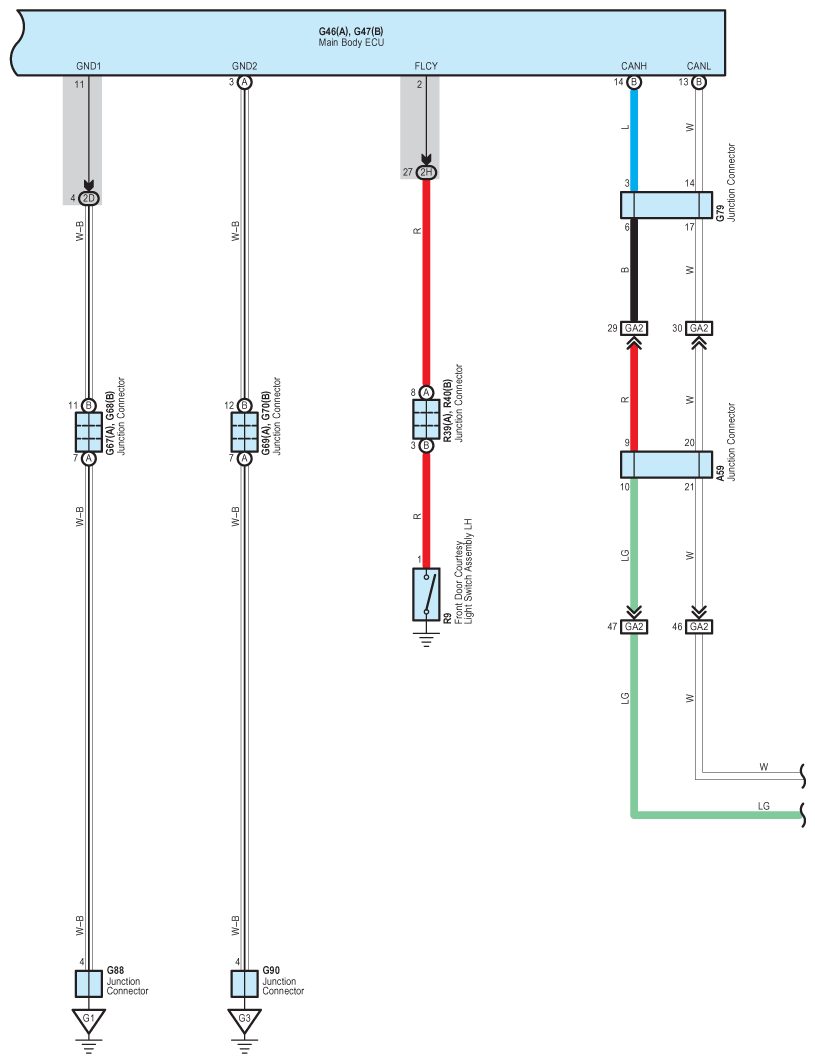

Fig 3: Sliding Roof - Wiring Diagram (3 Of 4)
G09114702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

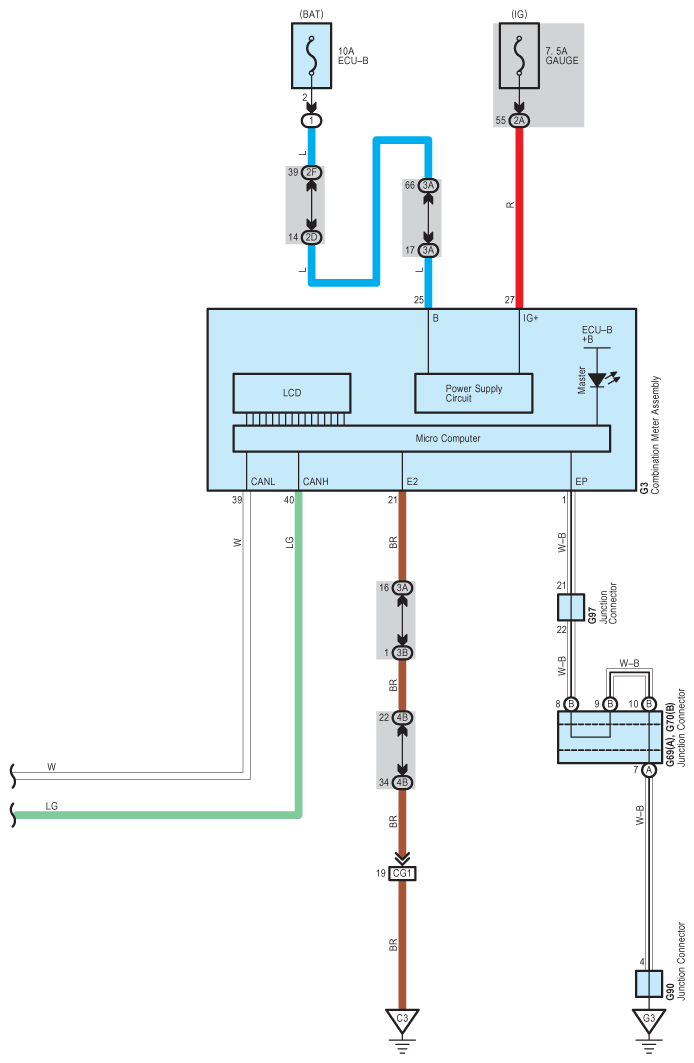

Fig 4: Sliding Roof - Wiring Diagram (4 Of 4)
G09114703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
