OEM System Circuits: EPS: Notes

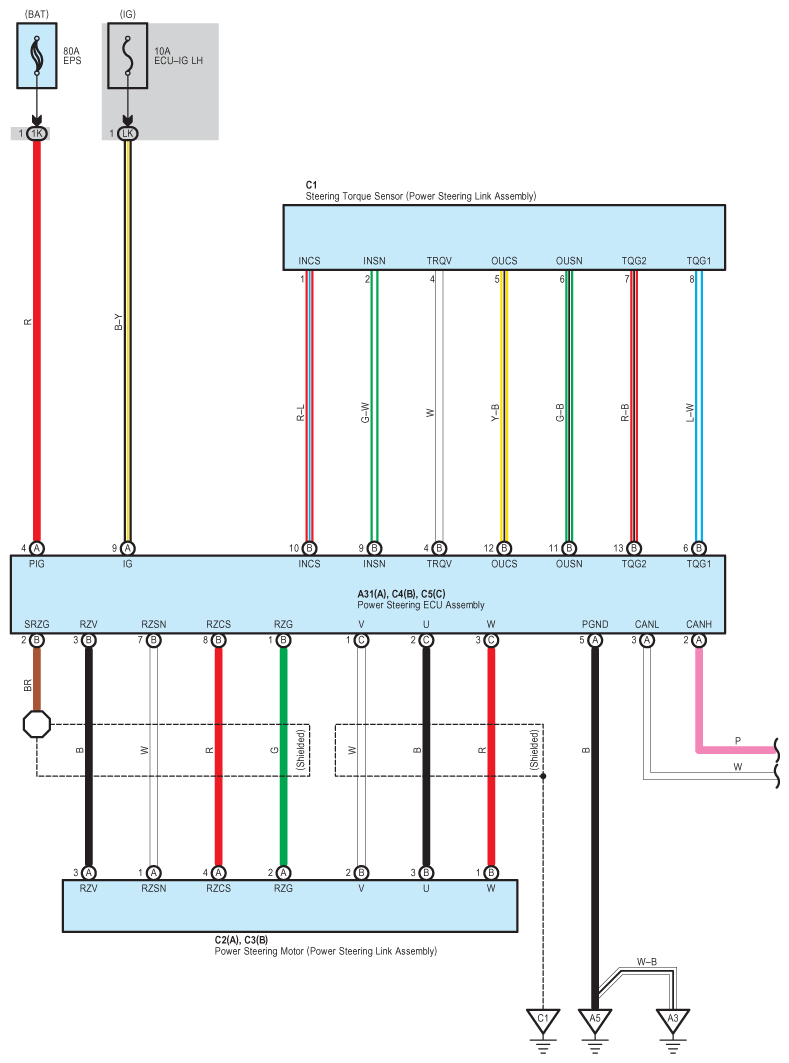

Fig 1: EPS Wiring Diagram (1 Of 4)

G09121331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

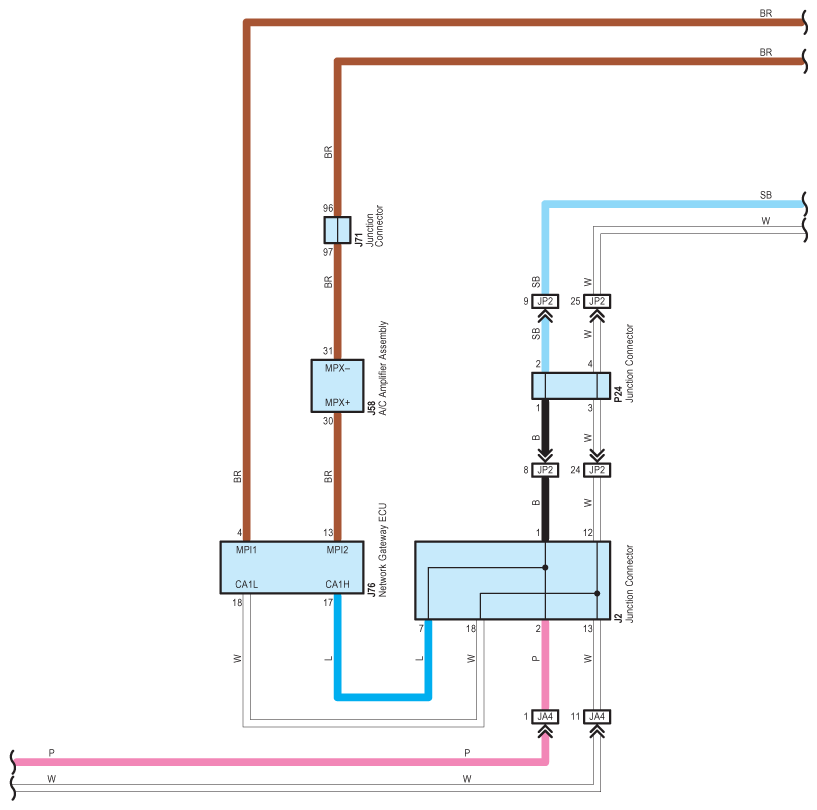

Fig 2: EPS Wiring Diagram (2 Of 4)

G09121332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

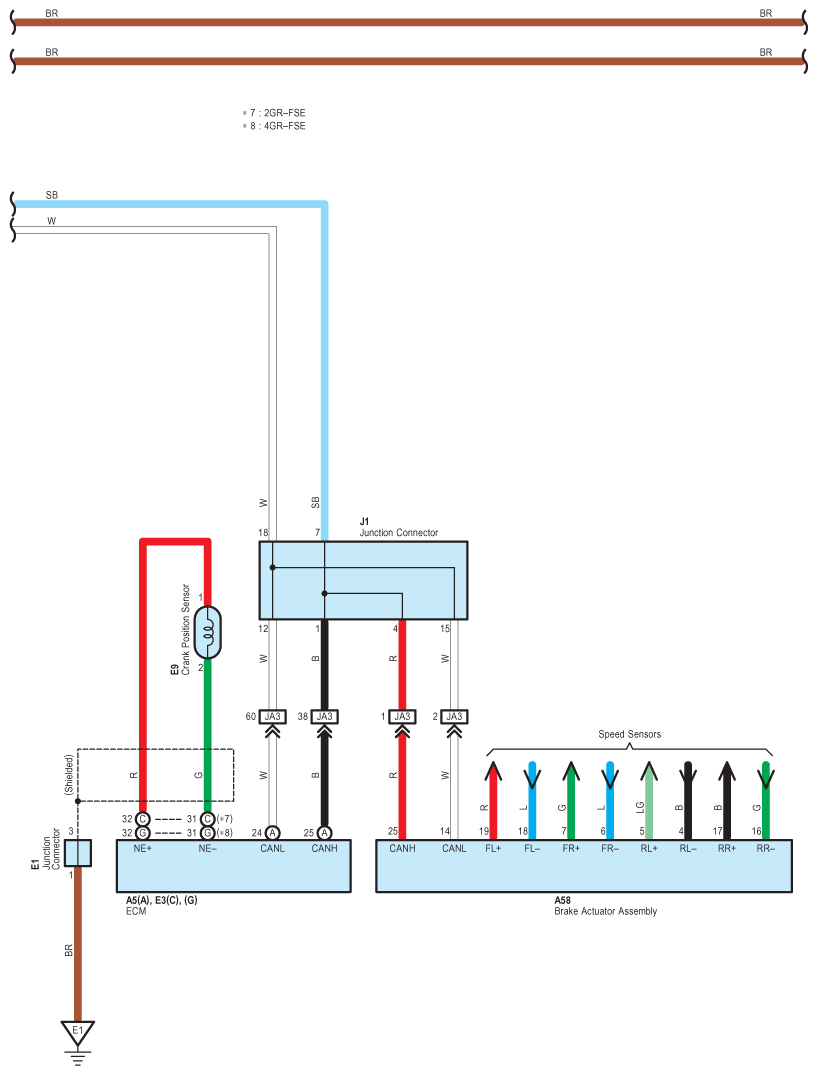

Fig 3: EPS Wiring Diagram (3 Of 4)

G09121333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

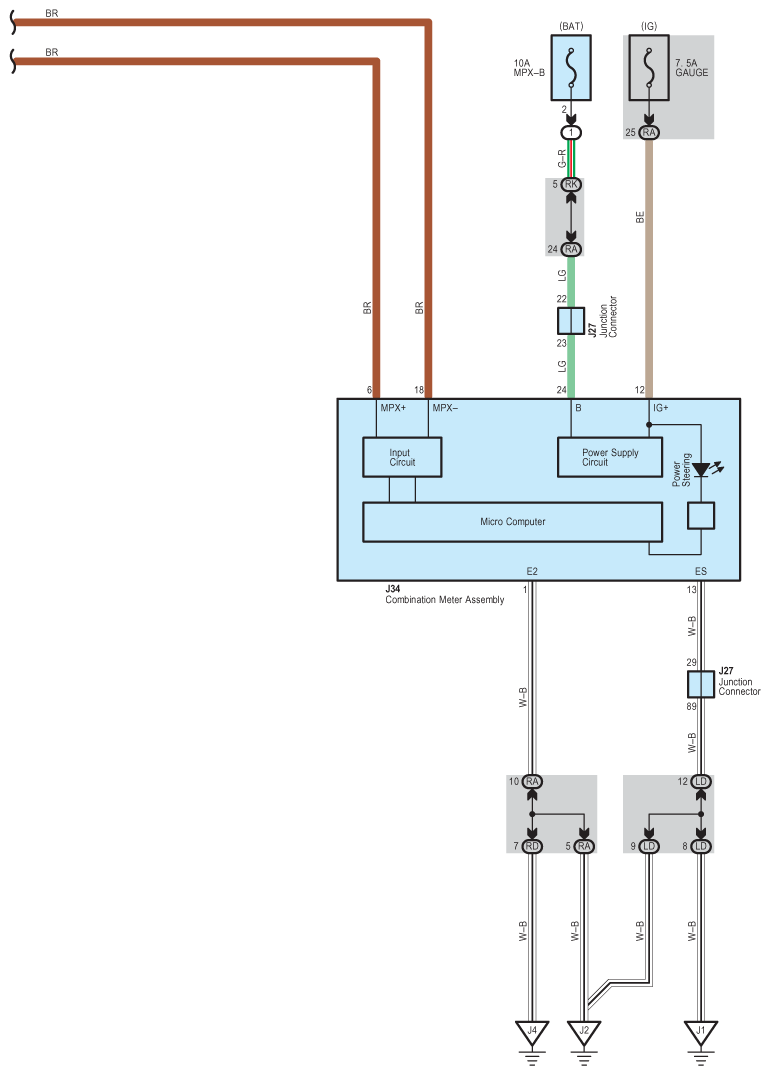

Fig 4: EPS Wiring Diagram (4 Of 4)

G09121334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
