OEM System Circuits: Taillight: Notes

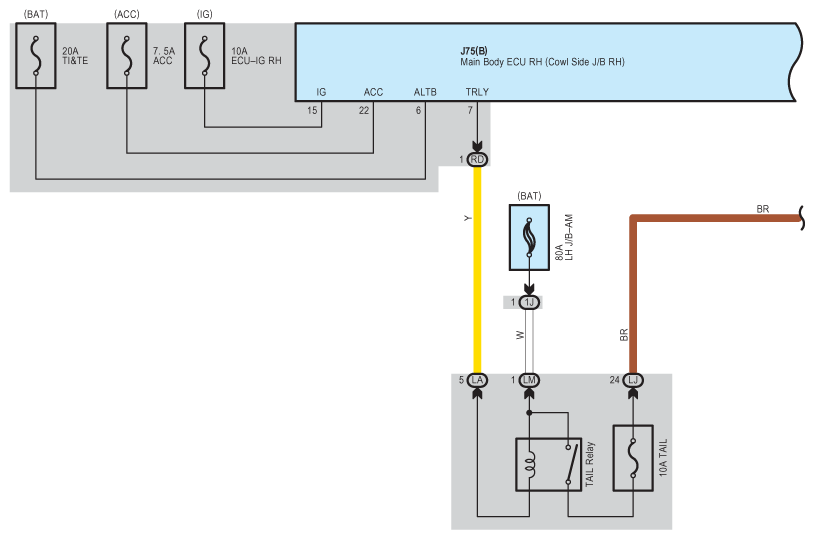

Fig 1: Taillight Wiring Diagram (1 Of 8)

G09121195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

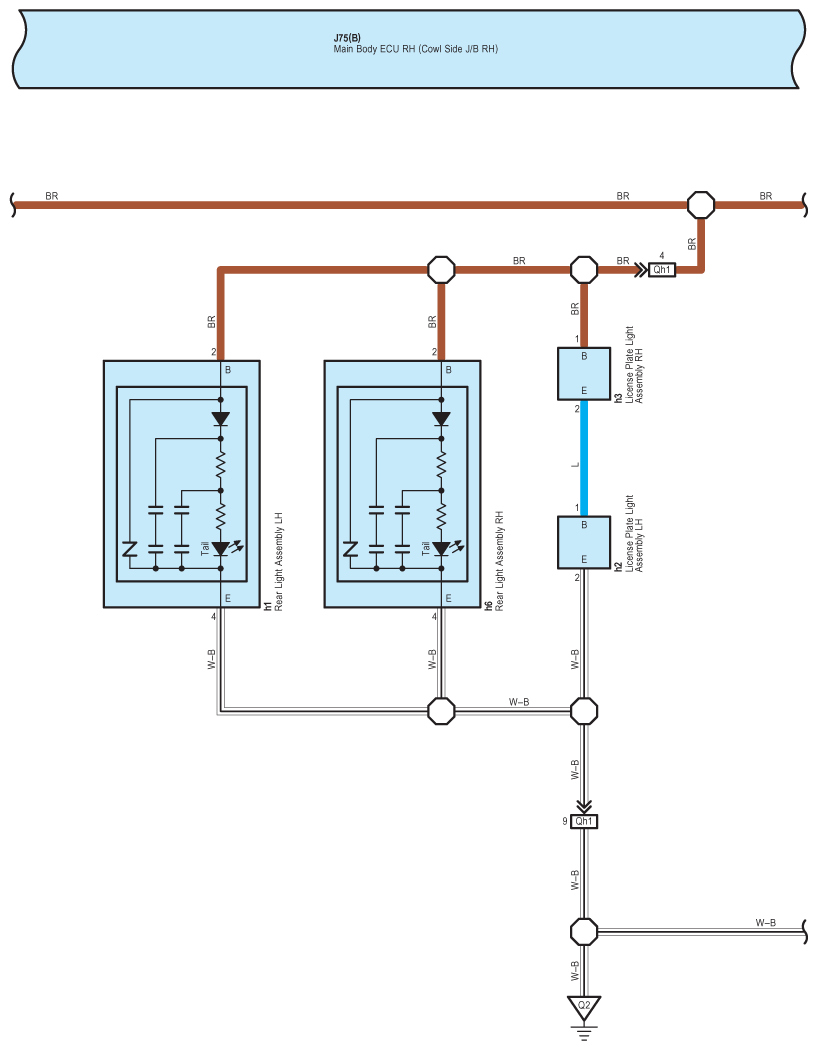

Fig 2: Taillight Wiring Diagram (2 Of 8)

G09121196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

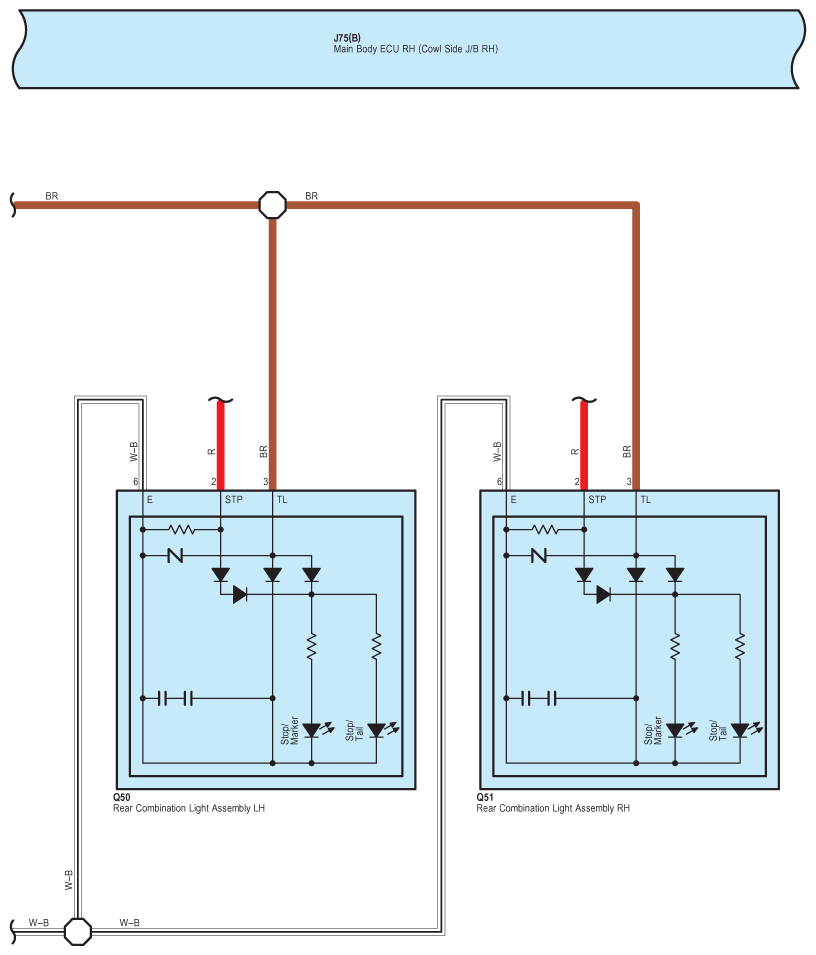

Fig 3: Taillight Wiring Diagram (3 Of 8)

G09121197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

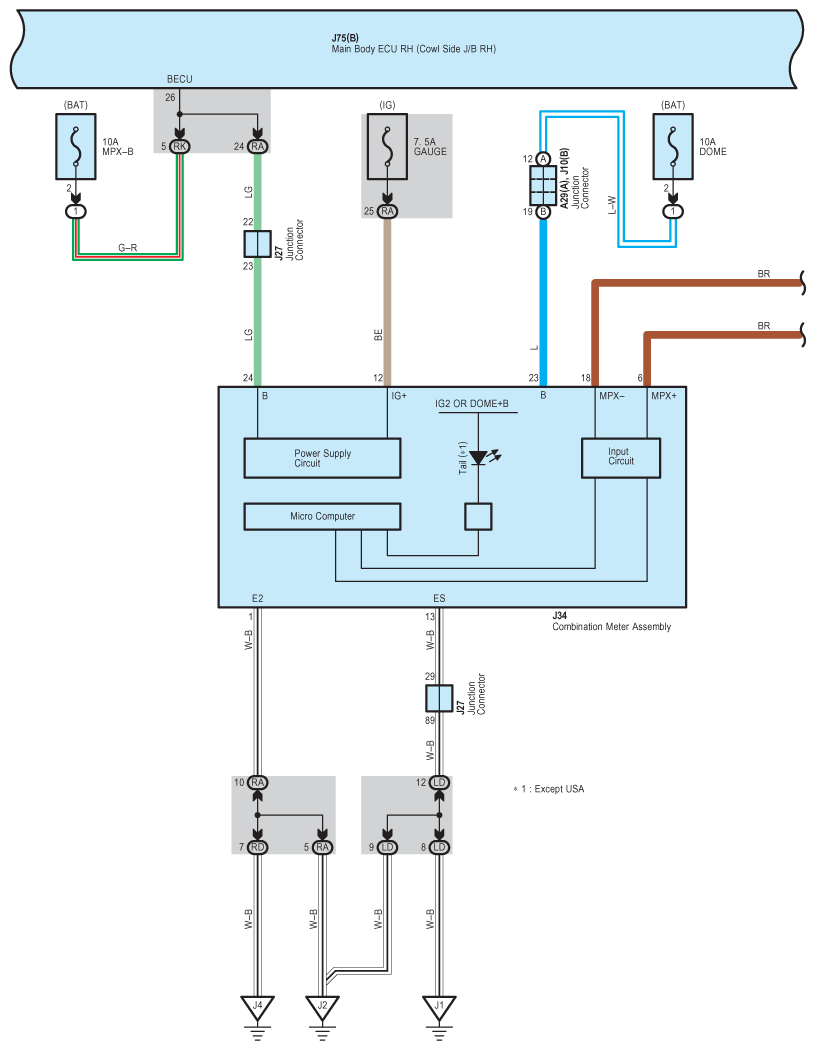

Fig 4: Taillight Wiring Diagram (4 Of 8)

G09121198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

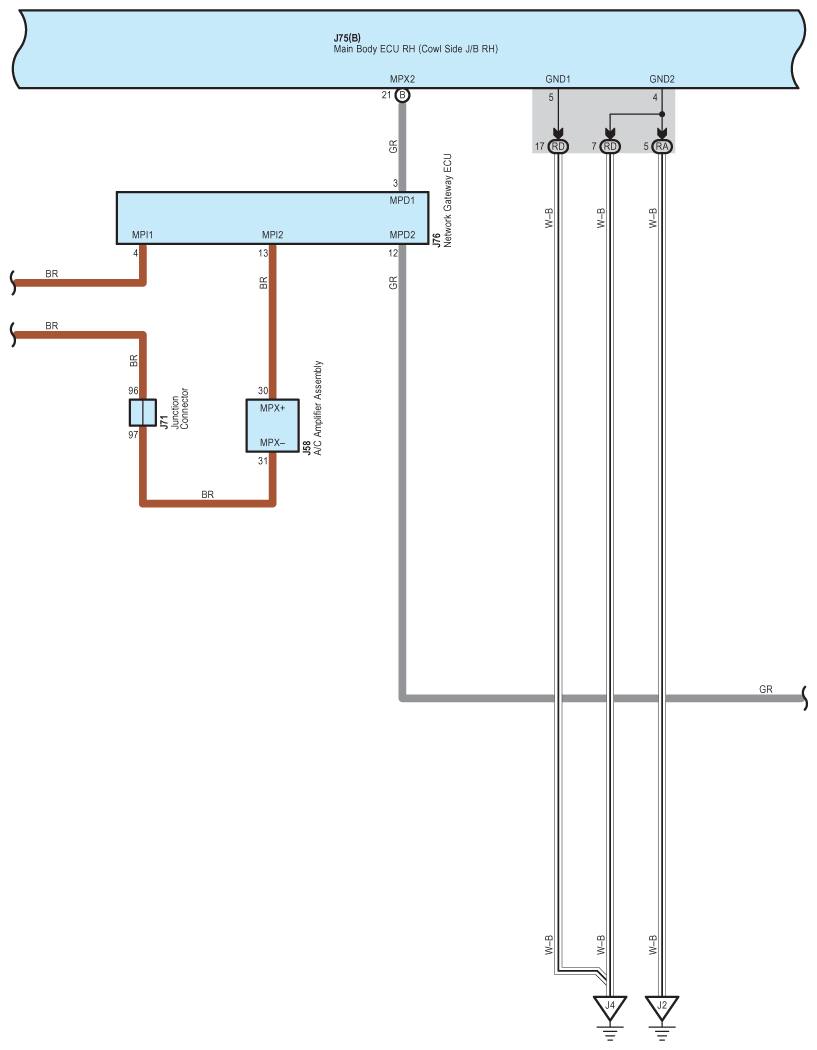

Fig 5: Taillight Wiring Diagram (5 Of 8)

G09121199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

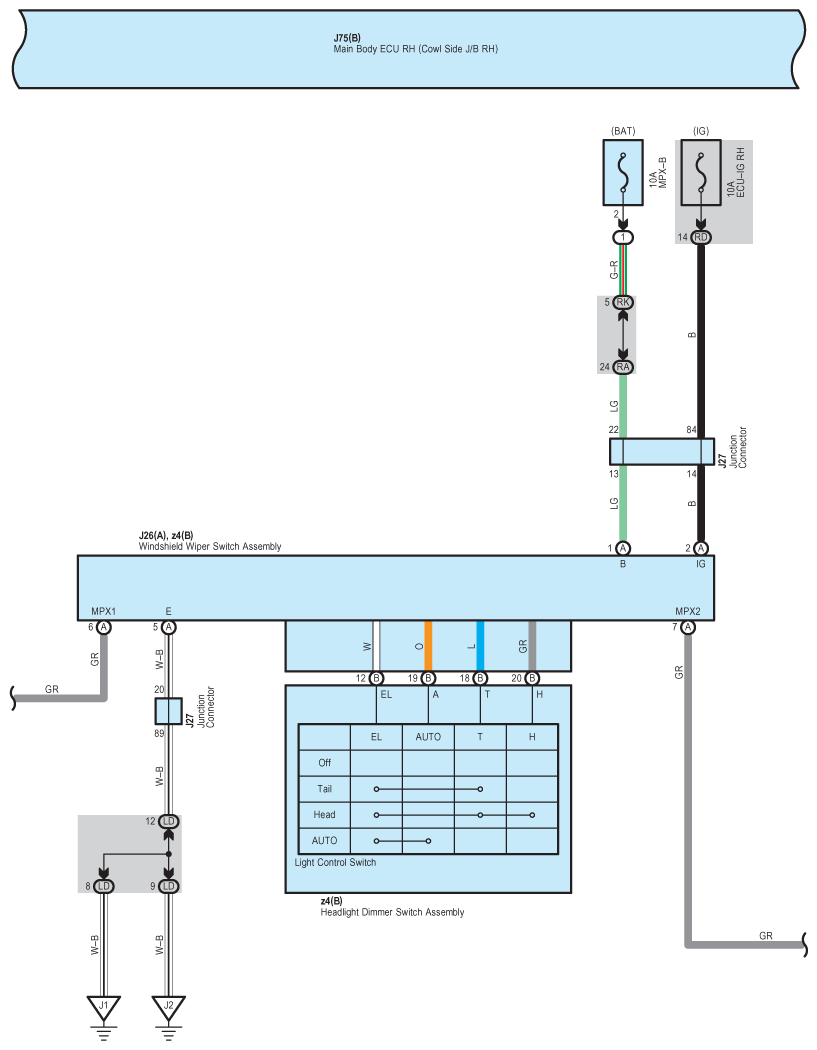

Fig 6: Taillight Wiring Diagram (6 Of 8)

G09121200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

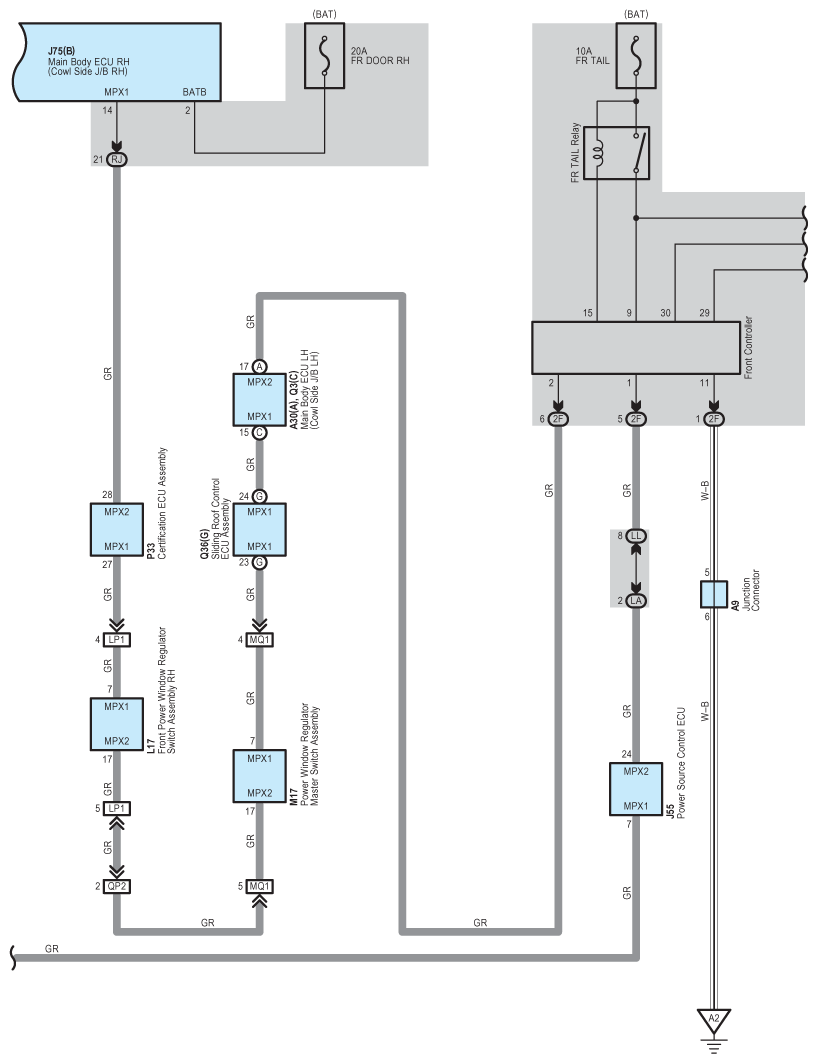

Fig 7: Taillight Wiring Diagram (7 Of 8)

G09121201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Taillight Wiring Diagram (8 Of 8)

G09121202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
