Headlight Cleaner: Notes

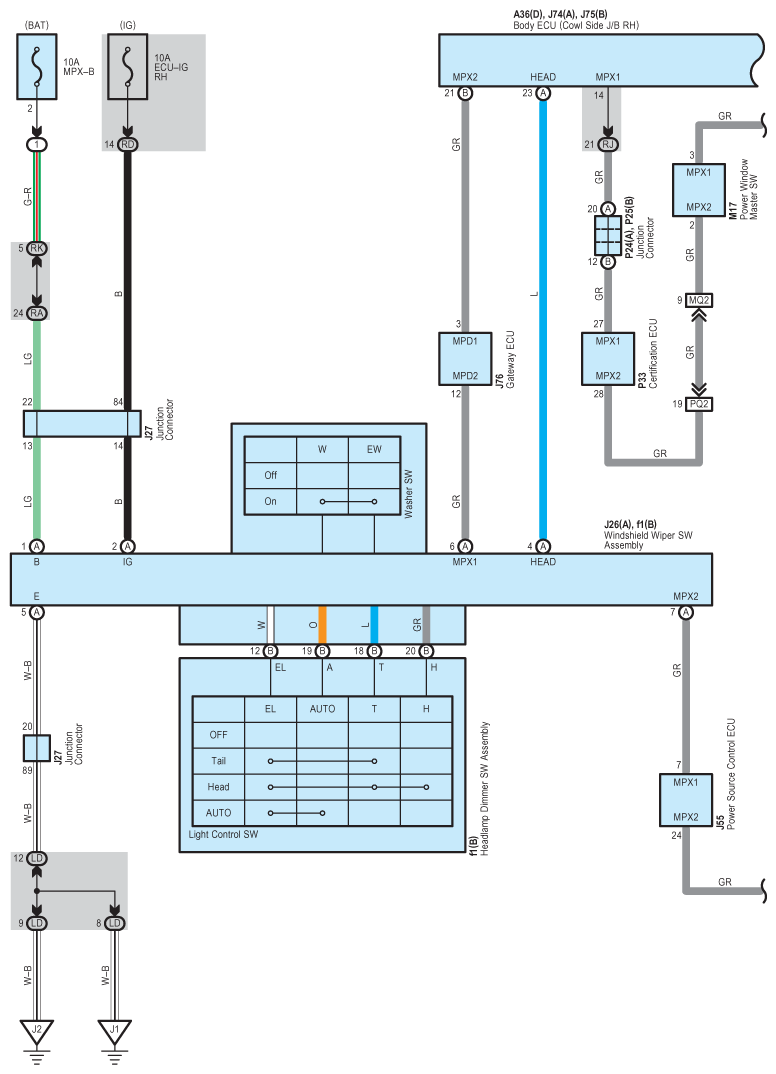

Fig 1: Headlight Cleaner System Wiring Diagram (1 Of 2)
G09119073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

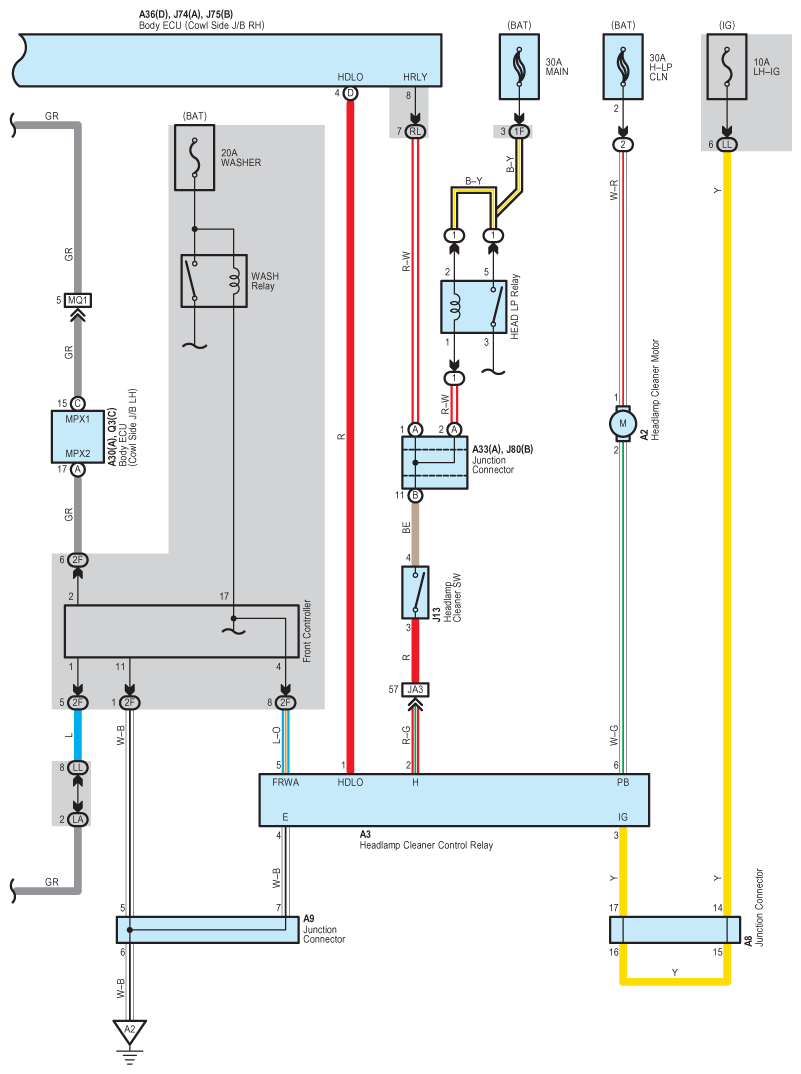

Fig 2: Headlight Cleaner System Wiring Diagram (2 Of 2)
G09119074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
