Rear Sunshade: Notes

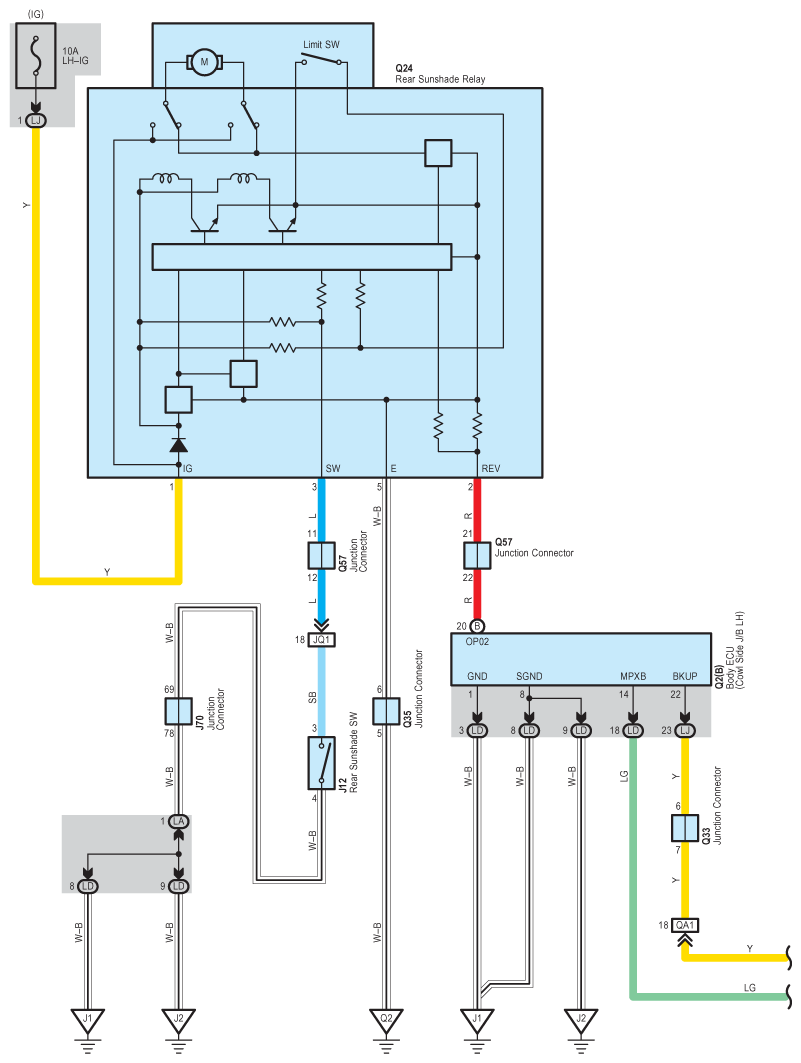

Fig 1: Rear Sunshade System Wiring Diagram (1 Of 2)
G09119182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Sunshade System Wiring Diagram (2 Of 2)
G09119183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
