OEM System Circuits: Charging: Notes

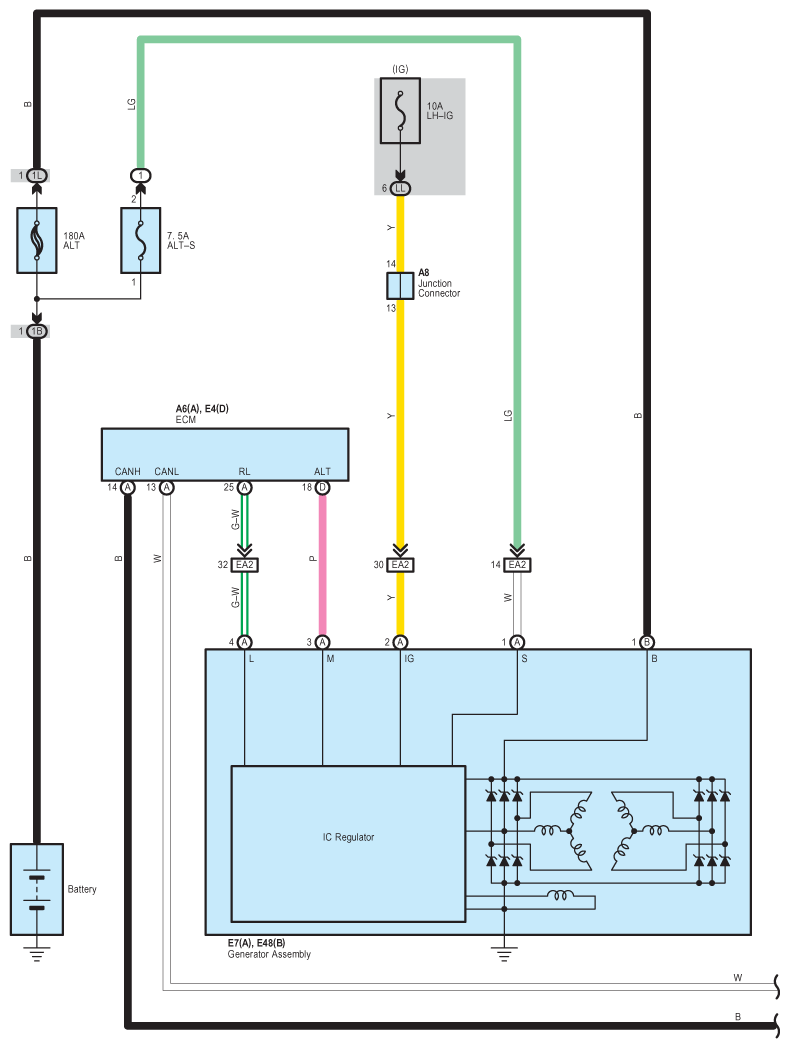

Fig 1: Charging System Wiring Diagram (1 Of 2)
G09122135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

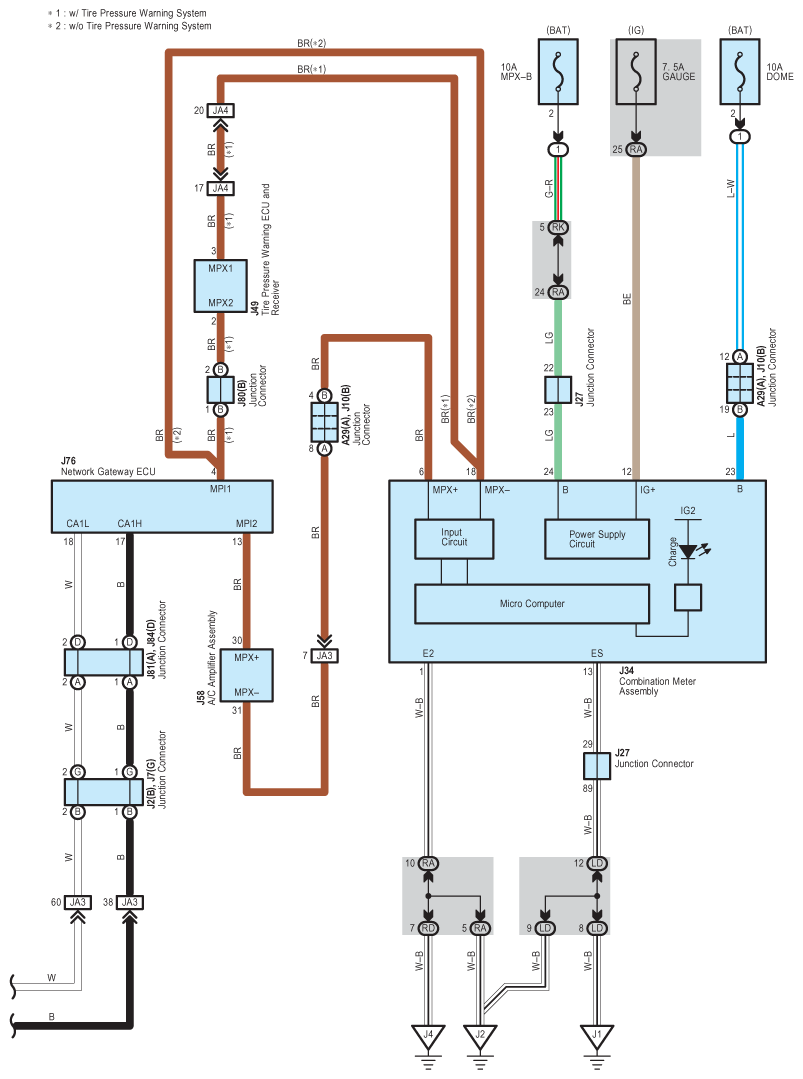

Fig 2: Charging System Wiring Diagram (2 Of 2)
G09122136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
