LEXUS ENFORM or Safety Connect
>>
Notes
LEXUS ENFORM or Safety Connect: Notes

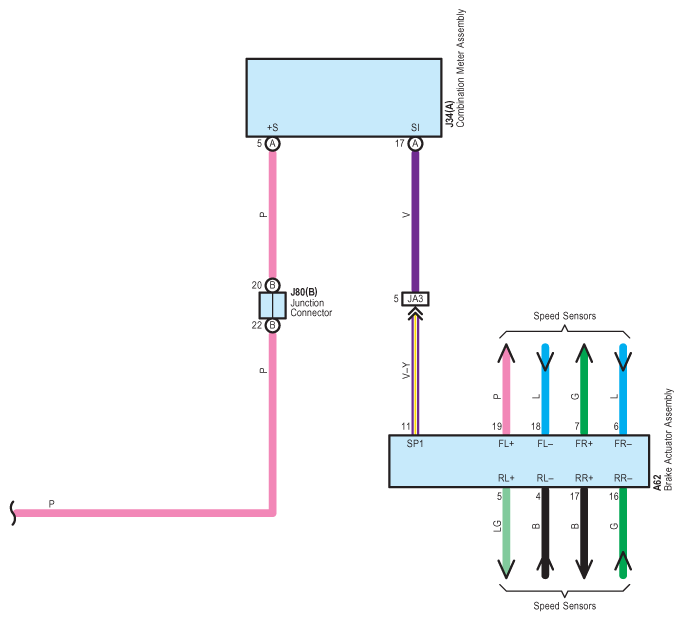

Fig 1: LEXUS Enform Or Safety Connect System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

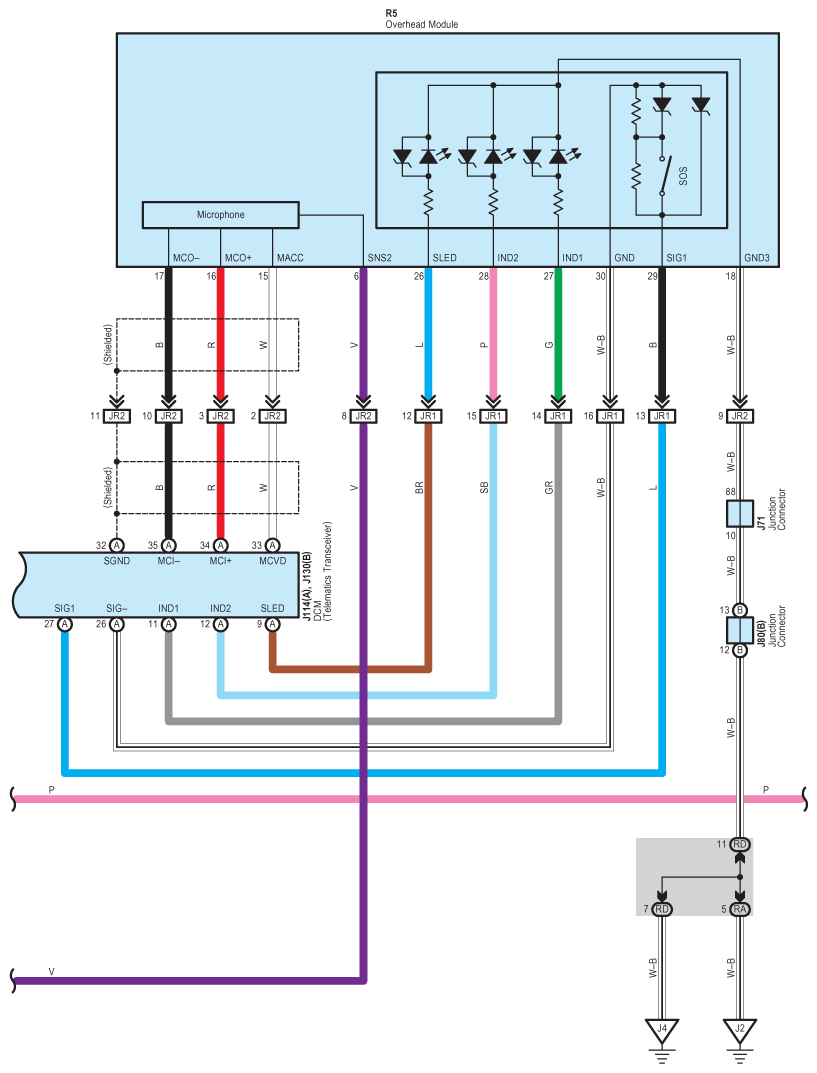

Fig 2: LEXUS Enform Or Safety Connect System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

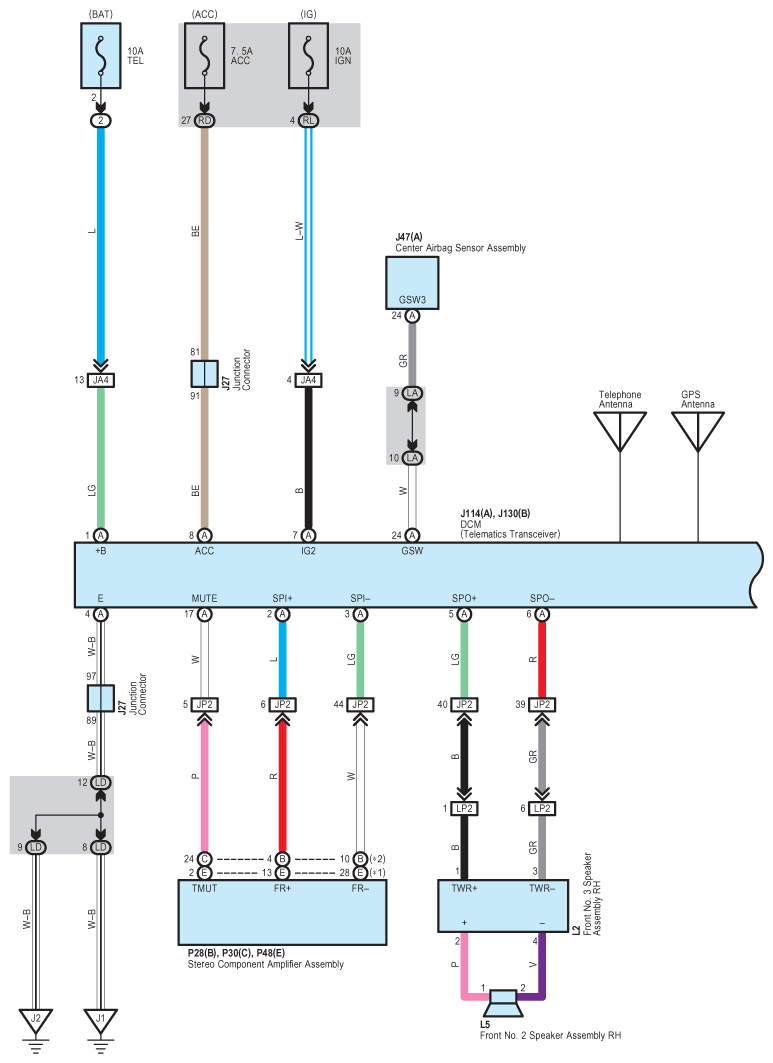

Fig 3: LEXUS Enform Or Safety Connect System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

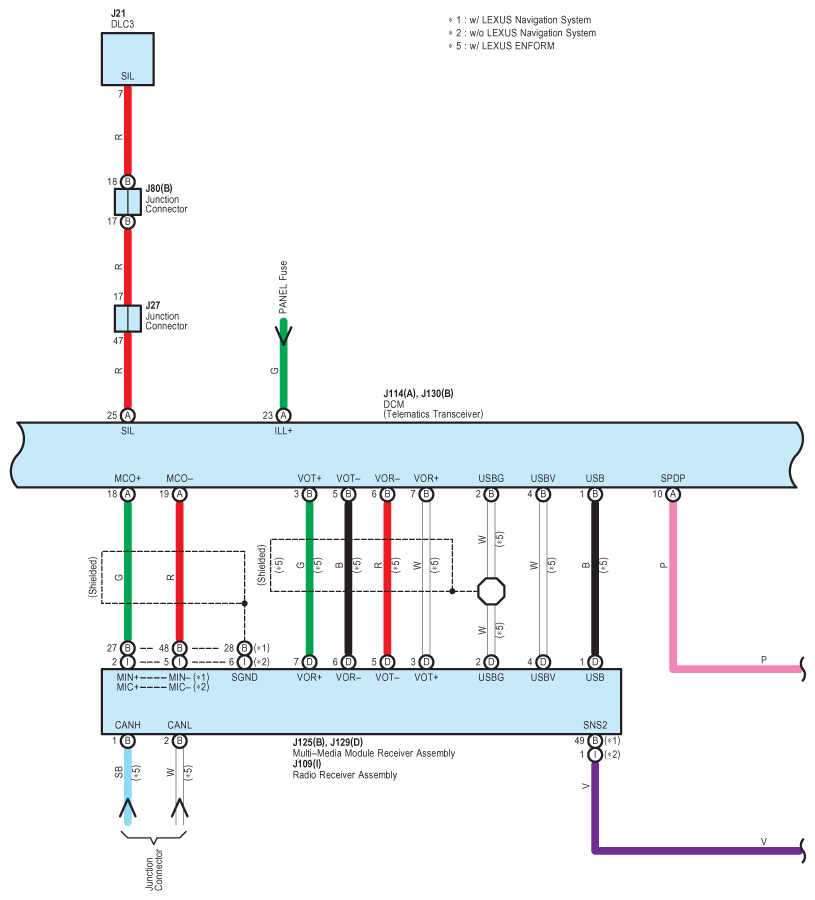

Fig 4: LEXUS Enform Or Safety Connect System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
