Home >> Lexus >> 2013 >> LS 600hL >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

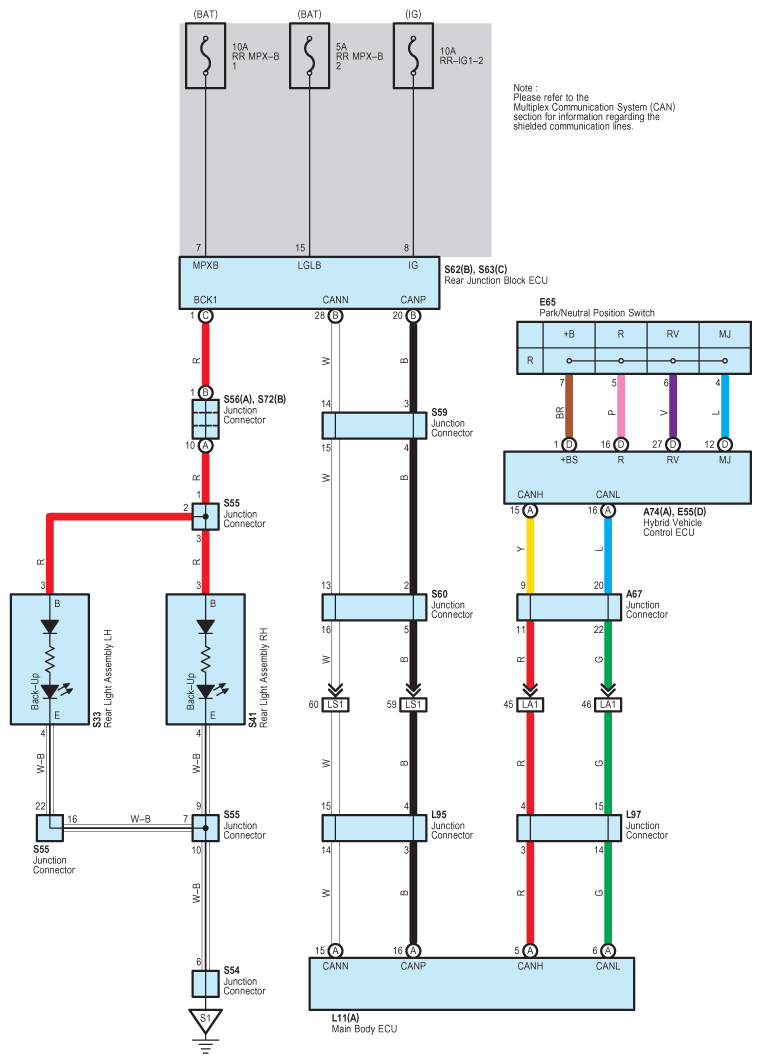

Fig 1: Back-Up Light System Wiring Diagram
G09123225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
