OEM System Circuits: EPS: Notes

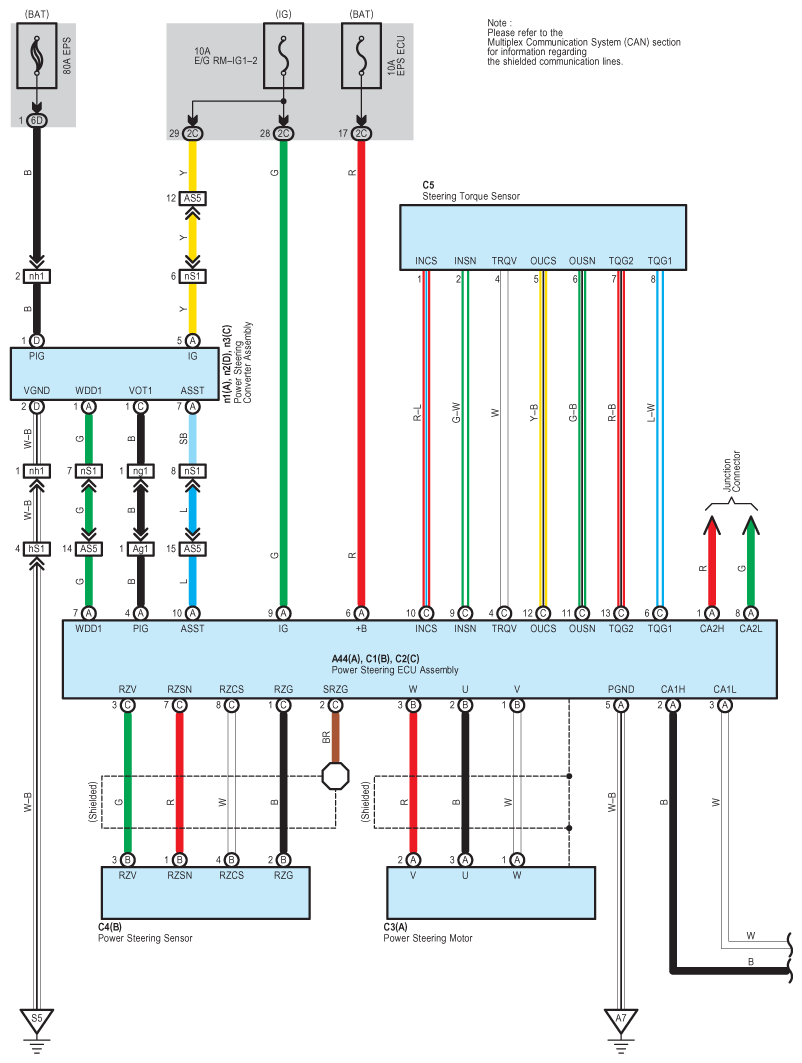

Fig 1: EPS System Wiring Diagram (1 Of 4)
G09123356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

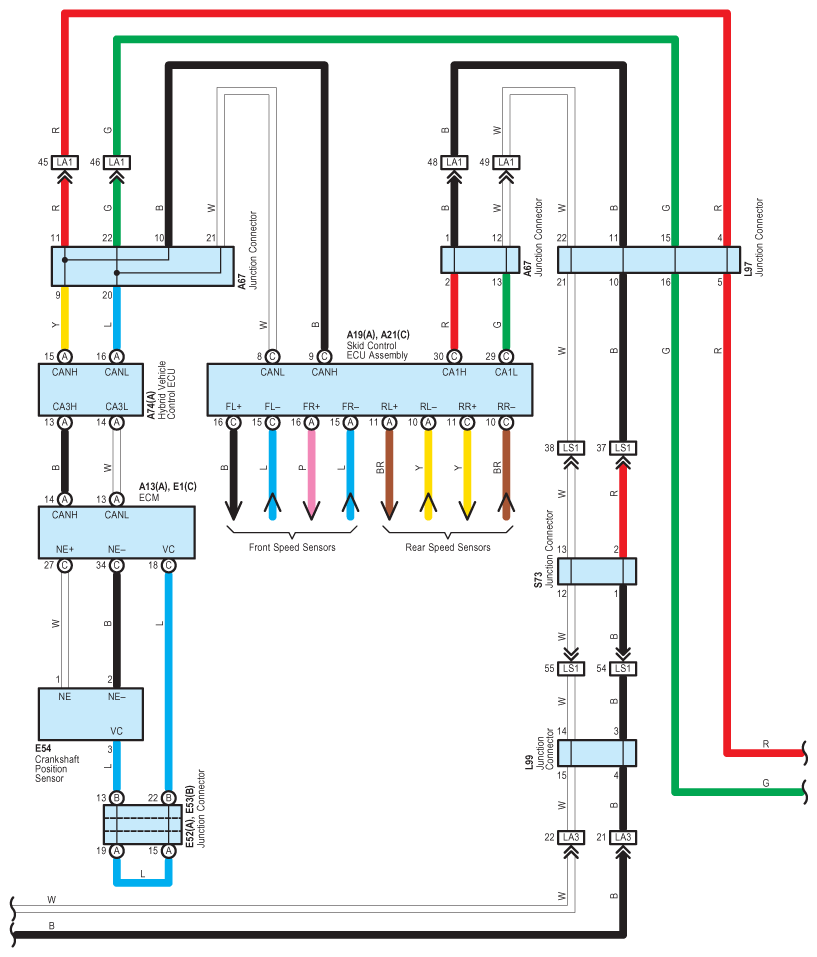

Fig 2: EPS System Wiring Diagram (2 Of 4)
G09123357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

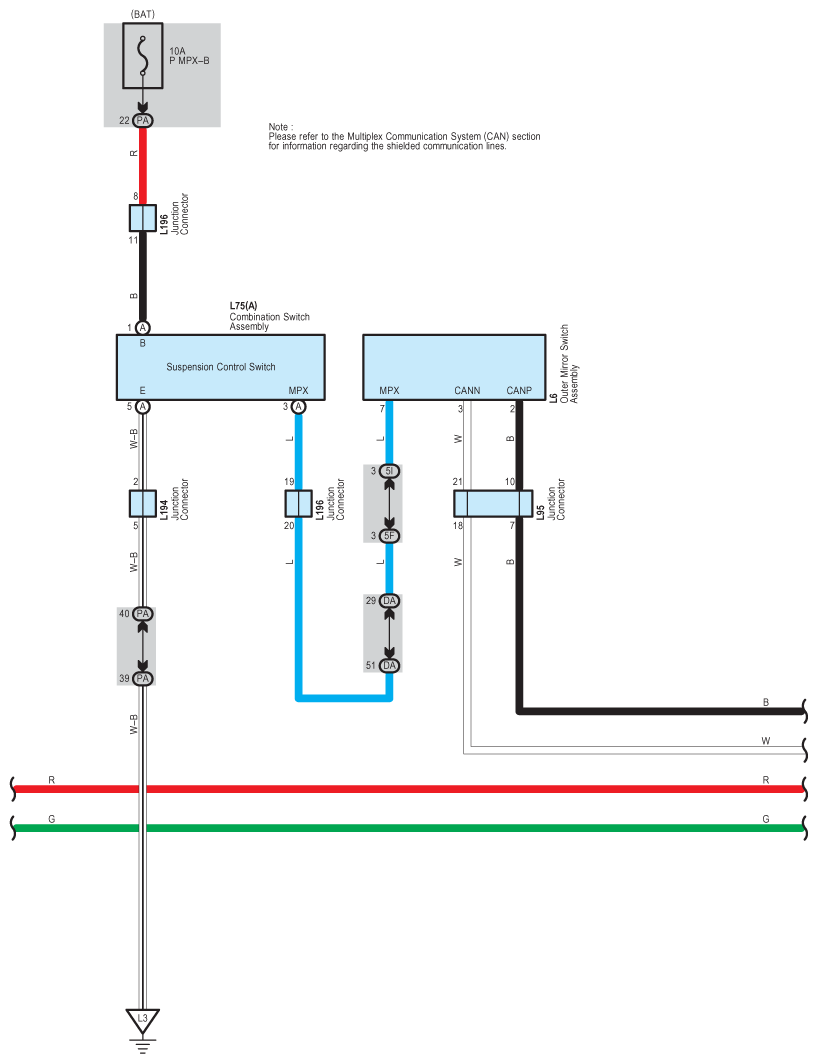

Fig 3: EPS System Wiring Diagram (3 Of 4)
G09123358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: EPS System Wiring Diagram (4 Of 4)
G09123359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
