LEXUS ENFORM: Notes

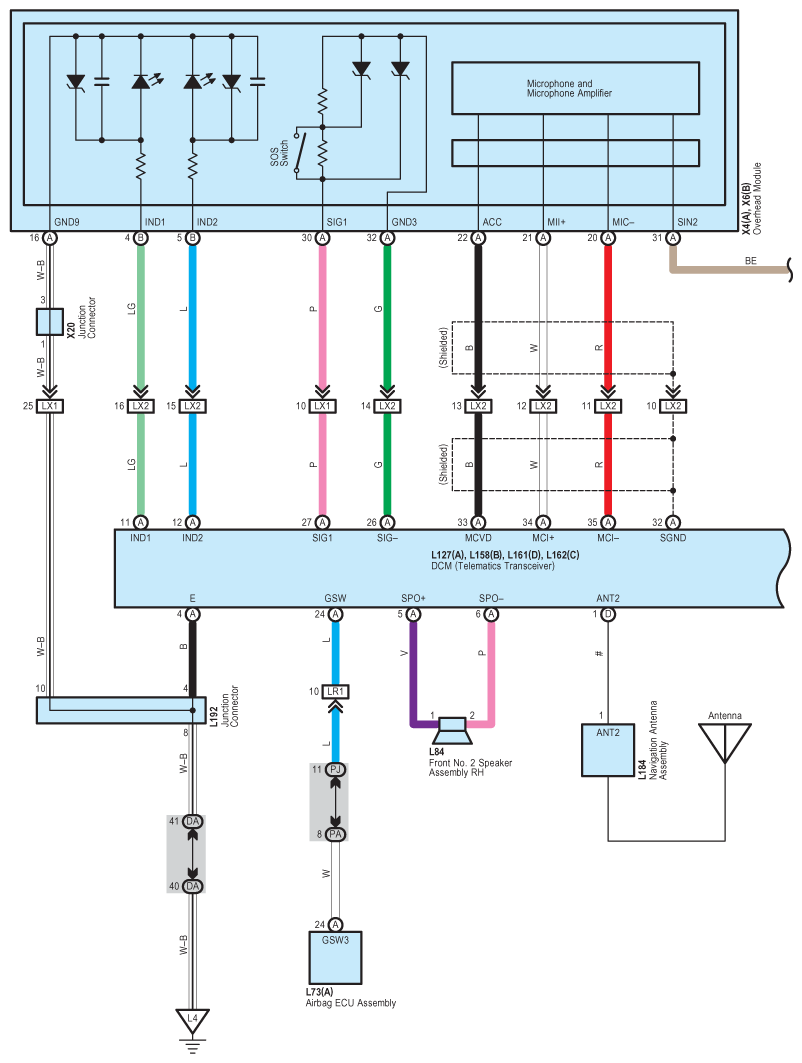

Fig 1: Lexus Enform System Wiring Diagram (1 Of 4)
G09123515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

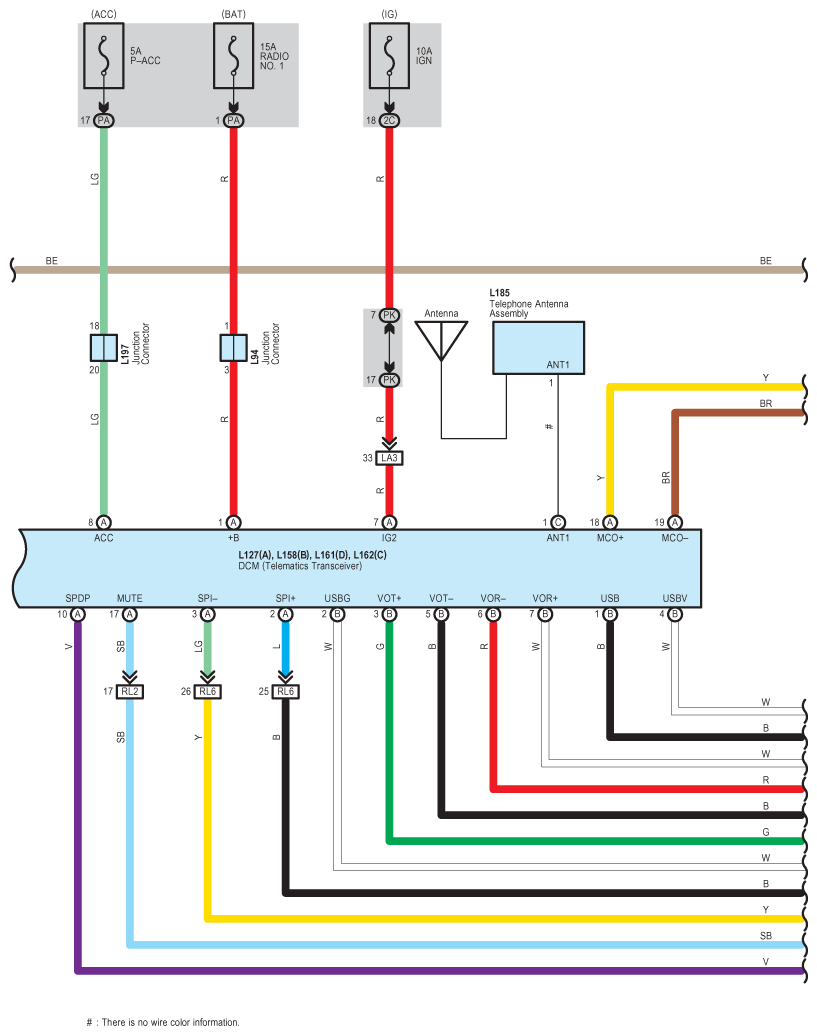

Fig 2: Lexus Enform System Wiring Diagram (2 Of 4)
G09123516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

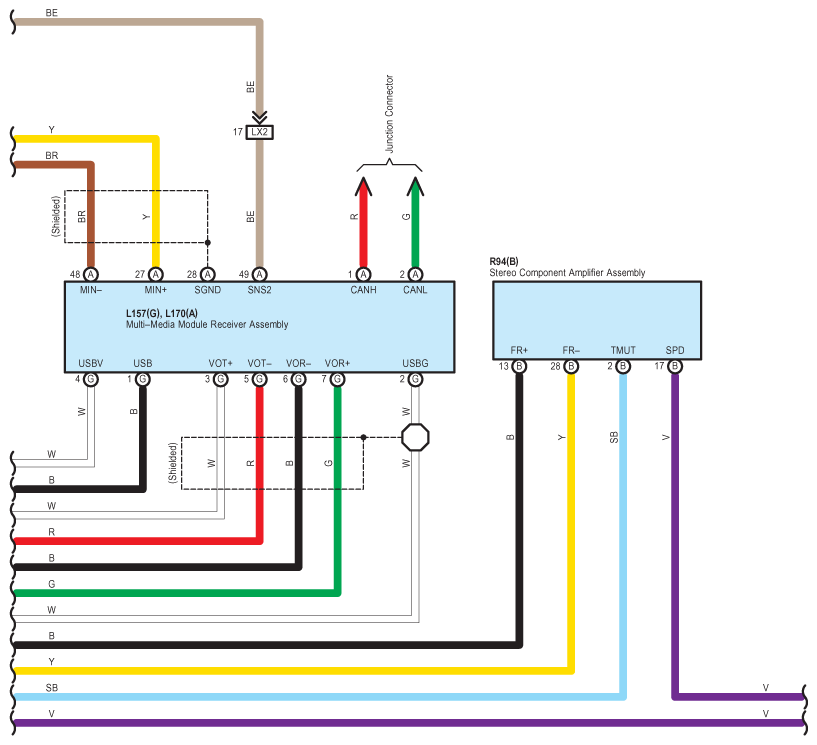

Fig 3: Lexus Enform System Wiring Diagram (3 Of 4)
G09123517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

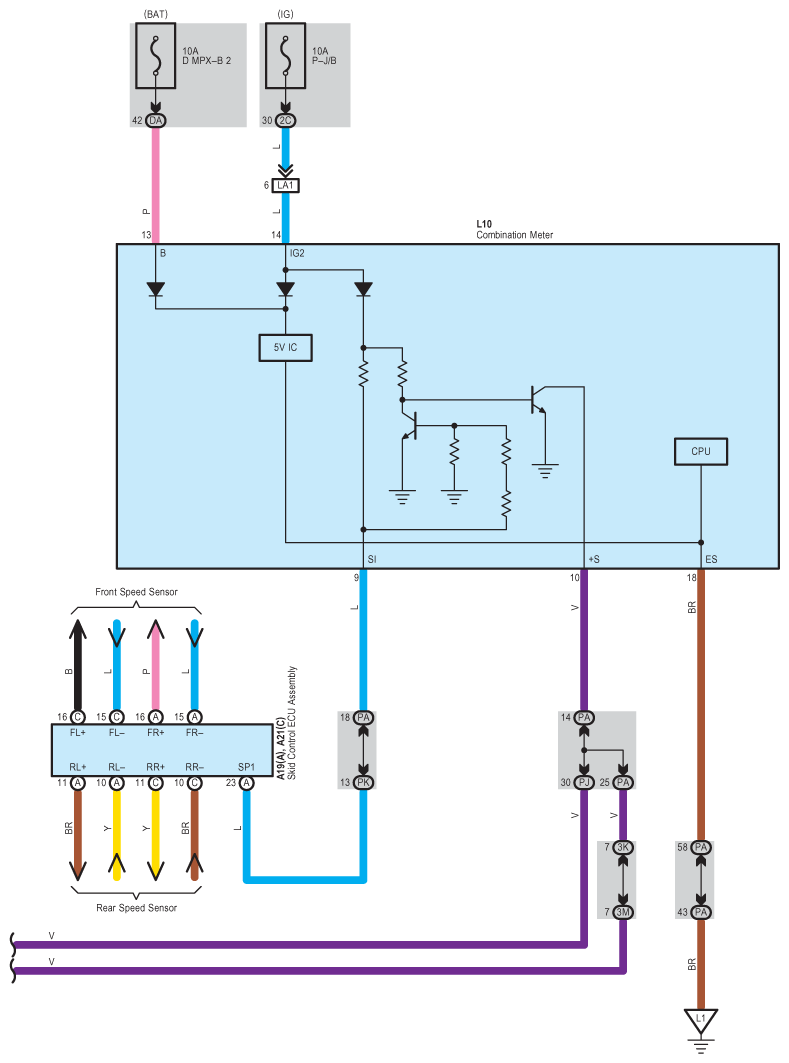

Fig 4: Lexus Enform System Wiring Diagram (4 Of 4)
G09123518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
