Multiplex Communication System (AVC-LAN): Notes

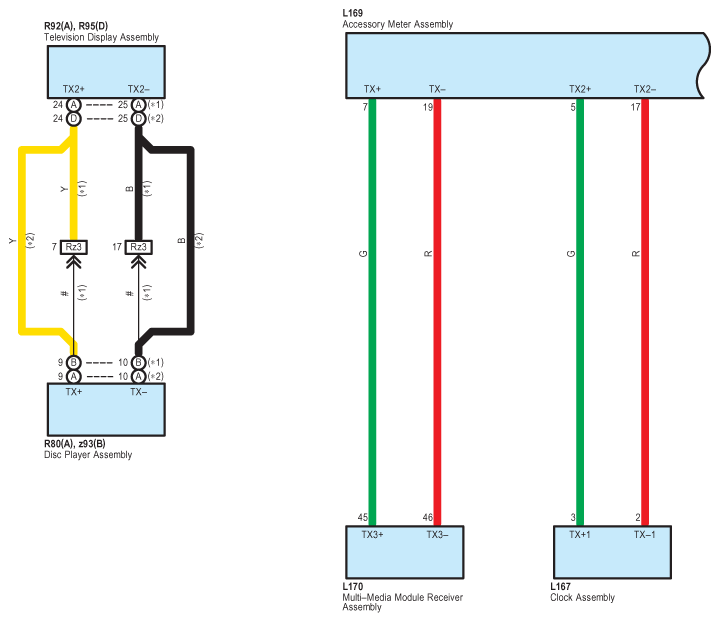

Fig 1: Multiplex Communication (AVC-LAN) System Wiring Diagram (1 Of 2)
G09123174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

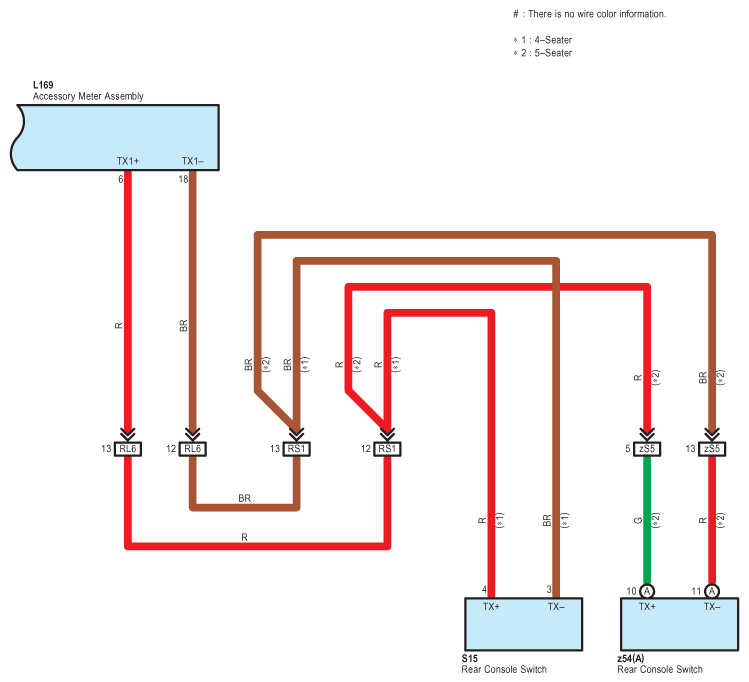

Fig 2: Multiplex Communication (AVC-LAN) System Wiring Diagram (2 Of 2)
G09123175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
