Rear Sunshade: Notes

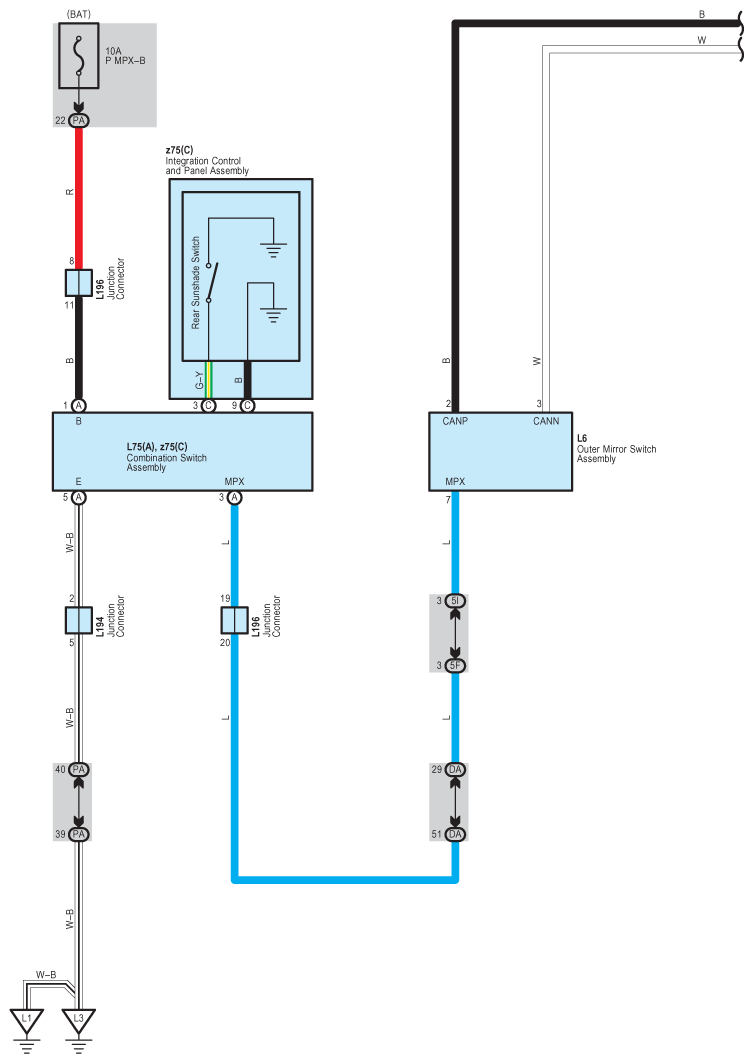

Fig 1: Rear Sunshade System Wiring Diagram (1 Of 4)
G09123402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Sunshade System Wiring Diagram (2 Of 4)
G09123403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

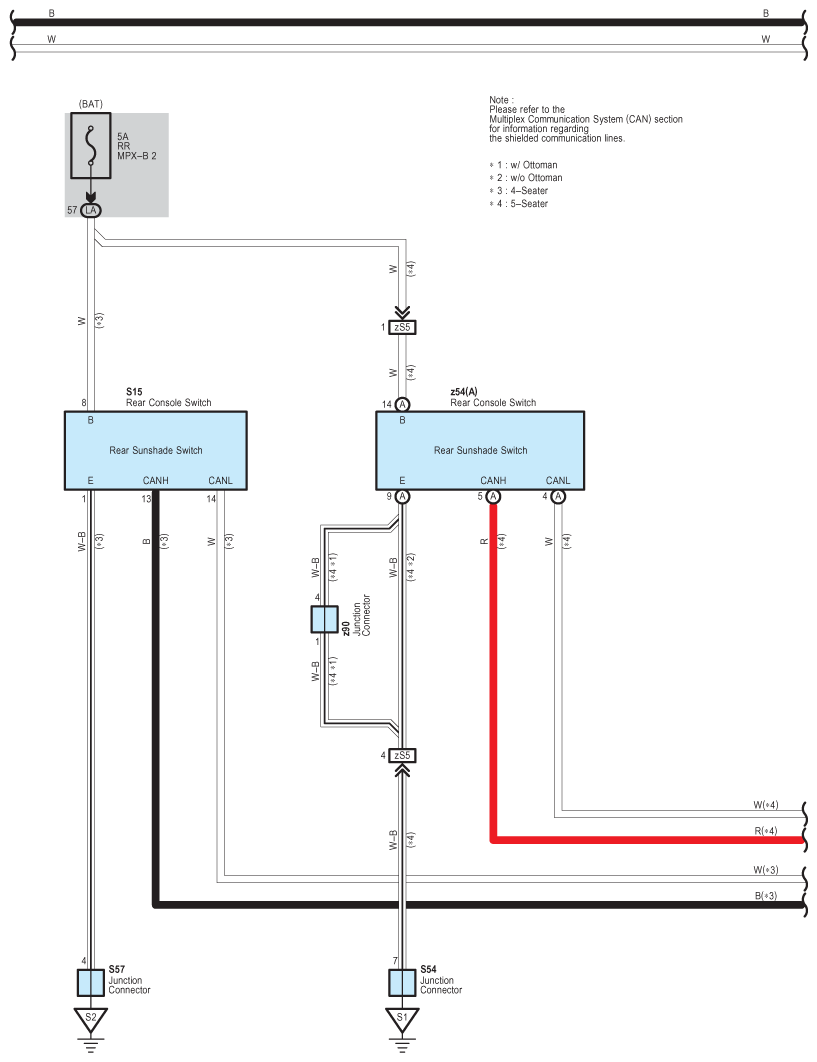

Fig 3: Rear Sunshade System Wiring Diagram (3 Of 4)
G09123404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

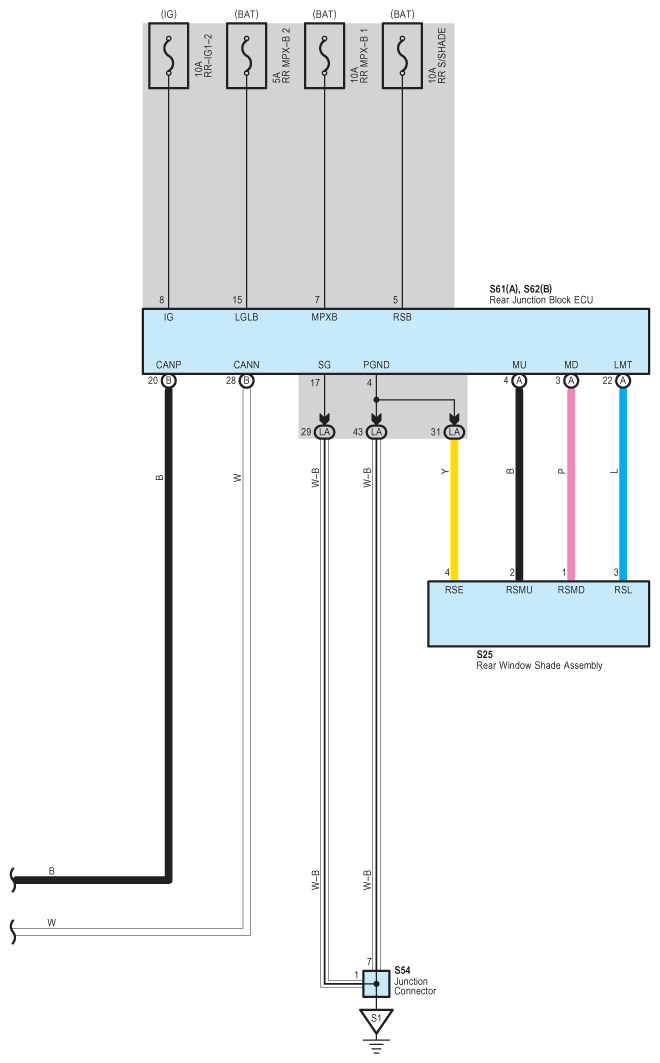

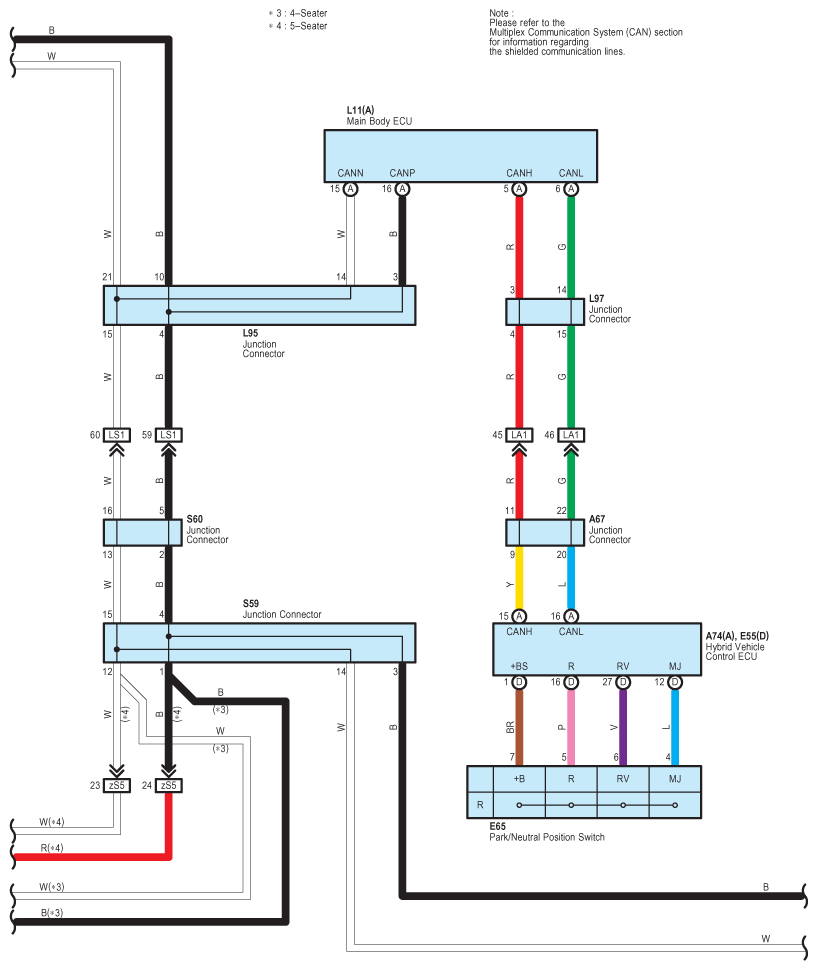

Fig 4: Rear Sunshade System Wiring Diagram (4 Of 4)
G09123405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
