Sliding Roof: Notes

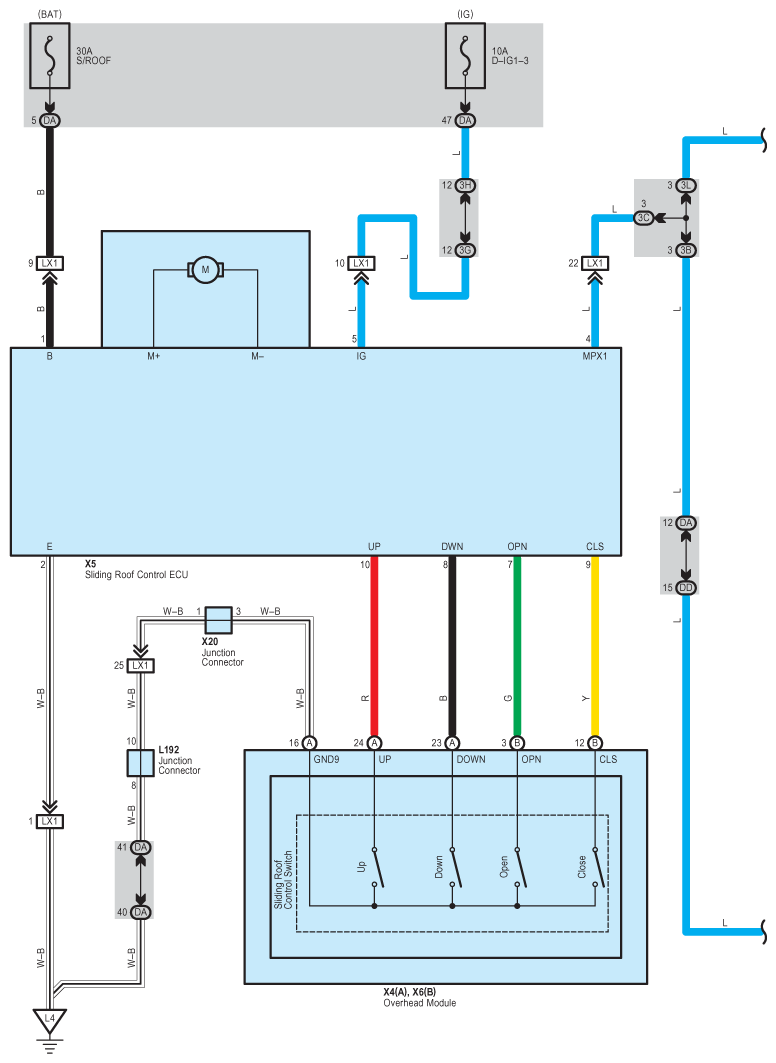

Fig 1: Sliding Roof System Wiring Diagram (1 Of 4)
G09123397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

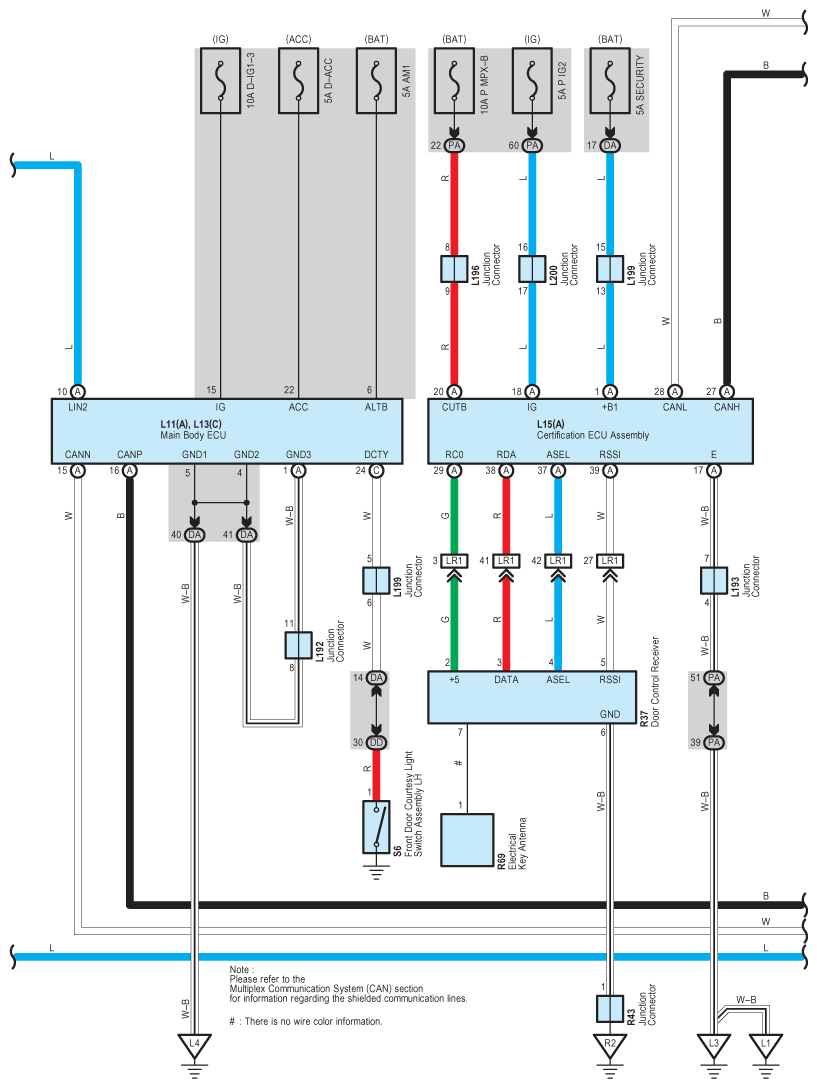

Fig 2: Sliding Roof System Wiring Diagram (2 Of 4)
G09123398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

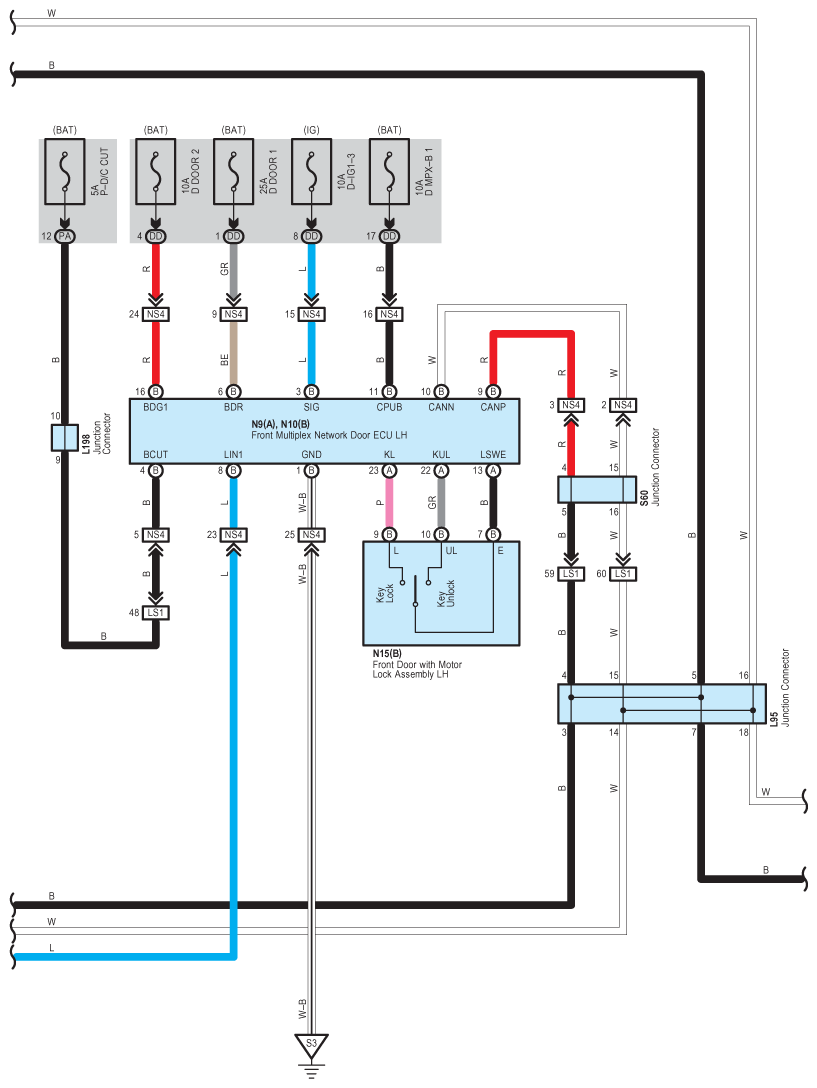

Fig 3: Sliding Roof System Wiring Diagram (3 Of 4)
G09123399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

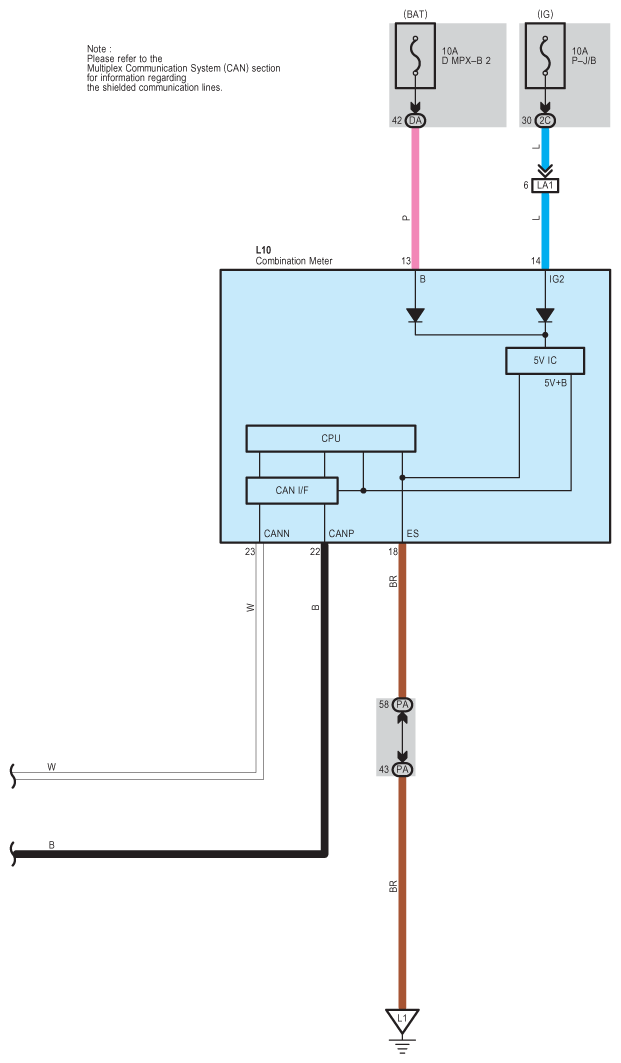

Fig 4: Sliding Roof System Wiring Diagram (4 Of 4)
G09123400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
