Home >> Lexus >> 2013 >> RX 350 Base, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Back-Up Light >> Notes

Back-Up Light: Notes

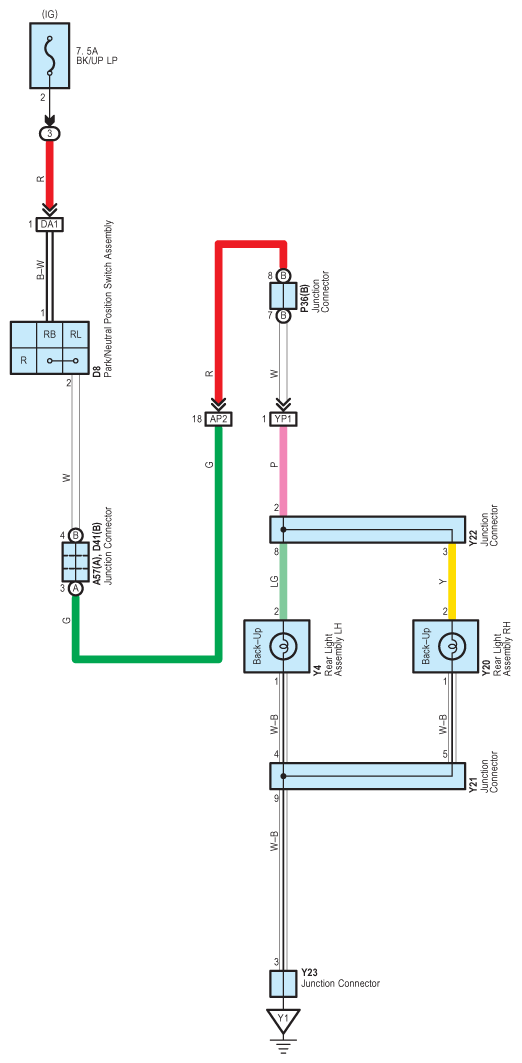

Fig 1: Back-Up Light System Wiring Diagram
G09126707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
