Climate Control Seat: Notes

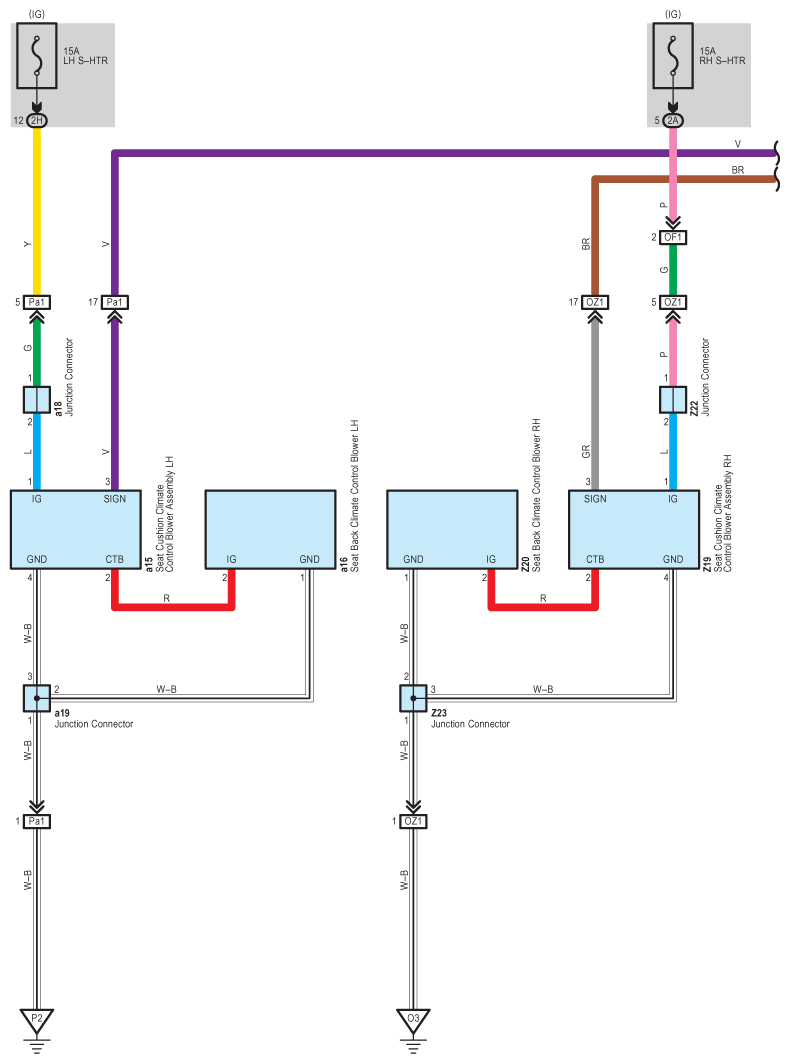

Fig 1: Climate Control Seat System Wiring Diagram (1 Of 4)
G09126872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

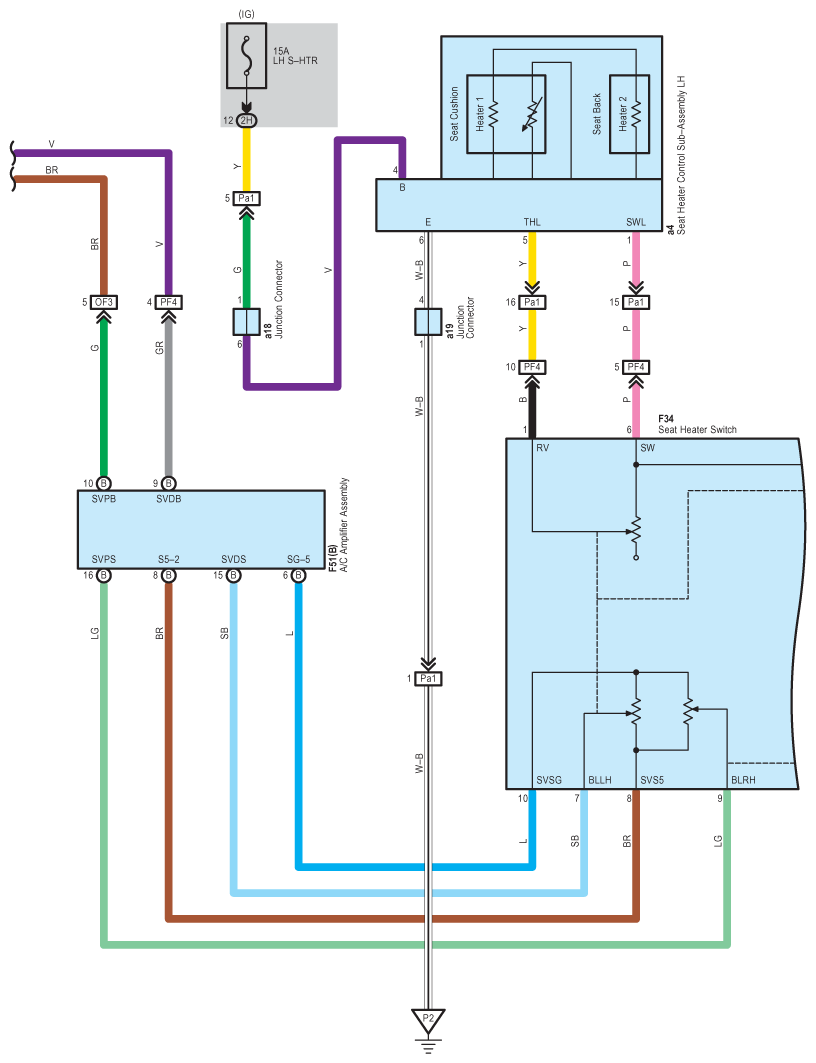

Fig 2: Climate Control Seat System Wiring Diagram (2 Of 4)
G09126873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

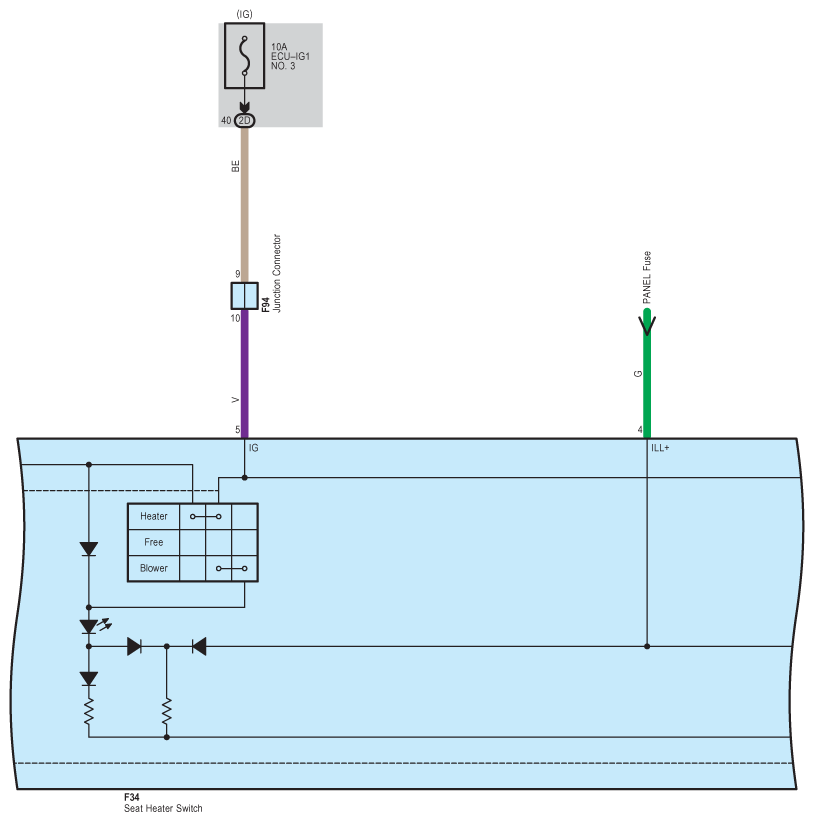

Fig 3: Climate Control Seat System Wiring Diagram (3 Of 4)
G09126874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

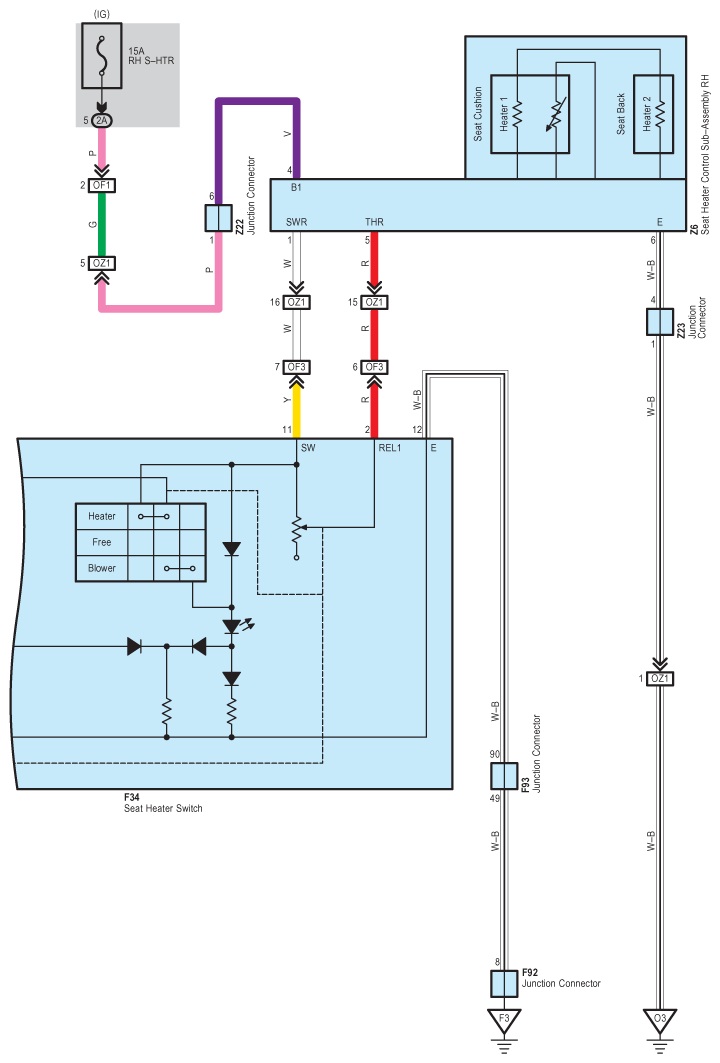

Fig 4: Climate Control Seat System Wiring Diagram (4 Of 4)
G09126875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
