Headlight Beam Level Control: Notes

Fig 1: Headlight Beam Level Control System Wiring Diagram (1 Of 4)
G09126832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

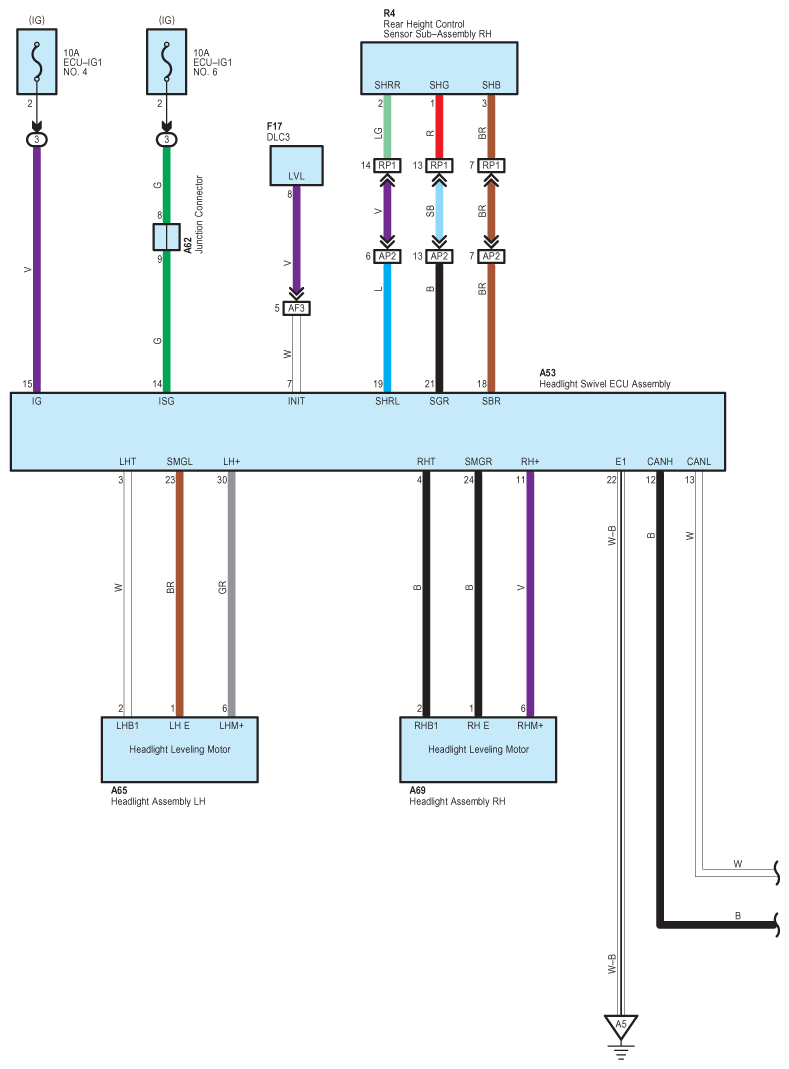

Fig 2: Headlight Beam Level Control System Wiring Diagram (2 Of 4)
G09126833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

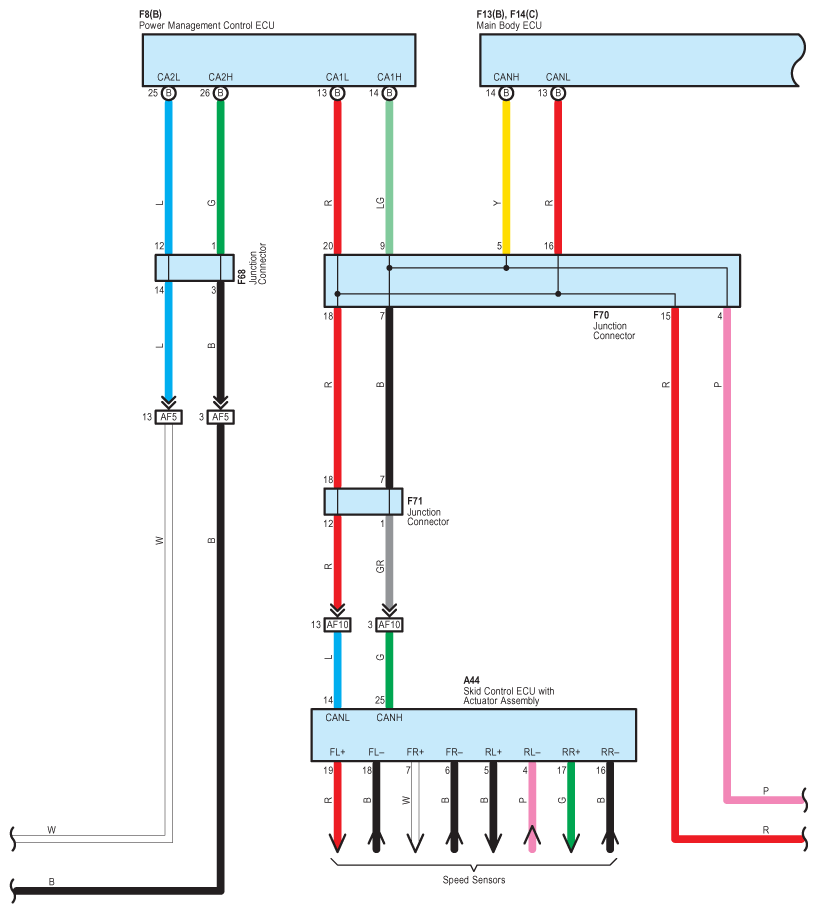

Fig 3: Headlight Beam Level Control System Wiring Diagram (3 Of 4)
G09126834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

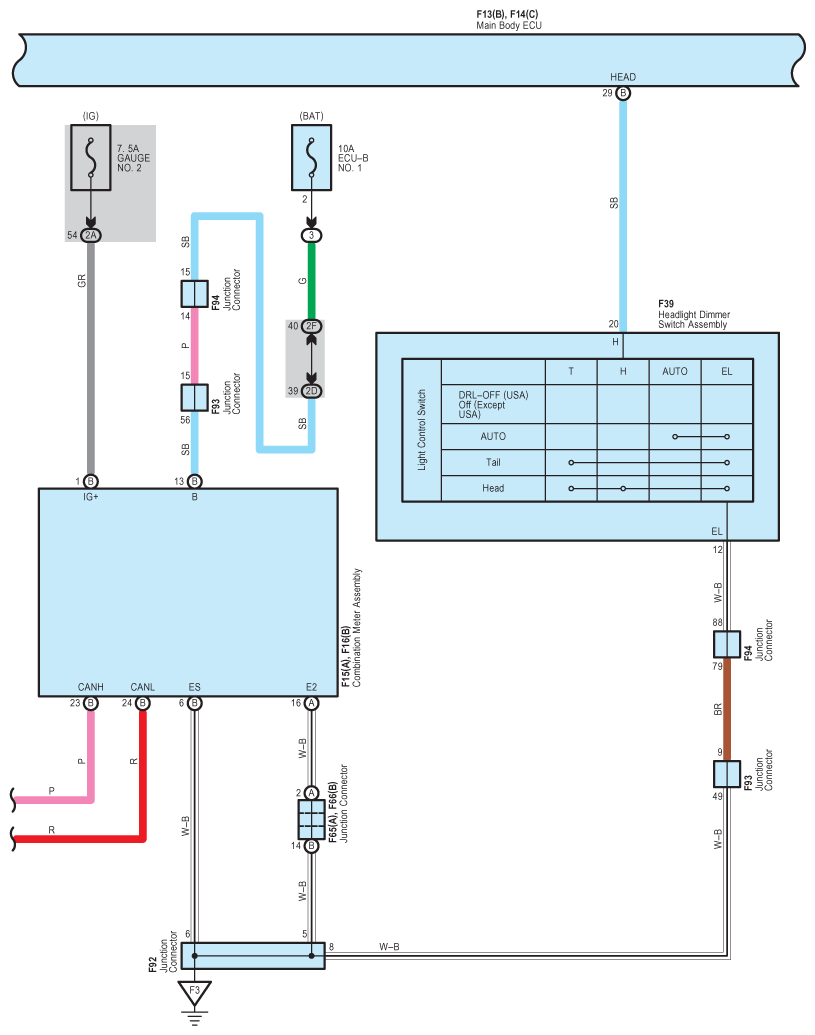

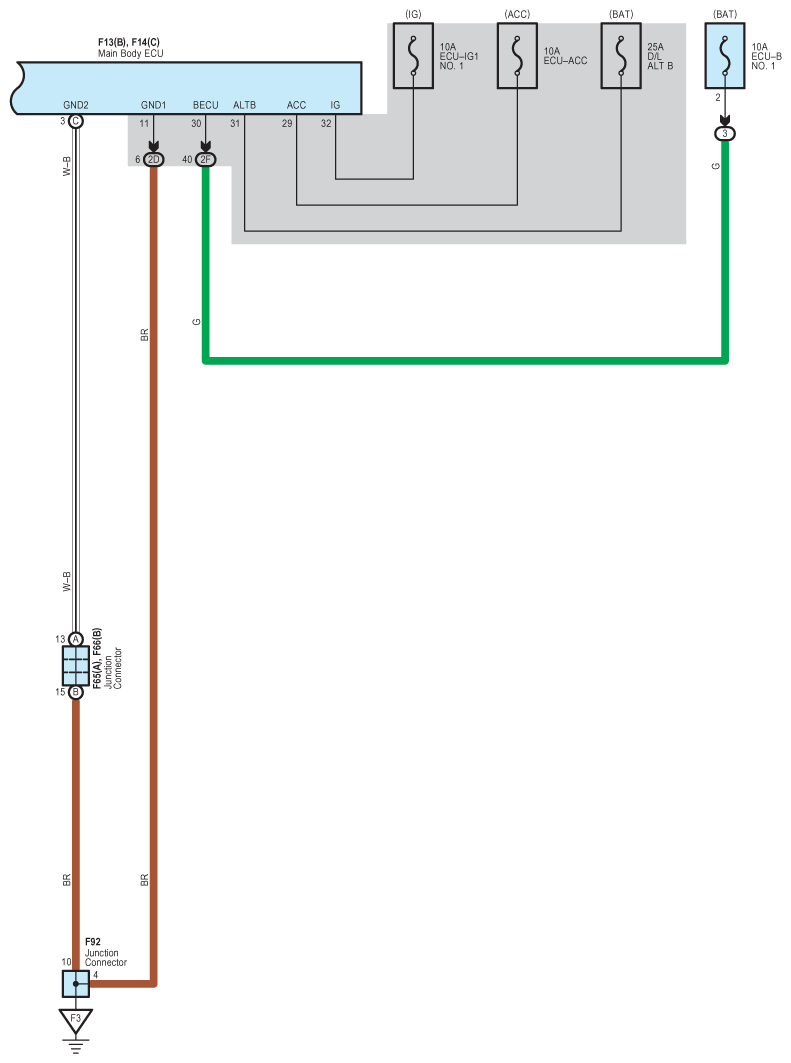

Fig 4: Headlight Beam Level Control System Wiring Diagram (4 Of 4)
G09126835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
