Home >> Lexus >> 2013 >> RX 350 Base, FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Multiplex Communication System (LIN) >> Notes

Multiplex Communication System (LIN): Notes

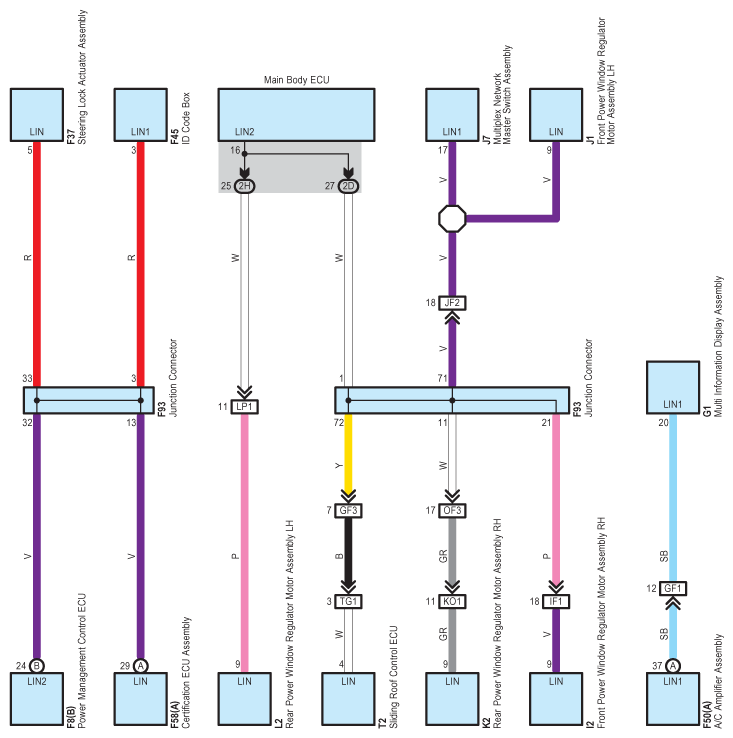

Fig 1: Multiplex Communication System (LIN) System Wiring Diagram

G09126667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
