ECA Power Relay

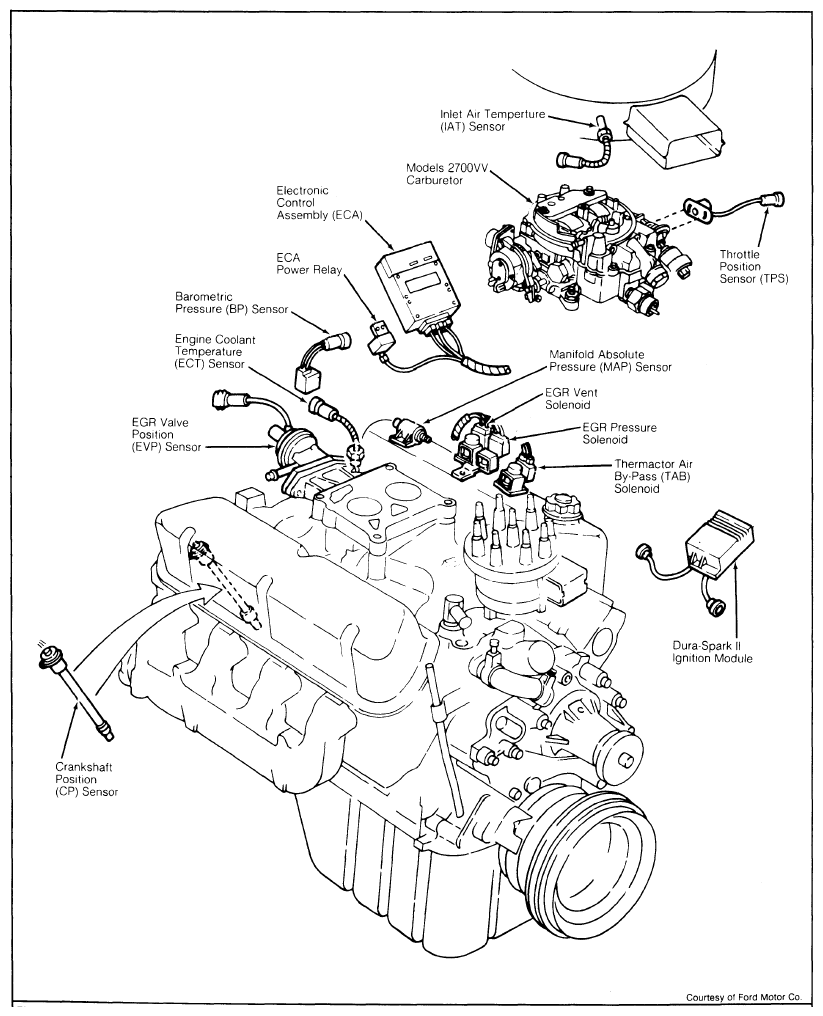

The ECA power relay supplies battery voltage to the EEC I system, and protects the ECA from possible damage due to reversed voltage polarity. Power relay is mounted to lower, right side of the ECA bracket. See Figure.
The ECA power relay supplies battery voltage to the EEC I system, and protects the ECA from possible damage due to reversed voltage polarity. Power relay is mounted to lower, right side of the ECA bracket. See Figure.
