Power Relay

Activated by the ignition switch to supply battery voltage to the EEC. Attached to the lower right side of the ECA mounting bracket. Also protects ECA from possible damage due to reversed voltage polarity.

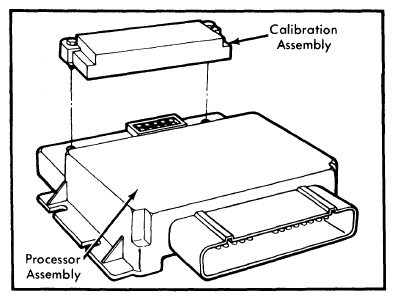

Fig 1: EEC Electronic Control Assembly (ECA)
G09339806Courtesy of FORD MOTOR CO.
