Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Controller | In rear of trunk, on seat back brace. |
| A/C Blower Motor Speed Controller | On center of evaporator case. |
| Air Suspension Control Module | On left trunk hinge support. |
| Anti-Theft Controller | In trunk, under right side of rear package tray. |
| Autolamp/Auto Dimmer Control | On instrument panel, to right of headlight switch. |
| Electronic Control Assembly (ECA) | Next to brake pedal support bracket. |
| Illuminated Entry Module | In trunk, under rear package tray. |
| Keyless Entry Module | In trunk, under rear package tray. |
| Lamp-Out Warning Module | Behind instrument panel, near steering column. |

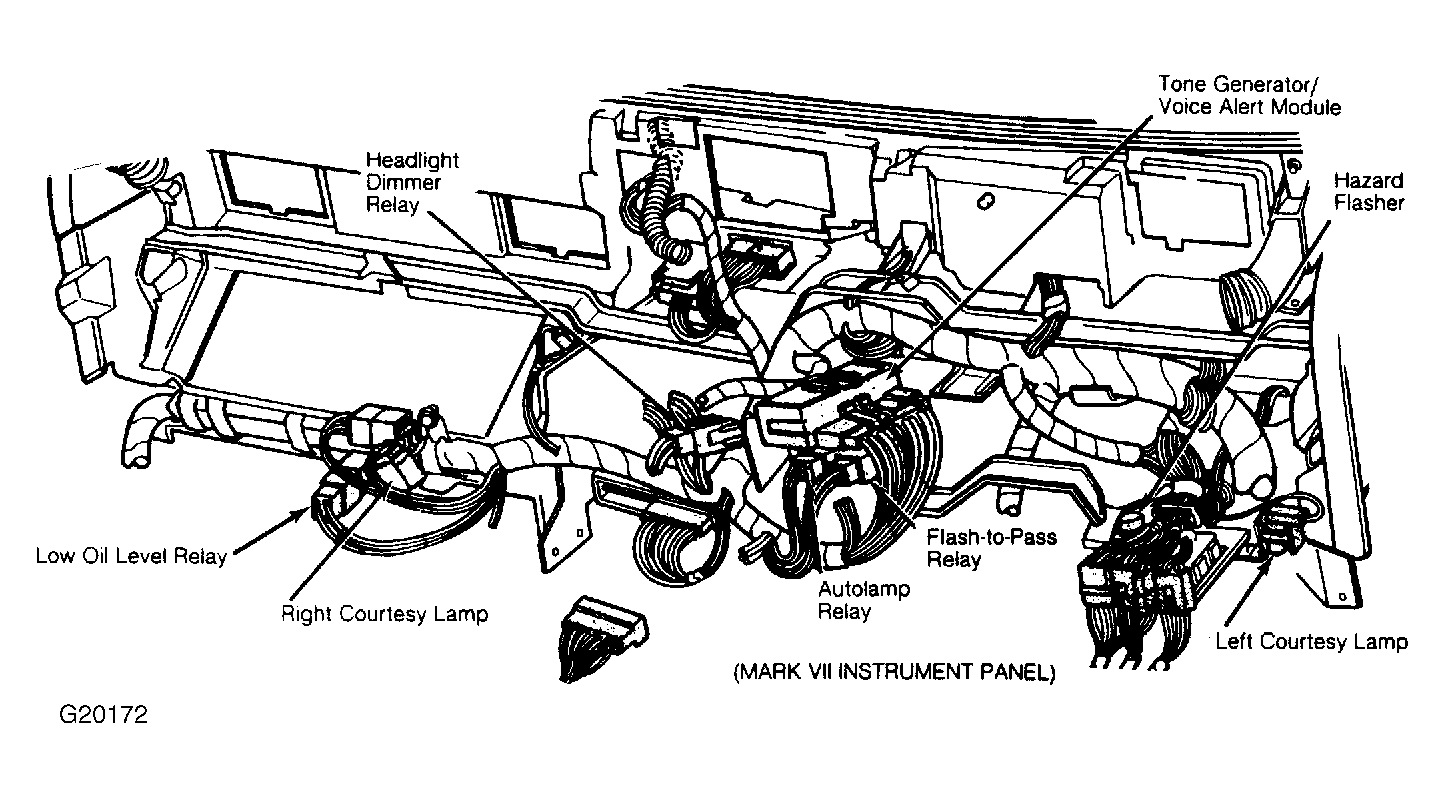

| Tone Generator/Voice Alert Module | Behind center of instrument panel. See Figure. |
| Warning Indicator Modules | At center of instrument panel. |
