Home >> Lincoln >> 1987 >> Mark VII Base >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Service Point Locations

Service Point Locations

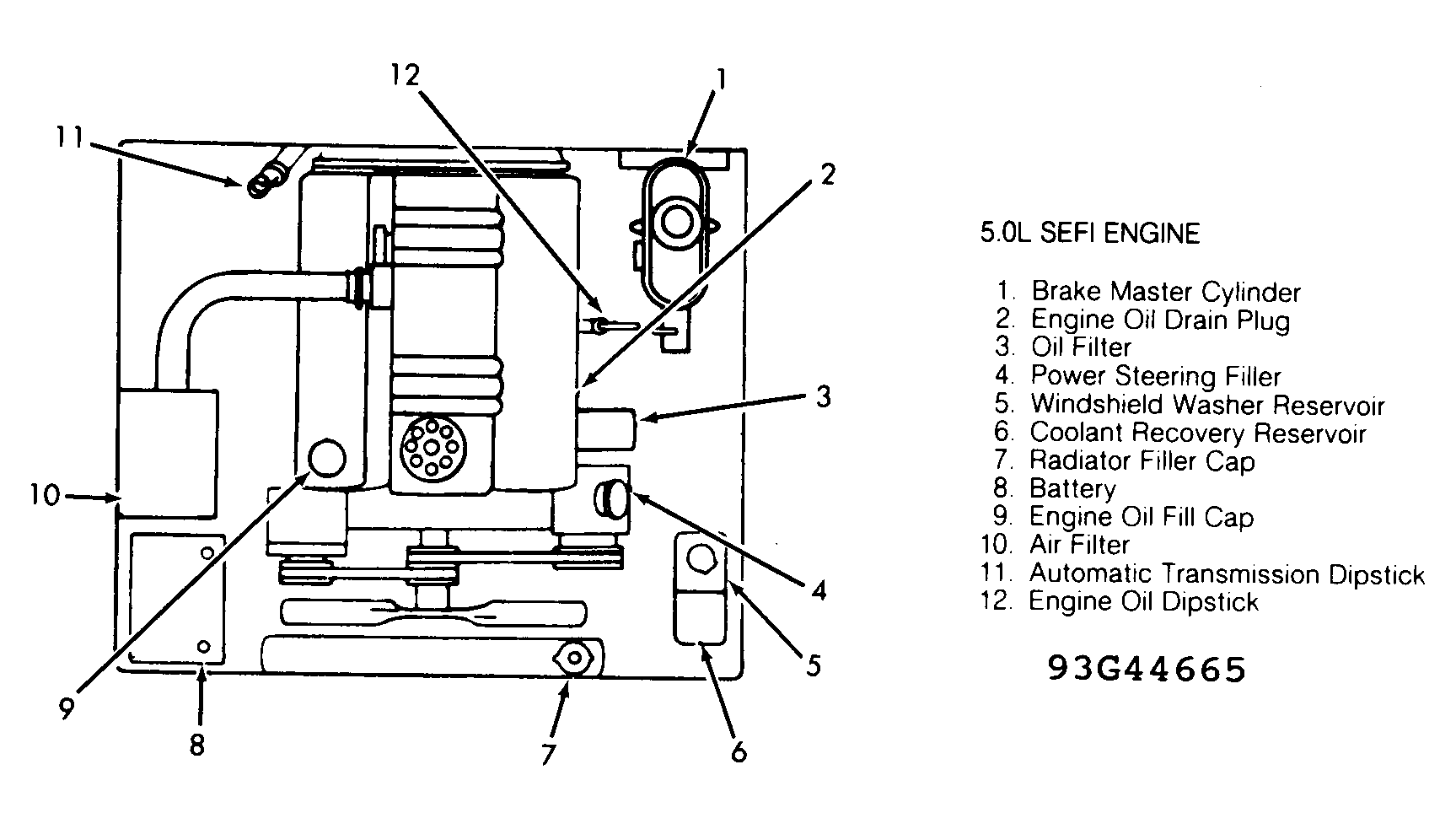

Fig 1: Service Point Locations (5.0L SEFI Engine)
G93G44665Courtesy of FORD MOTOR CO.

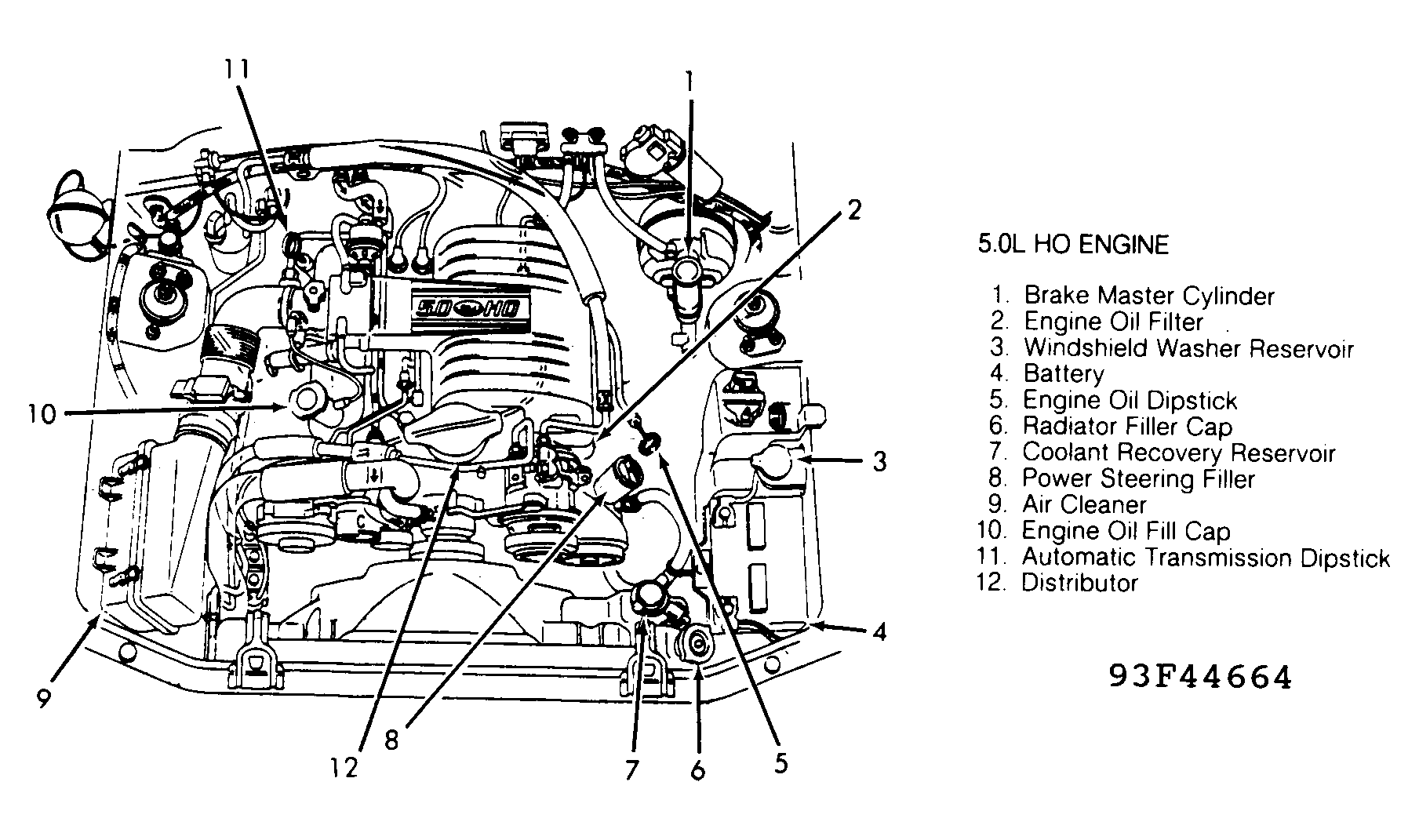

Fig 2: Service Point Locations (5.0L HO Engine)
G93F44664Courtesy of FORD MOTOR CO.

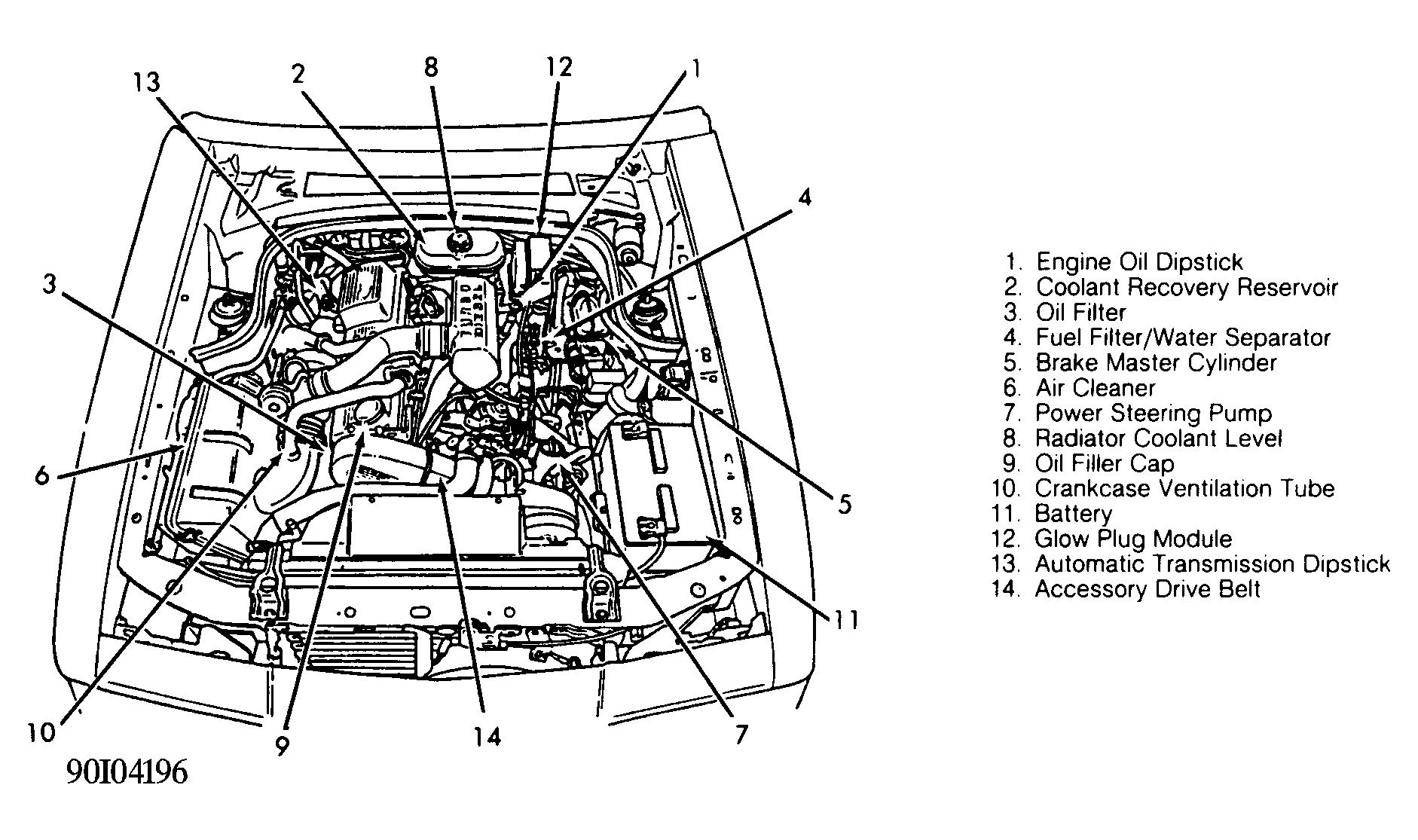

Fig 3: Service Point Locations (2.4L Diesel Engine)
G90I04196Courtesy of FORD MOTOR CO.
