Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

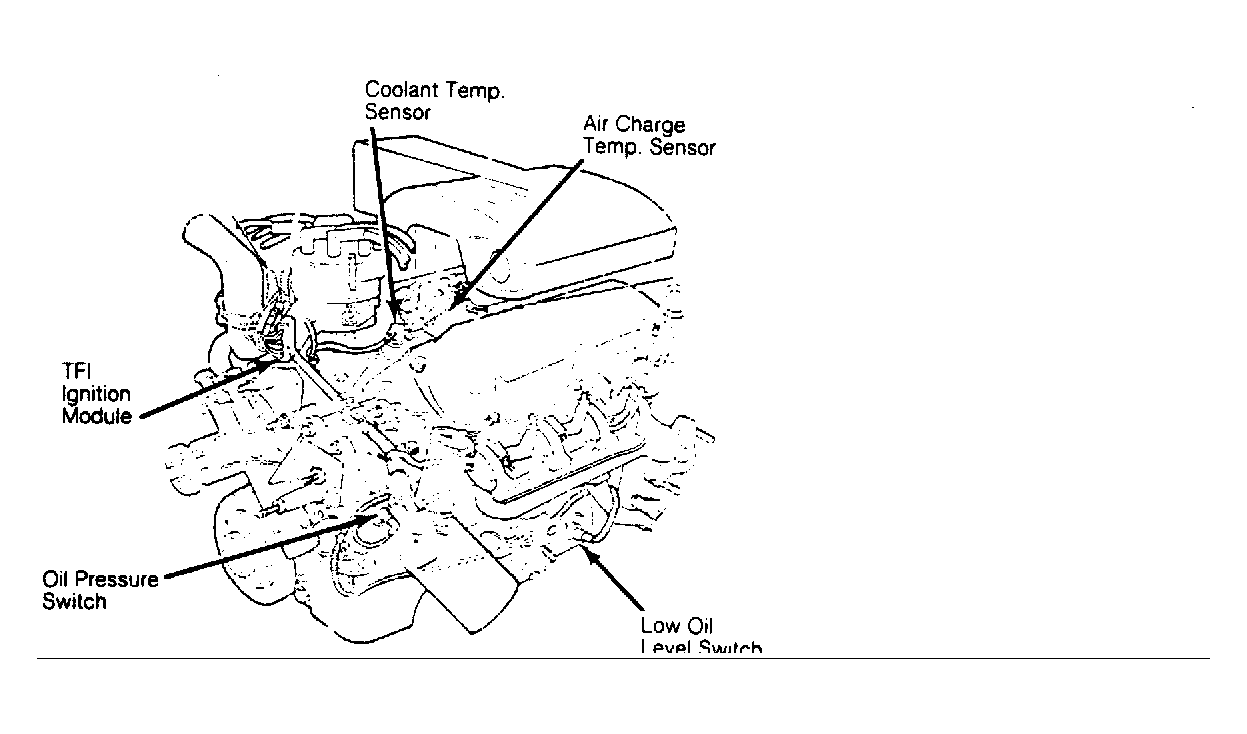

| Component | Location | |
|---|---|---|
| Anti-Theft Sys In-Line Fuses | In wiring harness near anti-theft controller. | |
| Cigar Lighter Circuit Breaker | In cavity No 12 of fuse block. | |
| Fuse Block | Below instrument cluster, left of steering column. | |
| Fusible Links | ||
| A (Gray/12 ga) Charging System | At starter relay. See Figure . | |
| B (Black/16 ga) Fuses | At starter relay. See Figure . | |
| C (Black/16 ga) Ignition | At starter relay. See Figure . | |
| D (Black/16 ga) ABS System | At starter relay. See Figure . | |
| E (Black/16 ga) Rear Defogger | At starter relay. See Figure . | |
| F (Black/16 ga) ABS System | At starter relay. See Figure . | |
| G (Blue/20 ga) Ignition Coil | At starter relay. | |
| H (Blue/20 ga) Air Susp Sys | At starter relay. See Figure . | |
| K (Blue/20 ga) EEC Power Relay | At starter relay. See Figure . | |
| L (Black/16 ga) Air Susp Sys | At starter relay. See Figure . | |
| N (Blue/20 ga) ABS System | At starter relay. See Figure . | |
| Headlight, Moon Roof & Power Window Circuit Breaker | In cavity No 14 of fuse block. | |
| Keyless Entry, Power Seat & Trunk Pull-Down Circuit Breaker | At starter relay. | |
| Wiper/Washer Circuit Breaker | In cavity No 2 of fuse block. | |
