Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| ABS Main Hydraulic Valve | On master cylinder/booster assembly. See Figure . |
| Cruise Control Servo | On left fender apron, behind shock tower. |
| Hi/Lo Beam Photocell Amplifier | On rearview mirror. |
| Idle Speed Control Diode | In wiring harness, just below idle speed control solenoid. |
| Light Sensor/Amplifier | Below instrument cluster, near fuse block. |
| Premium Sound Amplifier | In trunk, under package tray. |

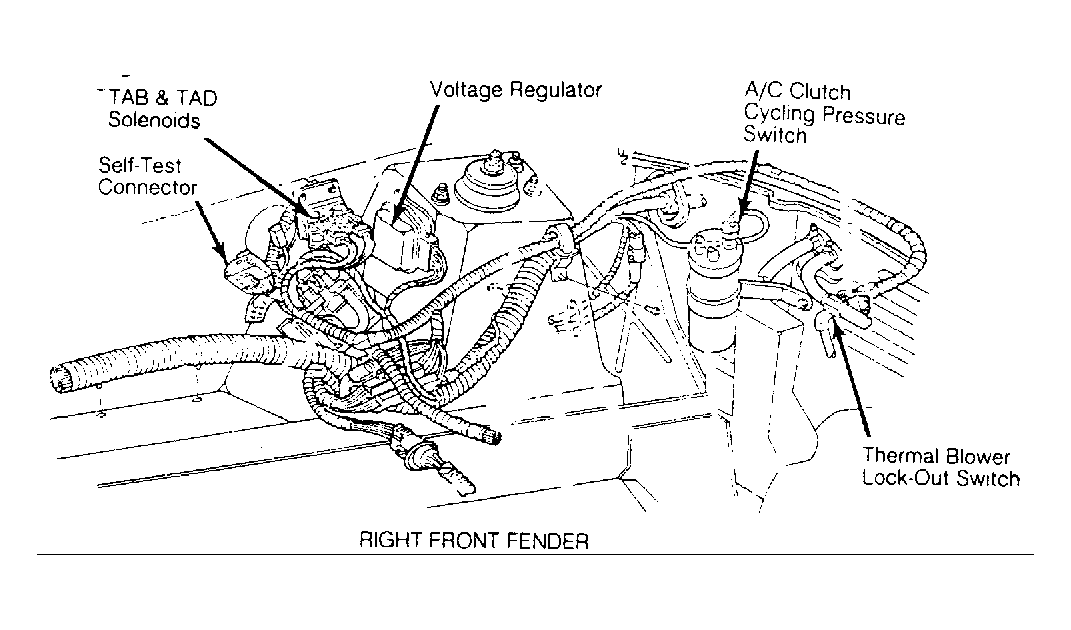

| Self-Test Connector | On right fender panel, in front of shock tower. See Figure . |
| Wiper/Washer Interval Governor | Behind instrument cluster, left of headlight switch. See Figure . |
