Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In trunk, at center of rear seatback. |

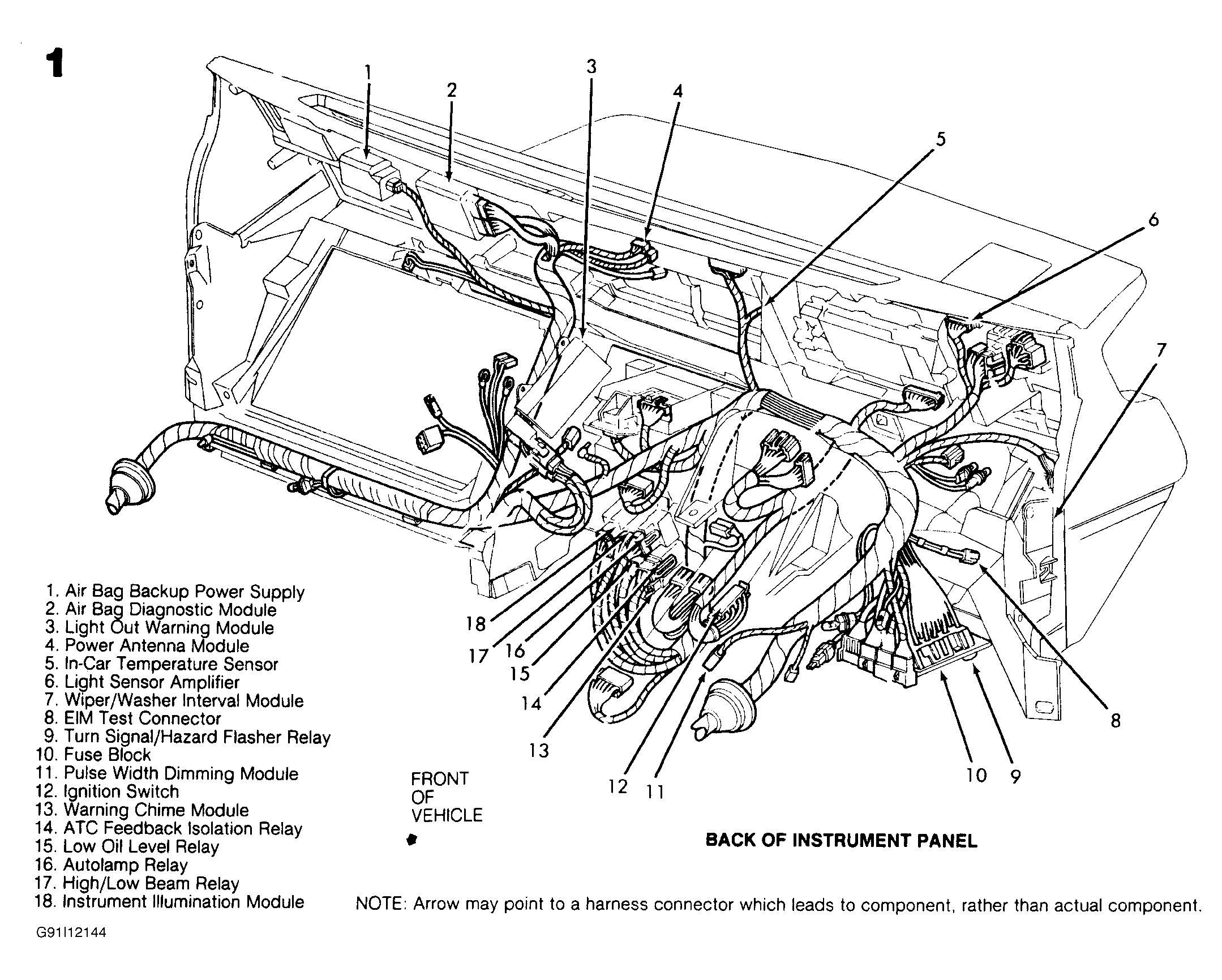

| Air Bag Diagnostic Module | Above glove box. See Figure . |
| Air Suspension Control Module | In trunk, on left lid hinge support. |
| Anti-Theft Control Module | In trunk, under right side of rear shelf. |
| Auto. Temp. Control (ATC) Module | Behind center of dash. See Figure . |
| Blower Motor Speed Controller | Behind right side of dash, on evaporator assembly. |

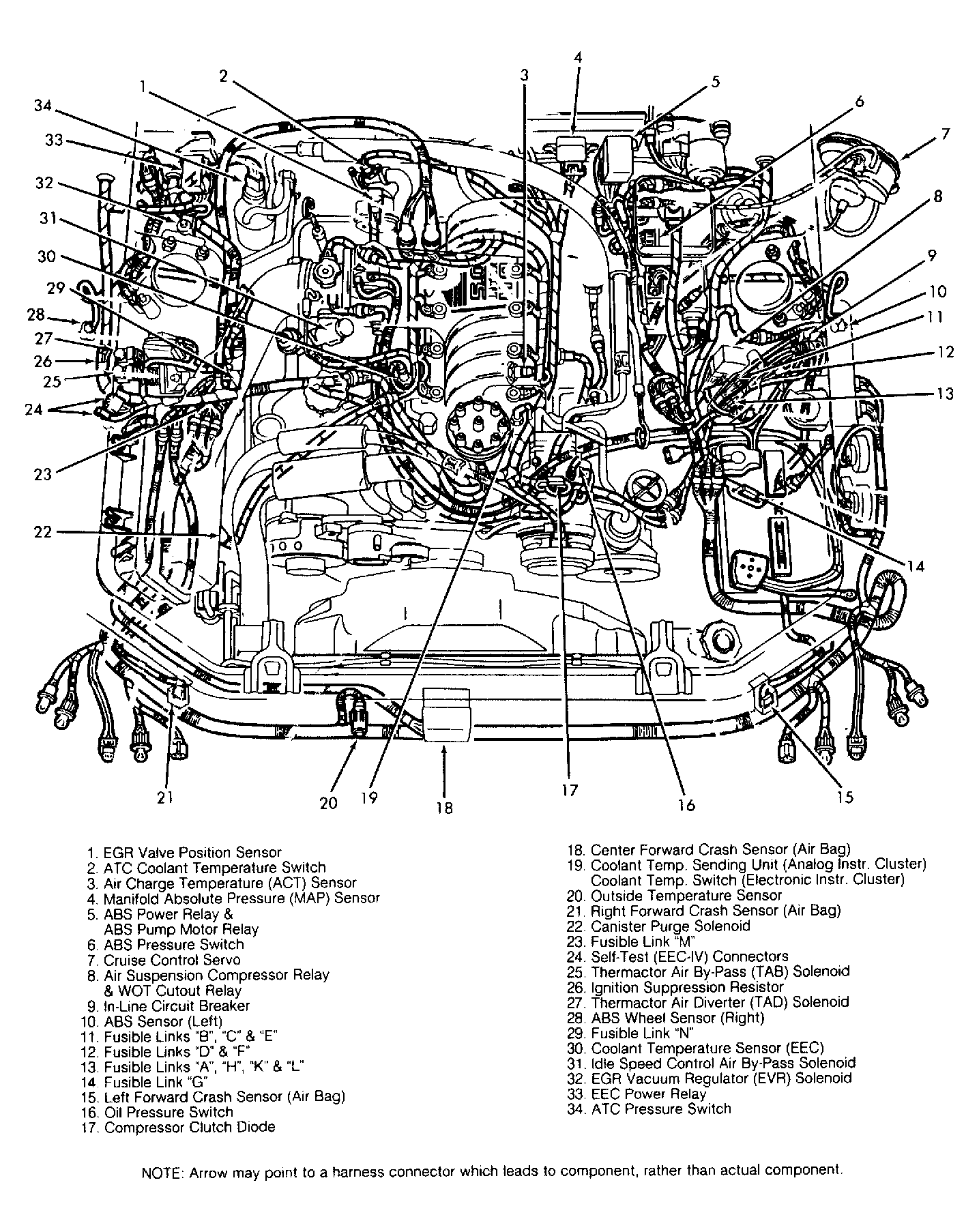

| Daytime Running Lights (DRL) Module | Near battery. See Figure . |
| Electronic Engine Control (EEC) Module | Behind right kick panel. |
| Keyless Entry Module | In trunk, under right side of rear shelf. |
| Instrument Illumination Module | Behind left side of dash, above high/low beam relay. See Figure . |
| Light Out Warning Module | Behind right side of dash, left of glove box. See Figure . |
| Outside Temp./Compass Module | At center of windshield header. |
| Pulse Width Dimming Module | Behind left side of dash, near brake pedal support. See Figure . |
| TFI Ignition Module | On distributor. |
| Trip Minder Module | Behind center of instrument panel. |
| Warning Chime Module | Behind left side of dash, right of steering column. See Figure . |
| Wiper/Washer Interval Module | Behind left kick panel, near top. |
