Keyless Entry System: Testing: Notes

At least one remote transmitter is required for testing. The following tests make numerous references to RKEM connectors and terminals. See Fig 1 . For further information see DOOR LOCKS & TRUNK RELEASE - POWER article in the ACCESSORIES/SAFETY EQUIPMENT section.

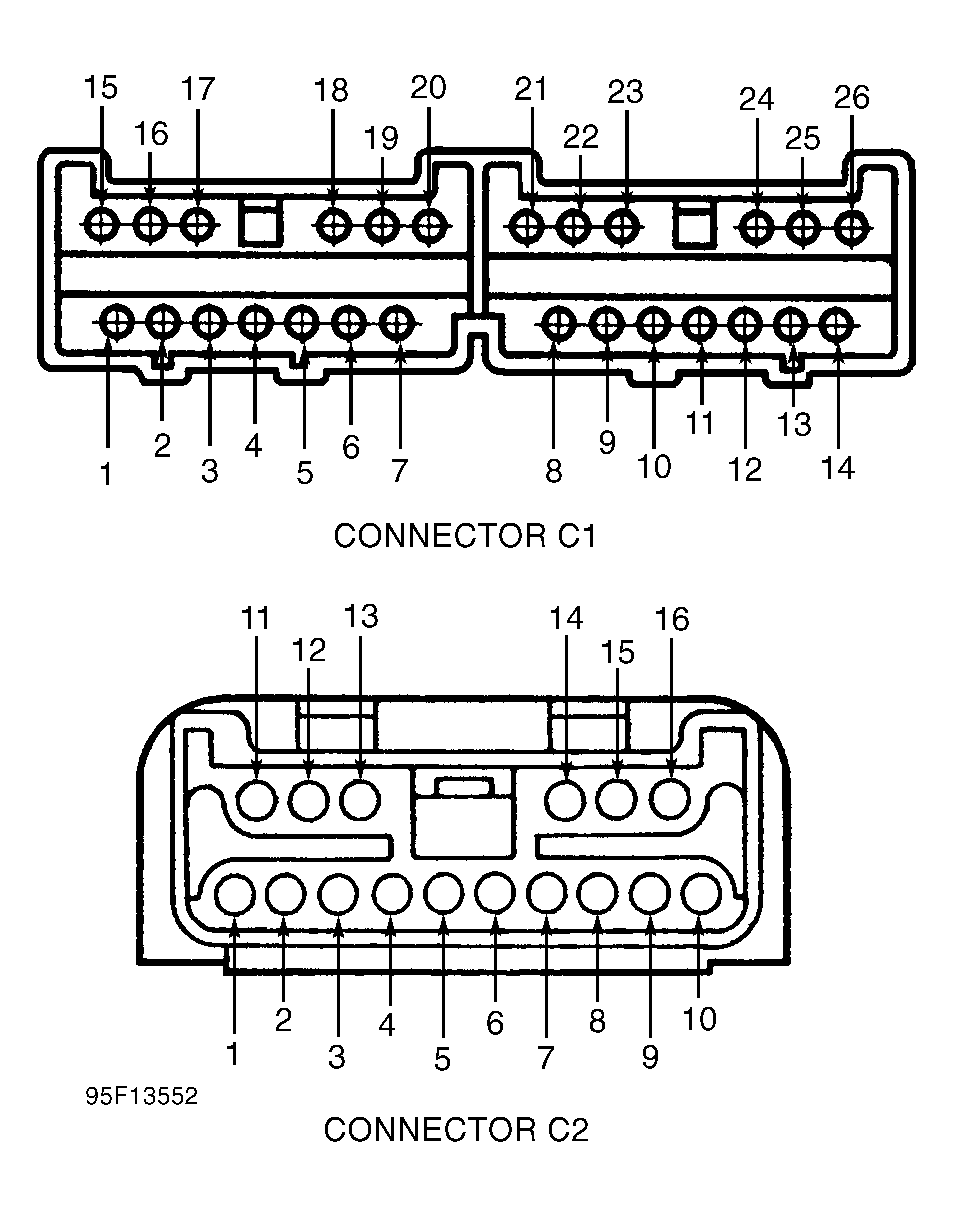

Fig 1: Identifying Driver's Door Module Connector Terminals

Courtesy of FORD MOTOR CO.
