DTC 11

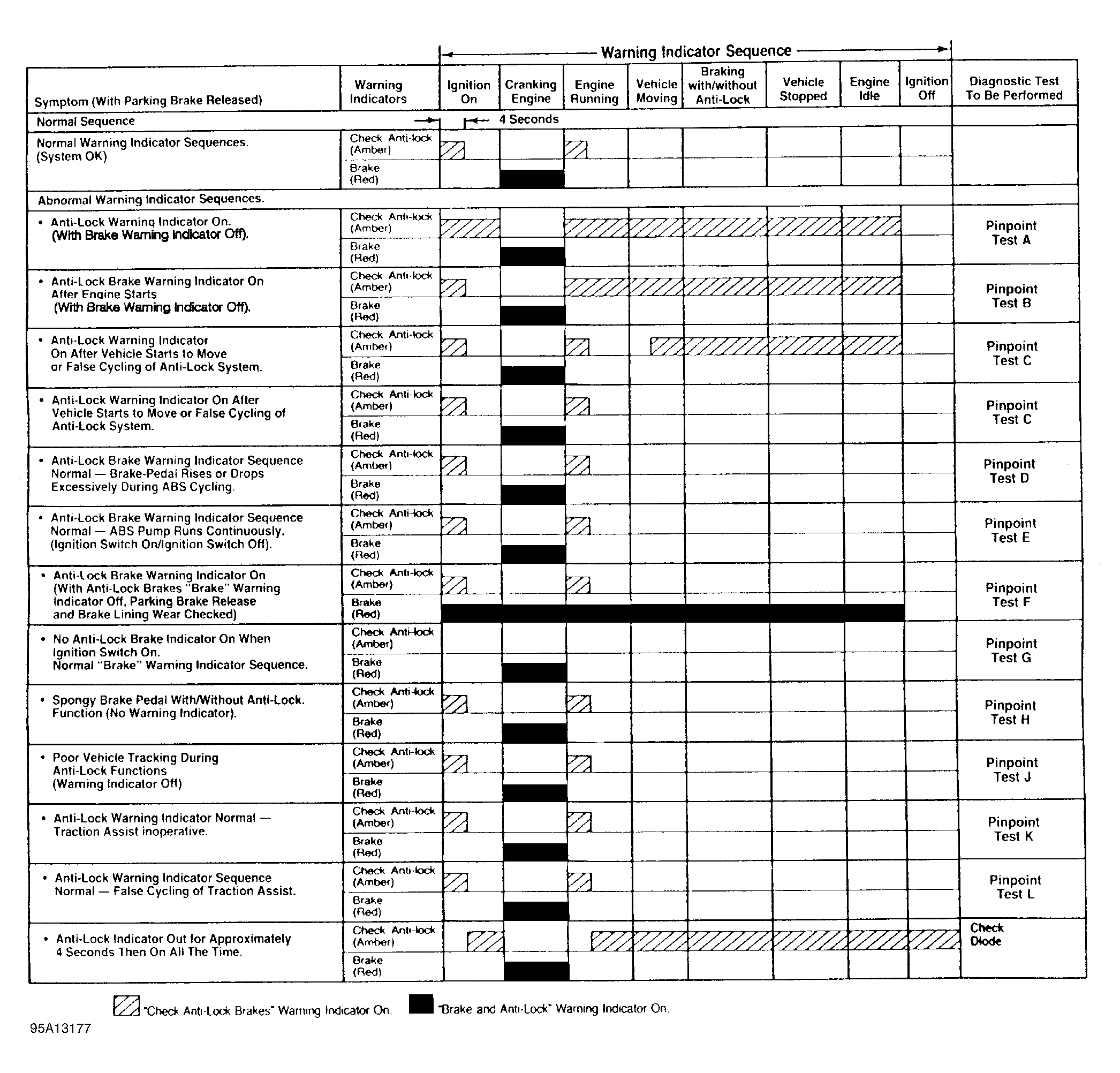

Retrieve and record all DTCs. See RETRIEVING TROUBLE CODES  under DIAGNOSIS. Road test vehicle at minimum speed of 25 MPH. Retrieve DTCs again. If DTCs do not appear and warning lights are off, vehicle is okay. If DTCs appear, see DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION  table under DIAGNOSIS for applicable test procedure. If both ANTI-LOCK and BRAKE warning lights are on, see WARNING LIGHT SYMPTOM SEQUENCE CHART for applicable test procedure. See Figure . If DTC 11 is repeated, replace ABS control module.
