Headlight Switch Test

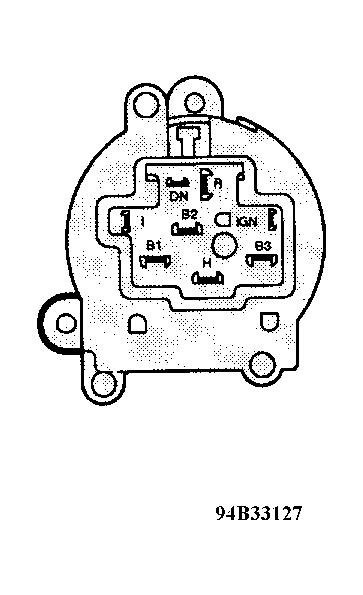

Remove headlight switch. See HEADLIGHT SWITCH under REMOVAL & INSTALLATION. Test headlight switch for continuity between specified terminals at each switch position. See LIGHT SWITCH CONTINUITY table. See Fig 1 . Replace headlight switch if continuity is not as specified.
LIGHT SWITCH CONTINUITY
| Terminal Pair | Condition | |
|---|---|---|
| Switch In OFF Position | ||
| B1-H | No Continuity | |
| B1-B3 | Continuity | |
| B2-R | No Continuity | |
| DN-1 | No Continuity | |
| Switch In PARK Position | ||
| B1-H | No Continuity | |
| B1-B3 | Continuity | |
| B2-R | Continuity | |
| DN-1 | Continuity | |
| Switch In HEADLIGHTS Position | ||
| B1-H | Continuity | |
| B1-B3 | Continuity | |
| B2-R | Continuity | |
| DN-1 | Continuity | |
