Single Switches

Each single switch contains a relay. To test switch, power and ground must be applied to switch relay. Using jumper wires, apply battery voltage to switch terminal C2-3 and ground to terminal C1-4. See Fig 1 .
Remove switch from door. See WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check for continuity between indicated terminals with switch in appropriate position. See Fig 1 . See SINGLE SWITCH TESTING TABLE. If continuity is not as specified, replace power window switch(es).

SINGLE SWITCH TESTING

Switch Position

Continuity Between Connector-Terminals No.

Neutral

C1-2, C1-3 & C1-4

Neutral

C2-1, C2-4 & ⁽¹⁾ C1-4

C1-3 & C1-1

Neutral

C1-2 & C1-4

Down

C1-3 & C1-4

Neutral

C1-1 & C1-2

⁽¹⁾	Circuit continuity is through relay coils.

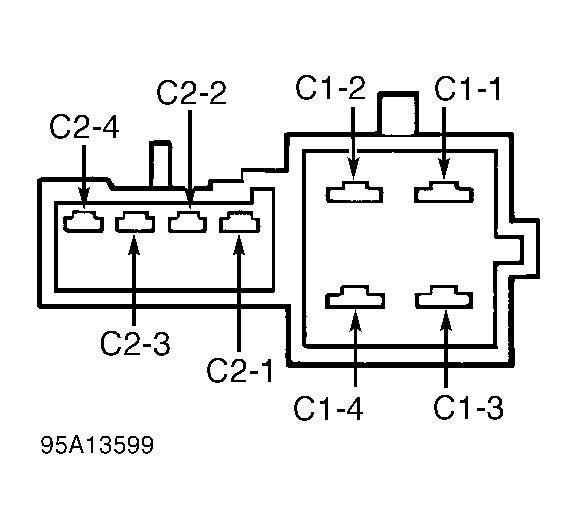

Fig 1: Identifying Power Window Single Switch Terminals

Courtesy of FORD MOTOR CO.
