Passenger Switch

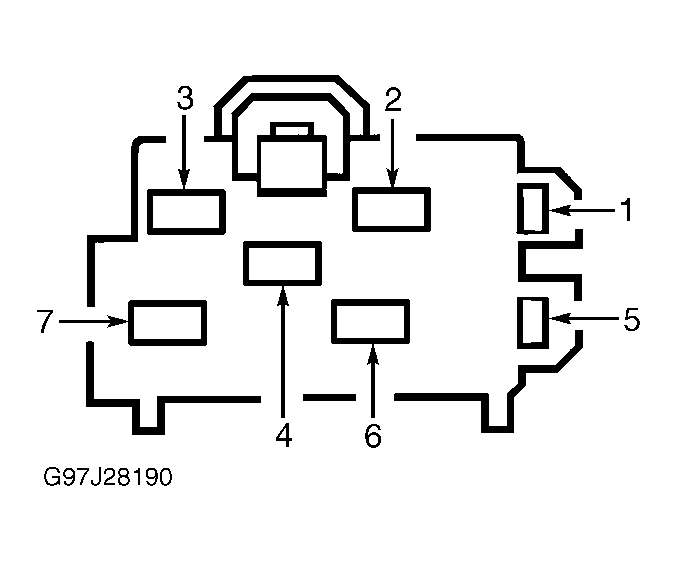

Remove passenger switch. Measure resistance between terminals as specified while operating switch. See PASSENGER SWITCH TESTING TABLE. If resistance is greater than 5 ohms, replace switch. DO NOT check resistance between terminals not specified. See Fig 1 .
PASSENGER SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 2 & 3; 6 & 7; 1 & 5 |
| Up | 4 & 6; 1 & 3 |
| Down | 3 & 4; 1 & 6 |
