Diagnostic Trouble Code Definitions

ANTI-LOCK BRAKE SYSTEM CONTROL MODULE DTC DEFINITIONS

DTC Source Module Description
B1342 ABS ECU Defective
B1485 ABS Brake Pedal Input Circuit Short To Battery
B1676 ABS Battery Voltage Out Of Range
C1095 ABS ABS Hydraulic Pump Motor Circuit Failure
C1145 ABS RF Speed Sensor Input Circuit Failure
C1155 ABS LF Speed Sensor Input Circuit Failure
C1165 ABS RR Speed Sensor Input Circuit Failure
C1175 ABS LR Speed Sensor Input Circuit Failure
C1233 ABS LF Wheel Speed Input Signal Missing
C1234 ABS RF Wheel Speed Input Signal Missing
C1235 ABS RR Wheel Speed Input Signal Missing
C1236 ABS LR Wheel Speed Input Signal Missing
U1009 PCM (1) SCP Invalid Or Missing Data For Engine Torque
U1027 PCM (1) SCP Invalid Or Missing Data For Engine RPM
U1042 MC (2) SCP Invalid Or Missing Data For Traction Control
U1059 PCM (1) SCP Invalid Or Missing Data For Transmission PRNDL
(1) Testing information not available from manufacturer at time of publication.
(2) Check fuses No. 4 (10-amp) and 20 (10-amp) in fuse panel at driver's side end of instrument panel, near door opening. If any fuse is defective, replace fuse and recheck system operation. If fuses are okay, use NGS tester and check for continuous DTCs. Perform necessary tests for any DTCs.

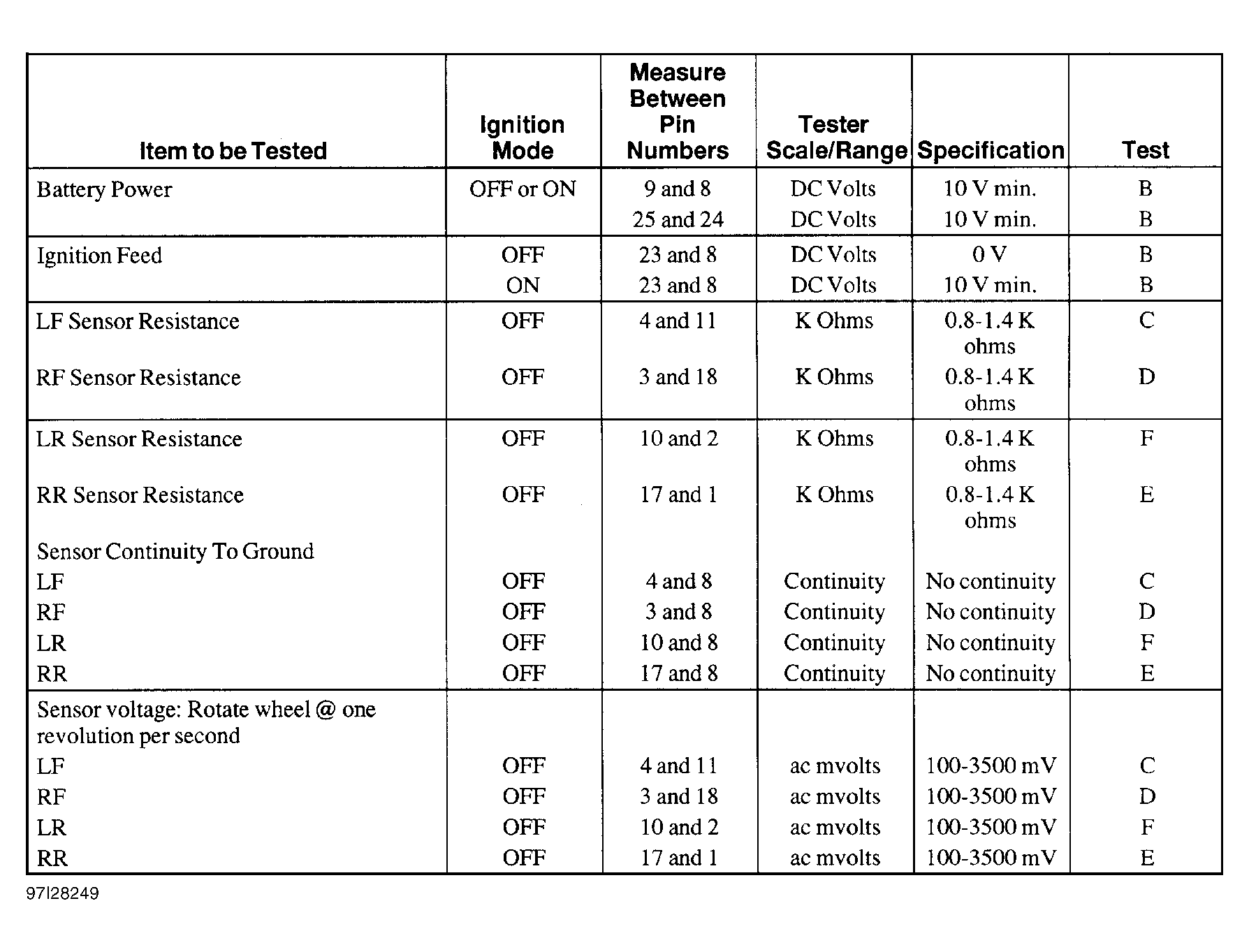

Fig 1: ABS Quick Check Chart
G97I28249Courtesy of FORD MOTOR CO.
