Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

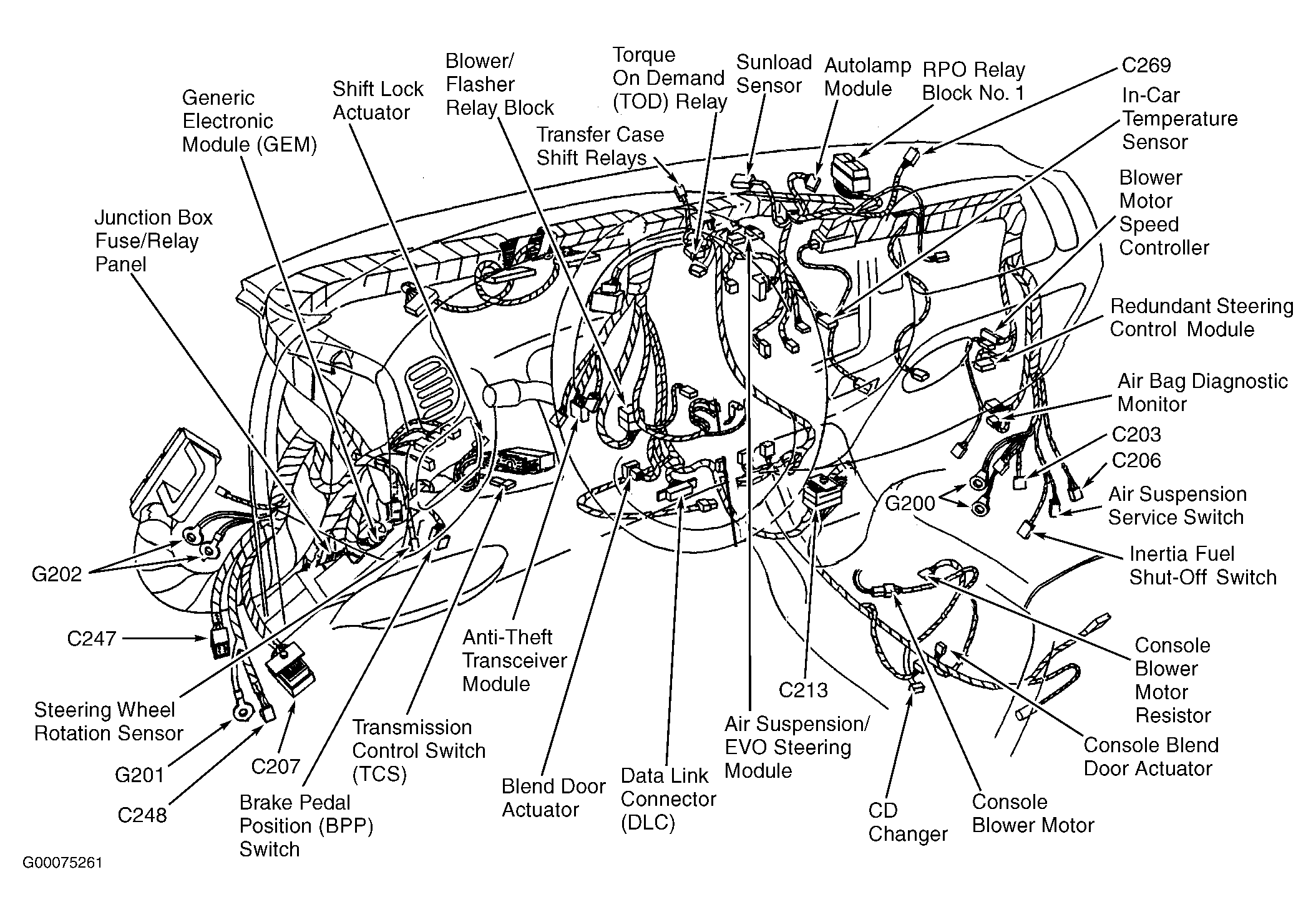

| Air Bag Diagnostic Monitor | Behind right side of dash. See Figure . |
| Air Suspension/EVO Steering Module | Behind center of dash. See Figure . |
| Anti-Theft Transceiver Module | Behind instrument cluster. See Figure . |
| Autolamp Module | Behind center of dash. See Figure . |

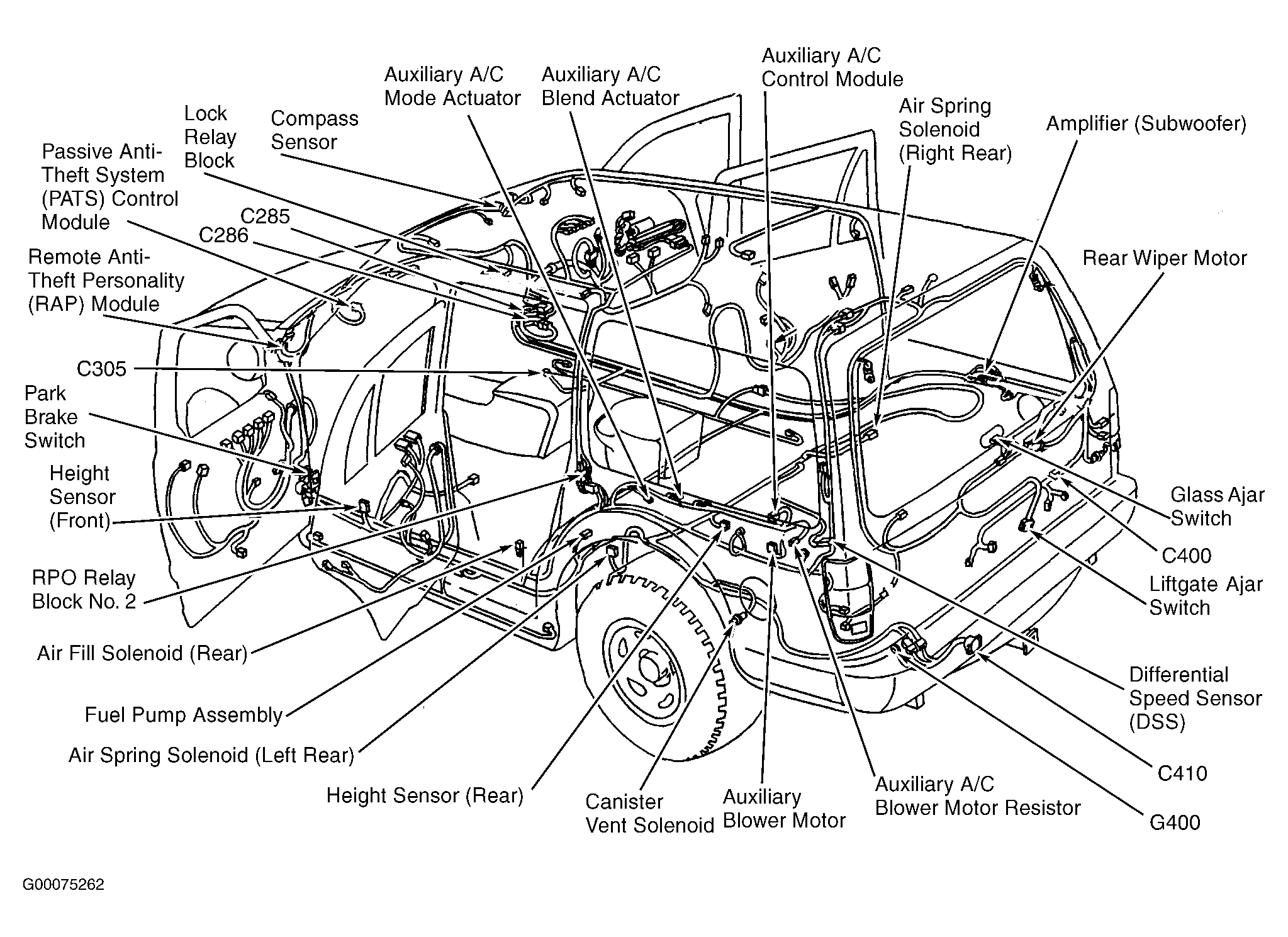

| Auxiliary A/C Control Module | In rear of vehicle, behind left side panel. See Figure . |
| Blower Motor Speed Controller | Behind right side of dash. See Figure . |
| Daytime Running Lamps (DRL) Module | On left front of engine compartment. See Figure . |
| Generic Electronic Module (GEM) | Behind left side of dash. See Figure . |
| Memory Seat & Mirror Module | Under driver's seat. |
| Overhead Trip Computer (OTC) Module | In front of overhead console. |
| Passive Anti-Theft System (PATS) Control Module | Behind center of dash. See Figure . |
| Powertrain Control Module (PCM) | On right side of engine compartment. See Figure . |
| Redundant Steering Control Module | Behind center of dash. See Figure . |
| Remote Anti-Theft Personality (RAP) Module | Behind left side of dash. See Figure . |
| Trailer Electronic Brake Control | Behind left side of dash. |
| 4-wheel Anti-Lock Brake System (4WABS) Module | On left side of engine compartment. See Figure . |
