Relay-Mini ISO: Notes

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

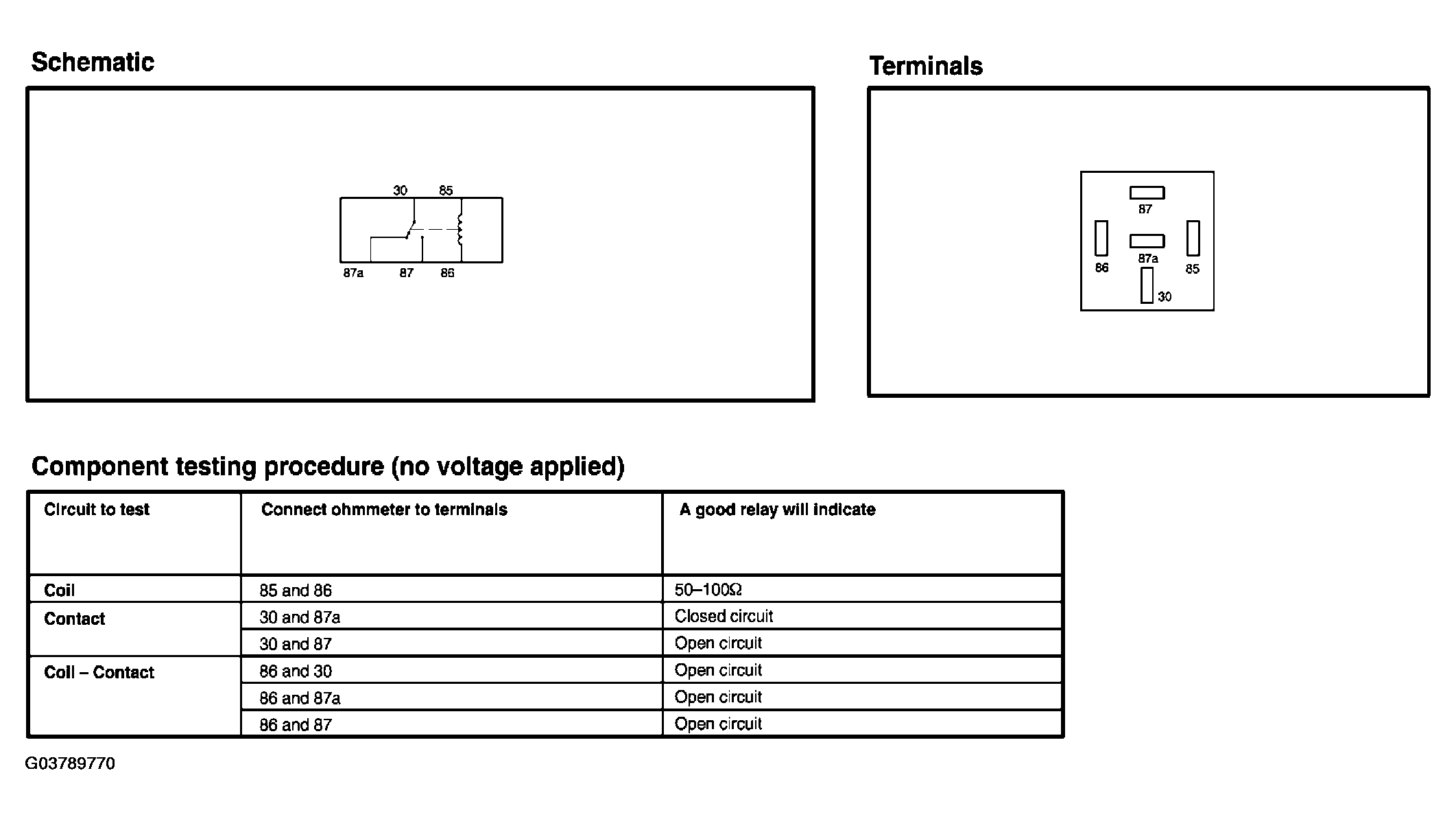

Fig 1: Testing Relay-Mini ISO
G03789770Courtesy of FORD MOTOR CO.
