Component Locations

Air suspension ON/OFF switch is located behind the right kick panel. The door lower scuff (trim) plate must be removed before kick panel can be removed.

Fig 1: Locating Air Suspension/EVO Module, EVO Module, EVO Diagnositic Connector & GEM

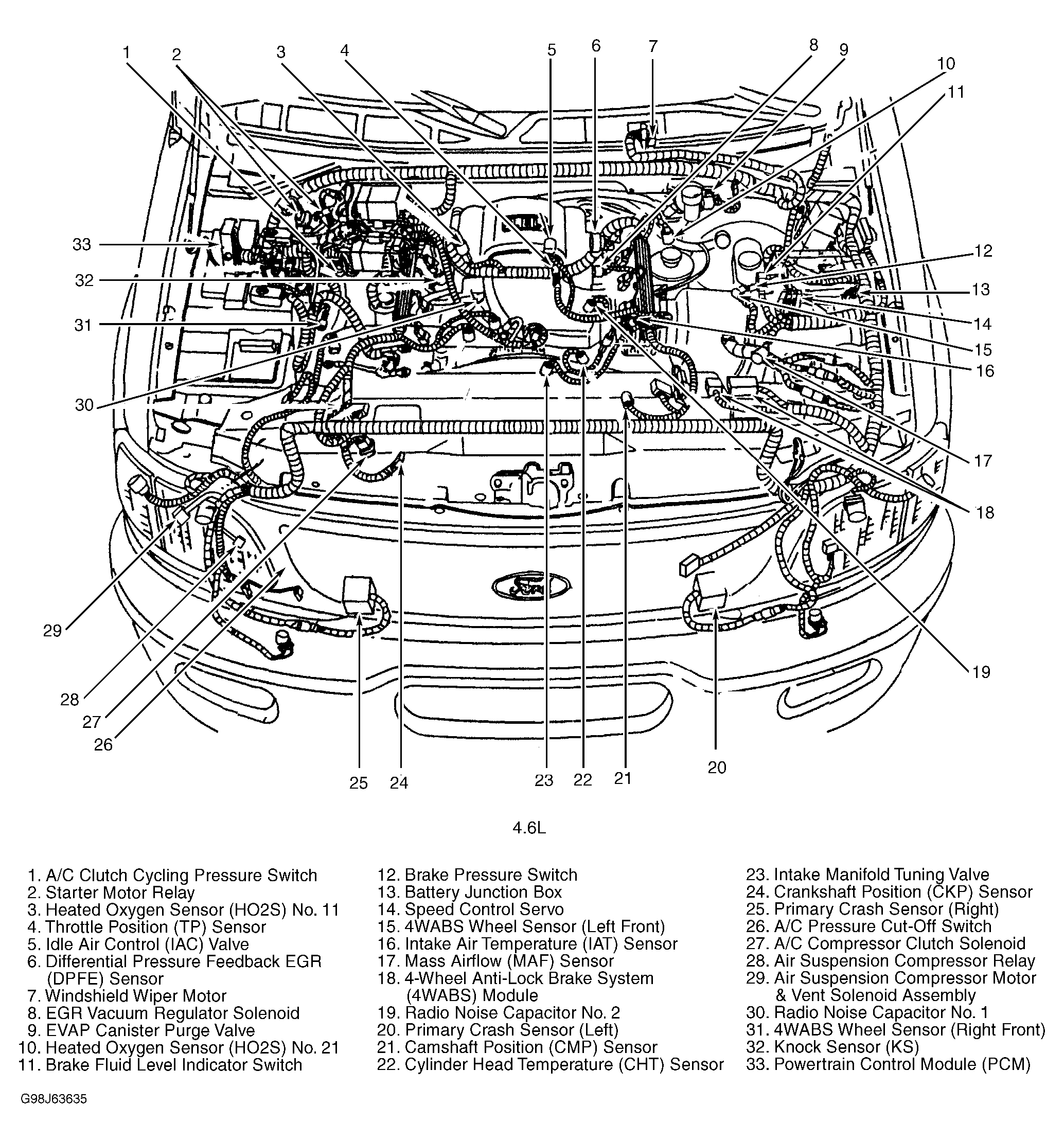

Fig 2: Locating Powertrain Control Module, Right Side Of Engine Compartment (4.6L)

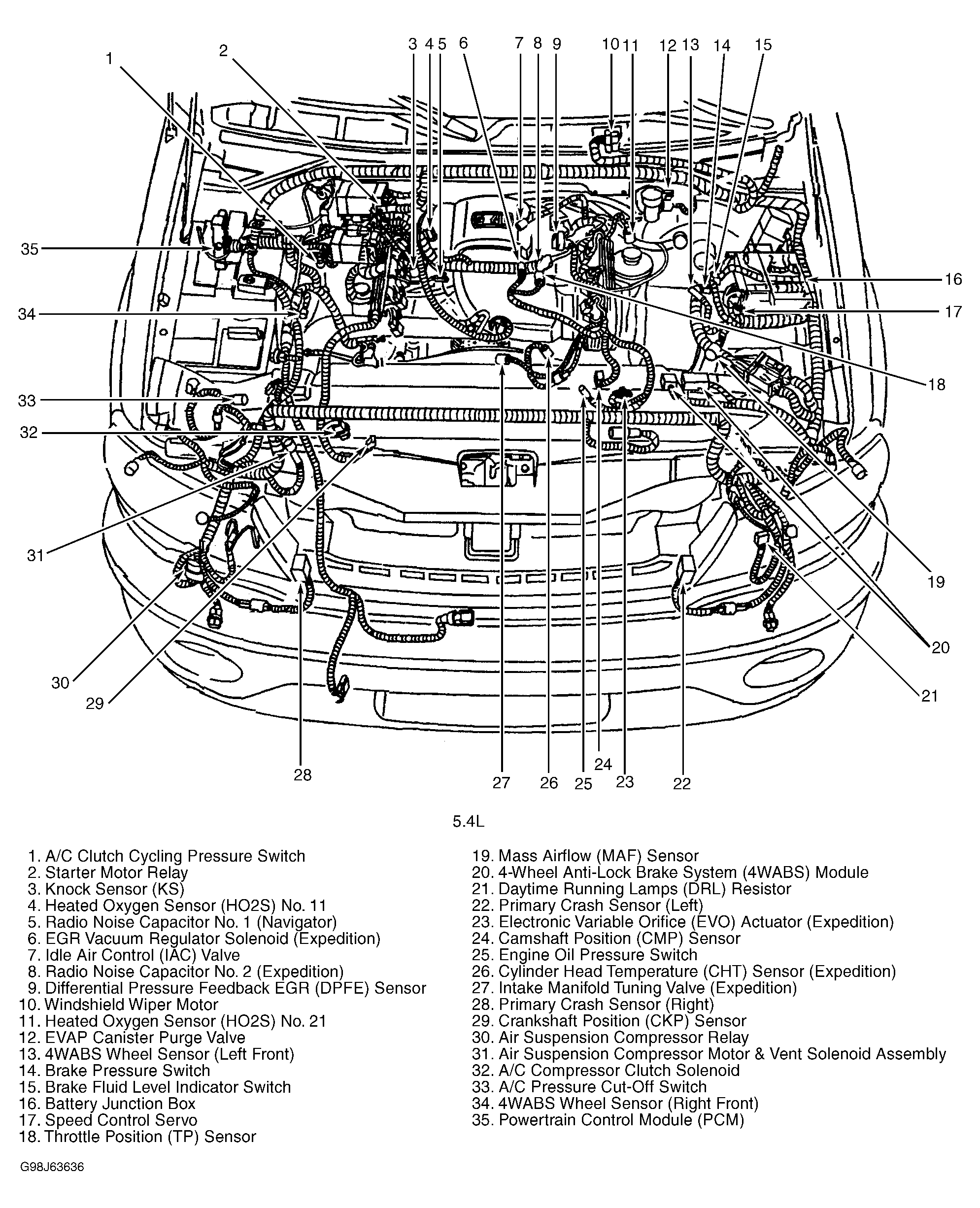

Fig 3: Locating Powertrain Control Module, Right Side Of Engine Compartment (5.4L)
