Connector Identification

NOTE: Use illustrations to identify connector terminals referenced in testing. See Fig 1 and Fig 2

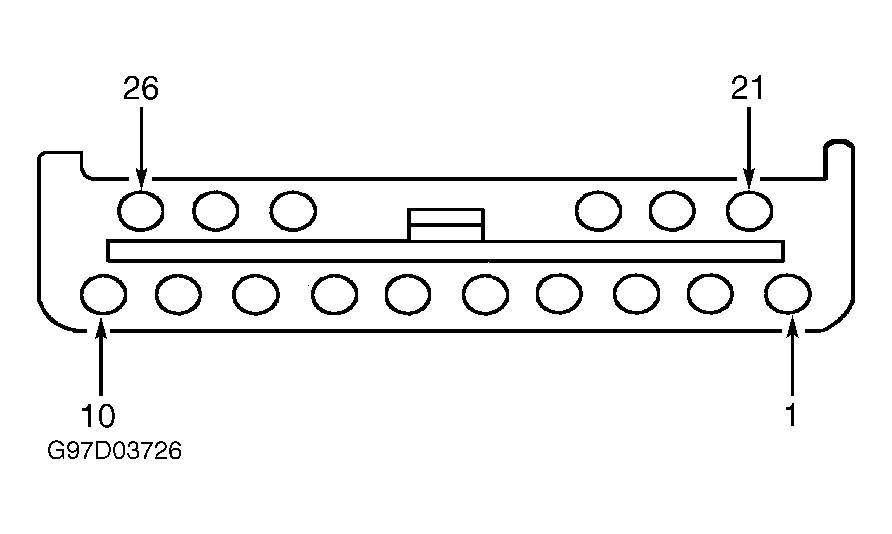

Fig 1: Identifying Air Suspension Module Connector C295 (Gray)
G97D03726Courtesy of FORD MOTOR CO.

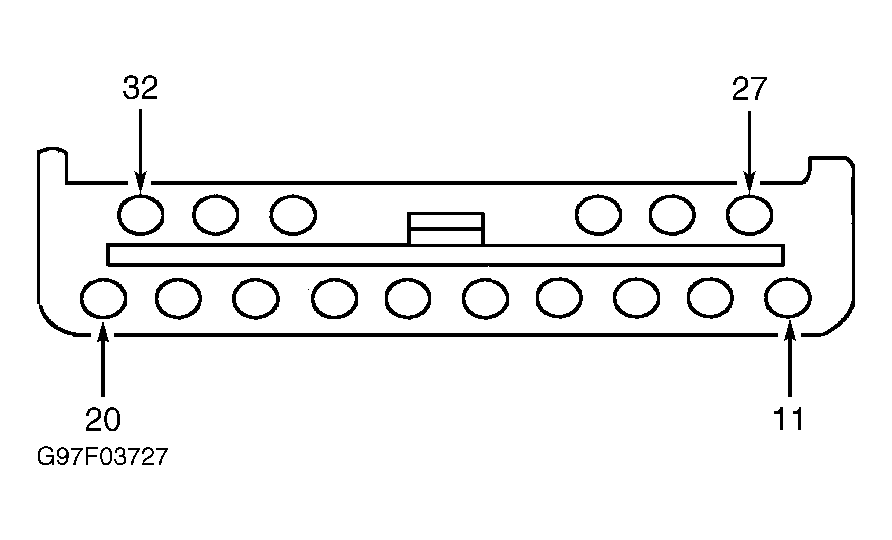

Fig 2: Identifying Air Suspension Module Connector C296 (Black)
G97F03727Courtesy of FORD MOTOR CO.
