Planet Assembly: Assembly

  1. Install the retaining ring.
    1. Install rear planetary gear assembly.
    2. Install the No. 13 needle bearing with black side of bearing facing up.
    3. Install the front planetary gear assembly.
    4. Install the retaining ring.

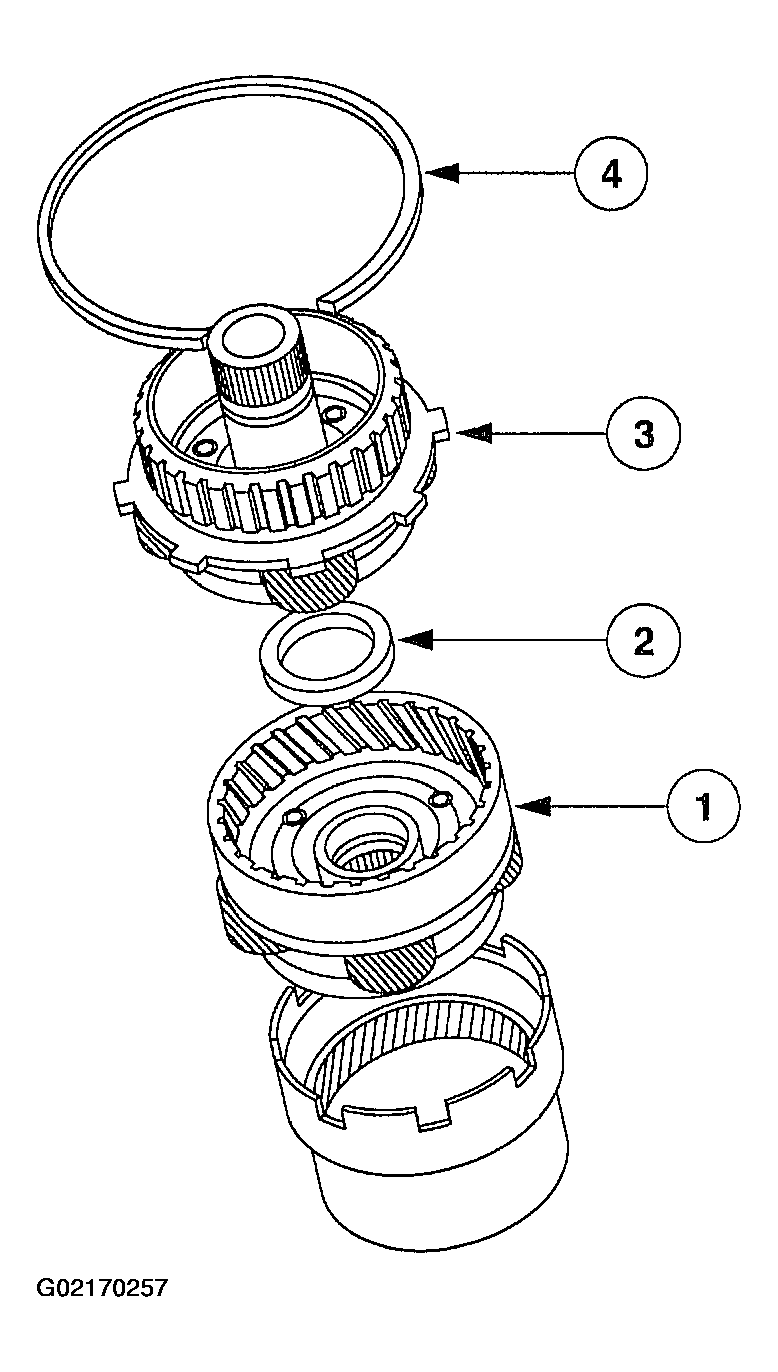

      Fig 1: Installing Retaining Ring
      G02170257
    2. NOTE: Make sure that the reverse clutch assembly is fully seated.
    Fig 2: Installing Reverse Clutch Assembly
    G02170258
  2. Install the reverse clutch assembly.
