Planet Assembly: Disassembly

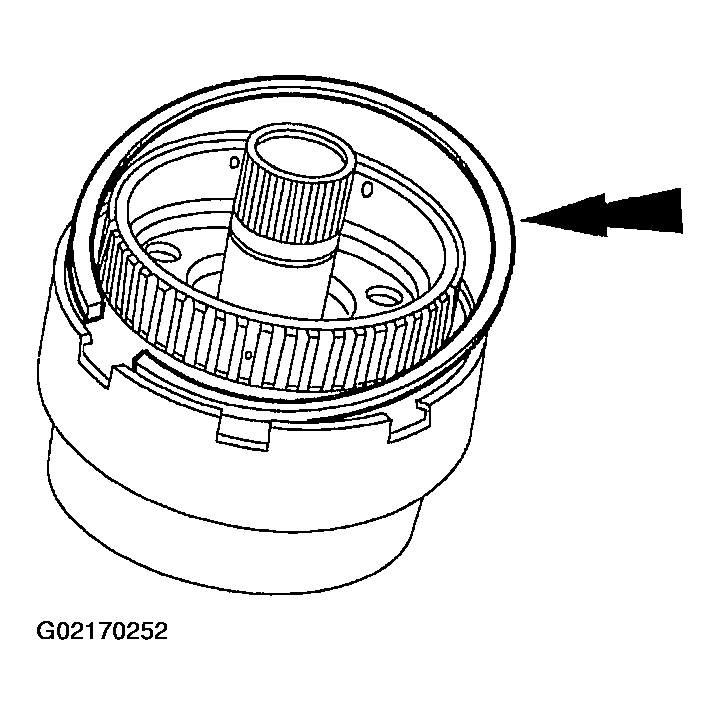

Remove the retaining ring.

Fig 1: Removing Retaining Ring

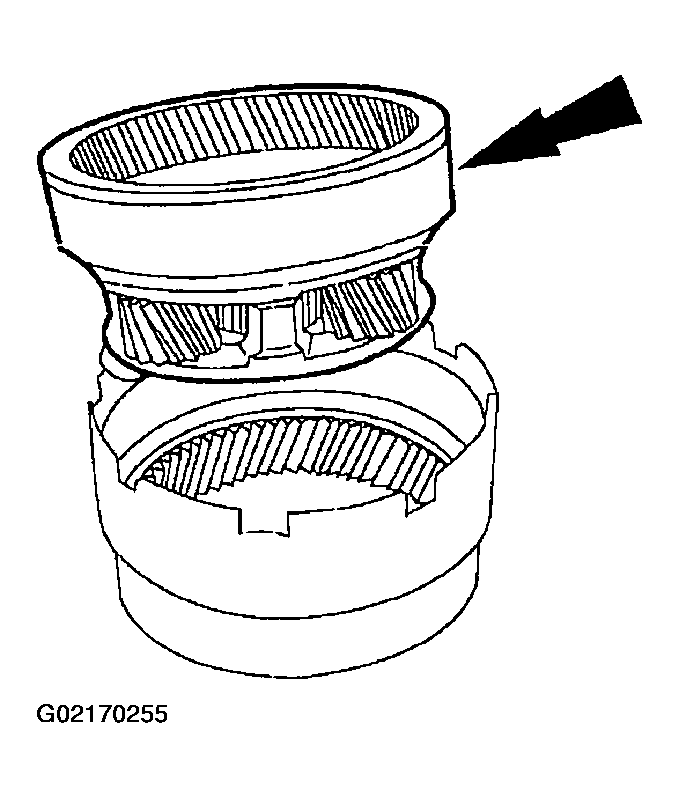

Remove the front planet gear assembly, Clean and inspect for looseness and discoloration of the pinion gears or wear on the bearings. Repair as required.

Fig 2: Removing Front Planet Gear Assembly

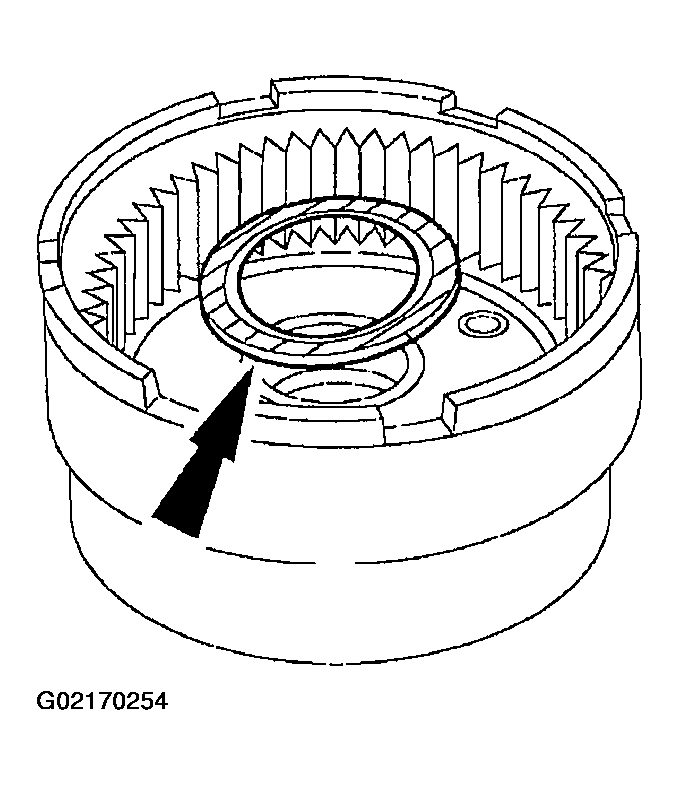

Remove the No. 13 needle bearing.

Fig 3: Removing No. 13 needle bearing

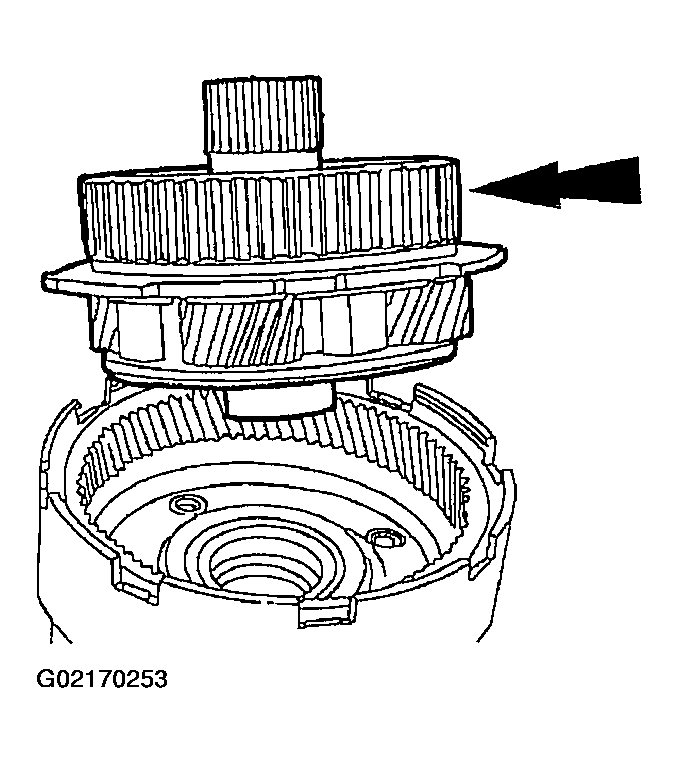

Remove the reverse planet.

Fig 4: Removing Reverse Planet

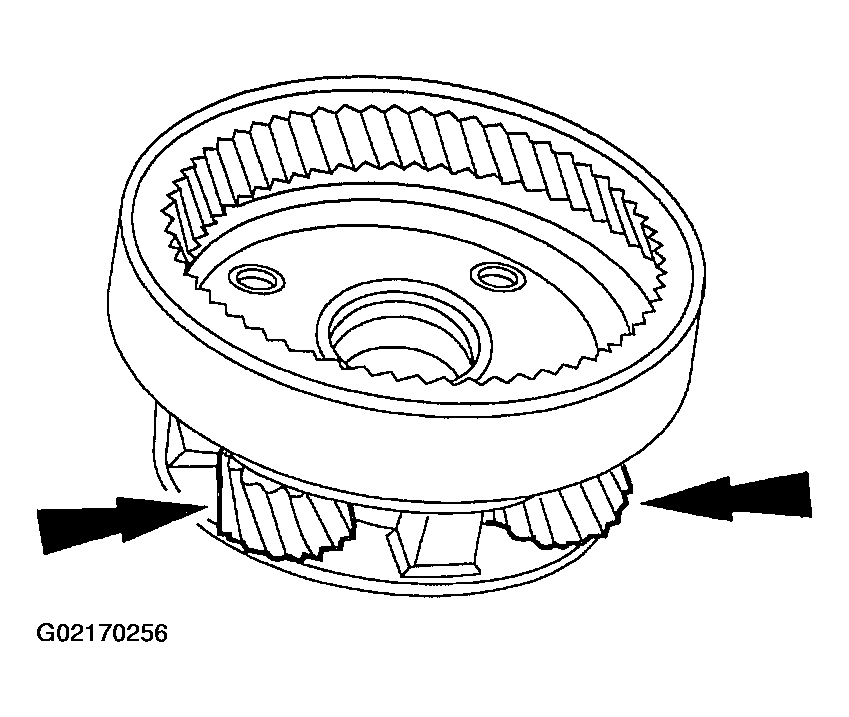

Clean and inspect the reverse planet for looseness and/or discoloration of the planet gears or wear on the bushings or bearings. Repair as required.

Fig 5: Inspecting Planet Gears
