Pump Assembly: Assembly

    NOTE: Be sure the solenoids are locked in place by pressing down and rotating them.

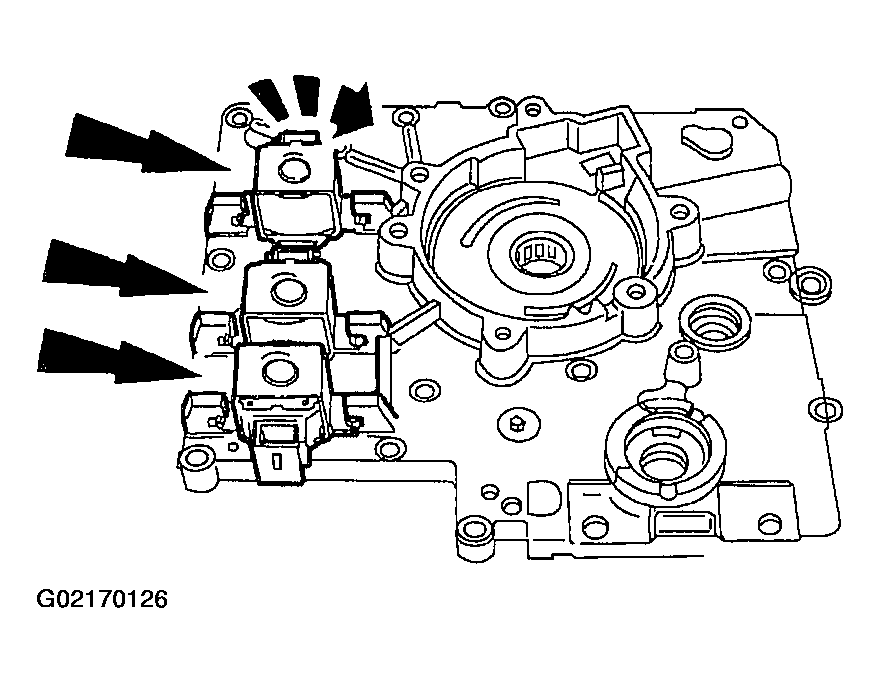

    Fig 1: Installing Shift Solenoids
    G02170126
  1. Replace the O-rings and install the shift solenoids by pressing down and rotating them until they lock in place.
  2. Replace the O-rings and install the EPC, TCC solenoids.

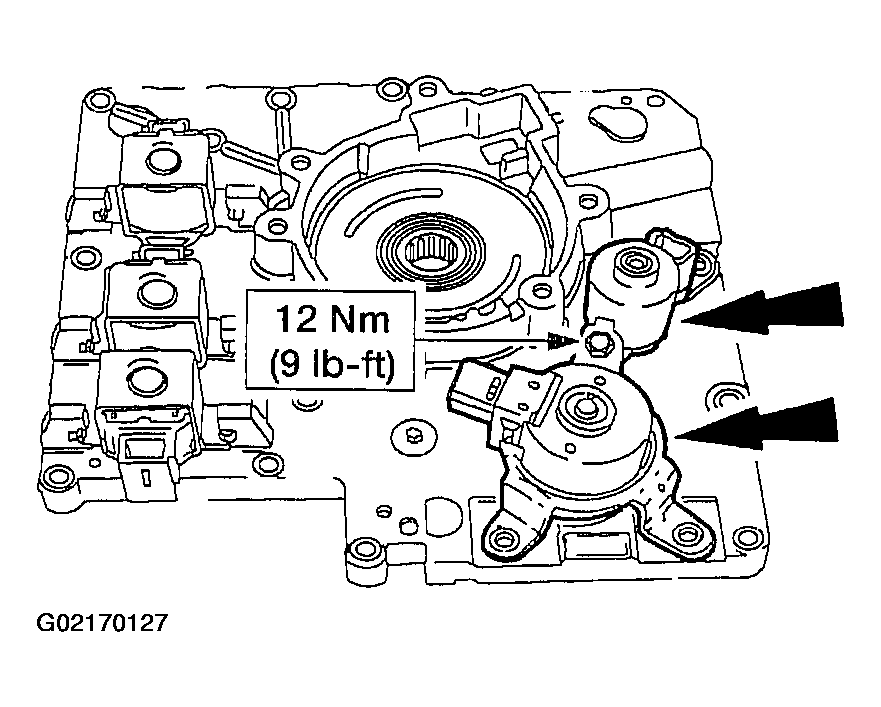

    Fig 2: Installing EPC, TCC Solenoids
    G02170127
  3. Install the bottom pump vane support ring.

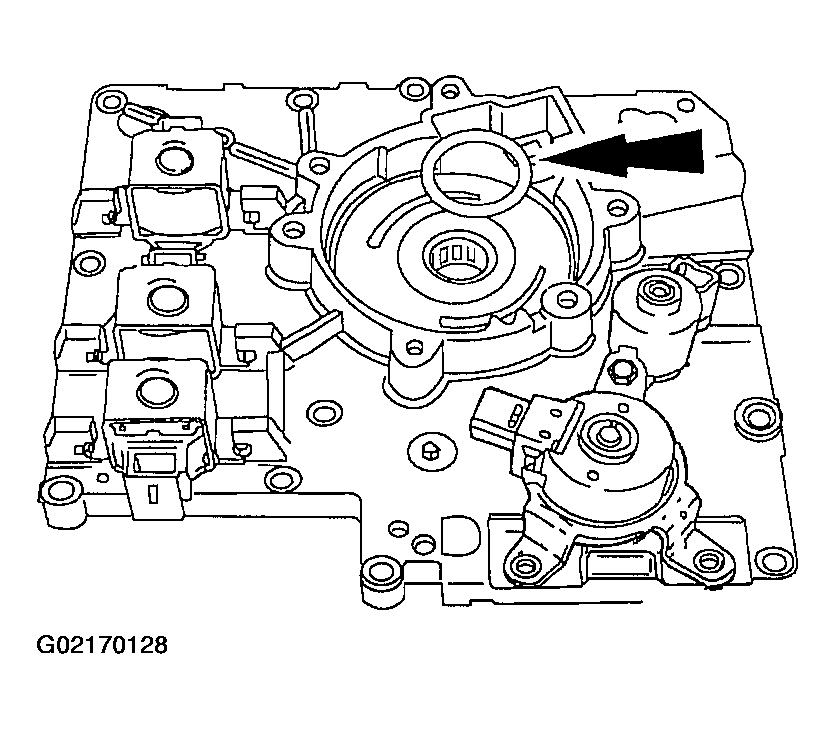

    Fig 3: Installing Bottom Pump Vane Support Ring
    G02170128
  4. NOTE: The counter bore area is where the pump shaft and mating splines pass through the rotor.

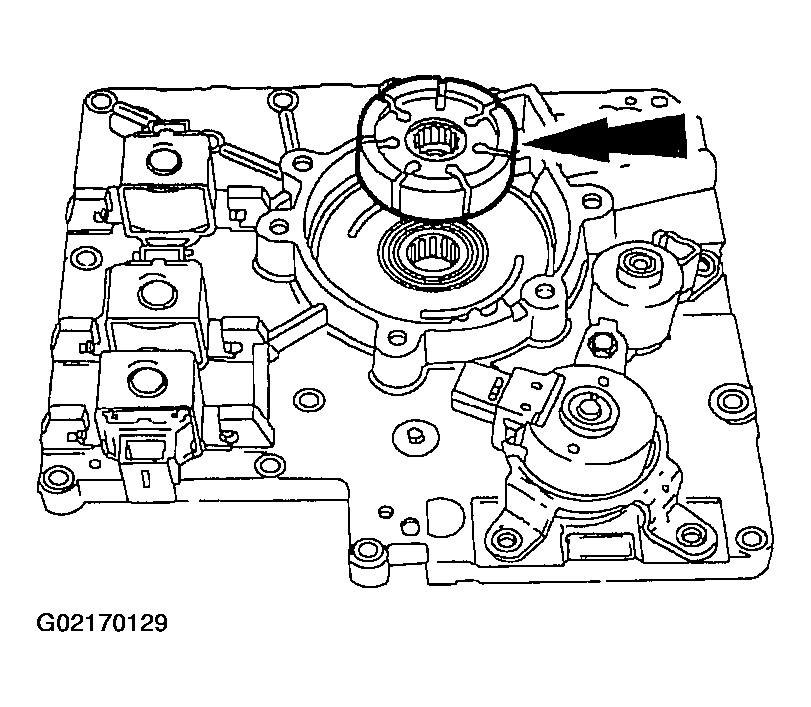

    Fig 4: Installing Rotor
    G02170129
  5. Install the rotor with the counter bore facing up.
  6. NOTE: The shiny portion of the vane blade is installed outward toward the pump bore ring.

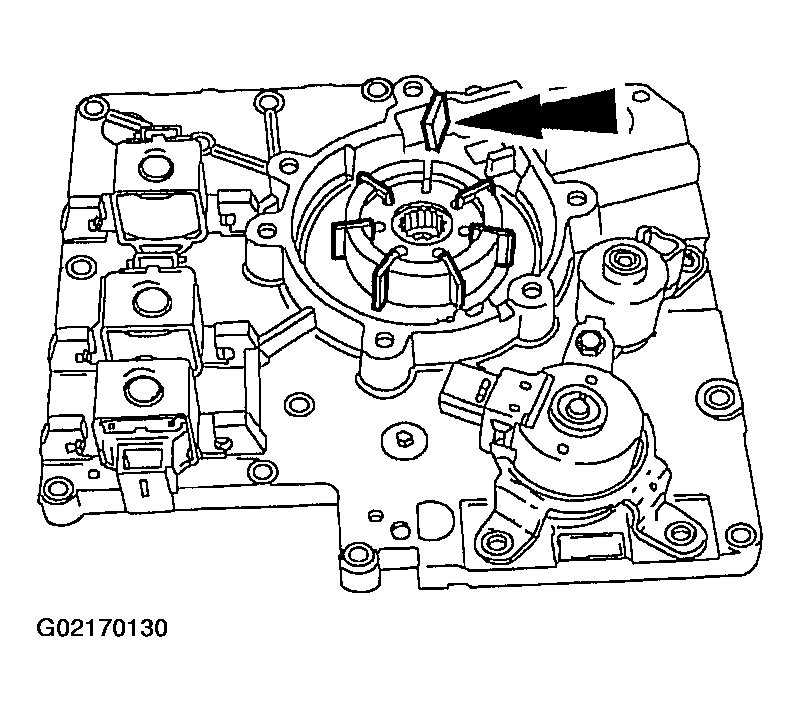

    Fig 5: Installing Pump Vanes
    G02170130
  7. Install the pump vanes.
  8. Install the pump body ring with the O-ring groove facing up.

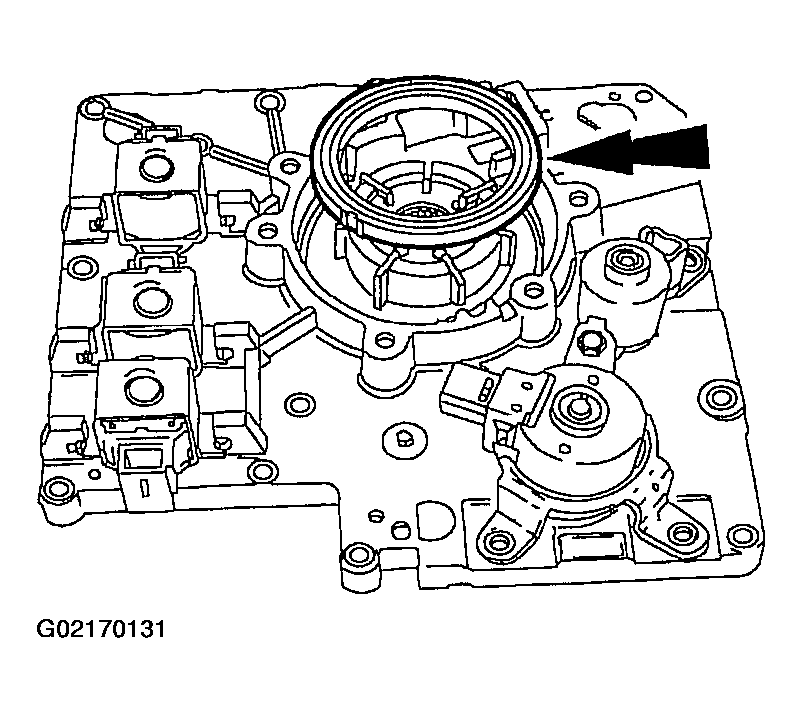

    Fig 6: Installing Pump Body Ring
    G02170131
  9. Install the top pump vane support ring.

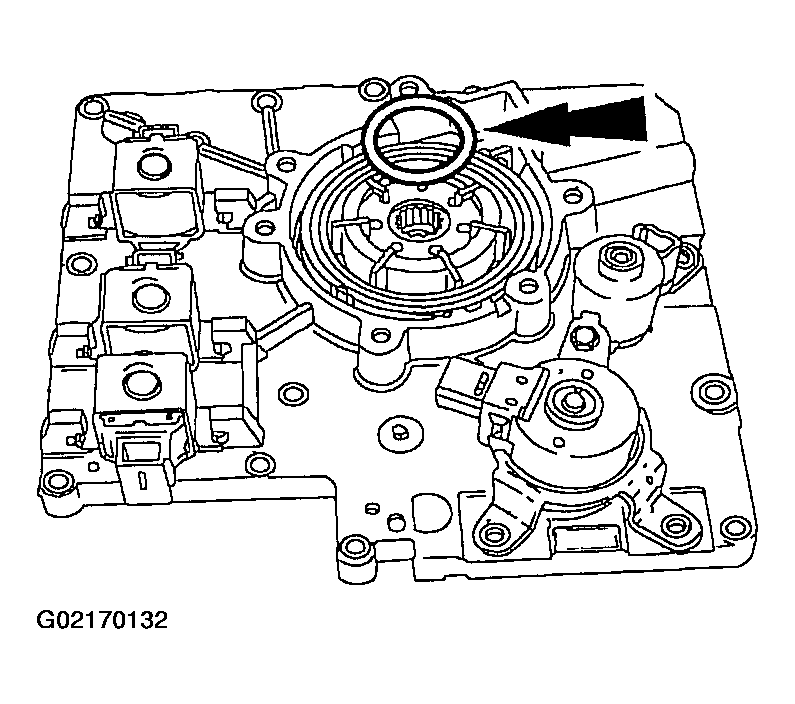

    Fig 7: Installing Top Pump Vane Support Ring
    G02170132
  10. Install the pump bore ring radial seal and support.
    1. Install the pump bore ring radial seal.
    2. Install the pump bore ring radial seal support.

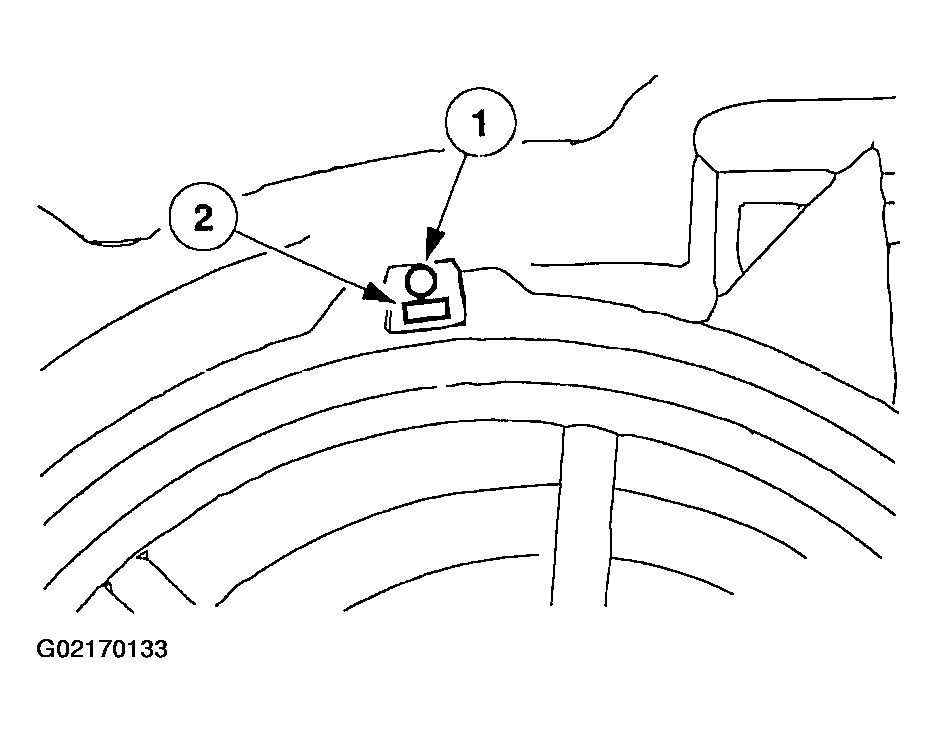

      Fig 8: Installing Pump Bore Ring Radial Seal & Support
      G02170133
  11. Install the metal bore ring and support seal.
    1. Install the support seal (O-ring).
    2. Install the bore ring side seal (metal).

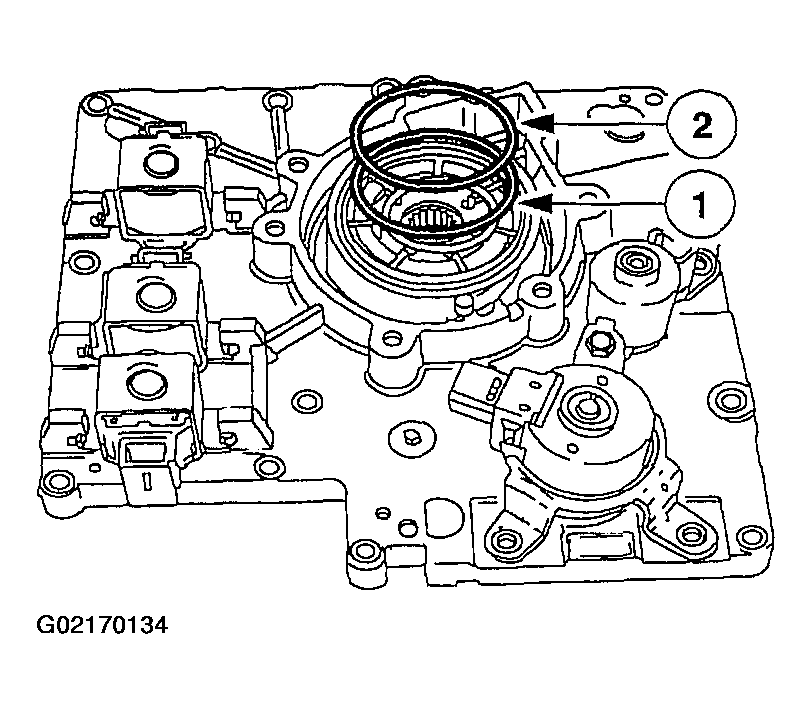

      Fig 9: Installing Metal Bore Ring And Support Seal
      G02170134
  12. Install the bore ring pivot pin.

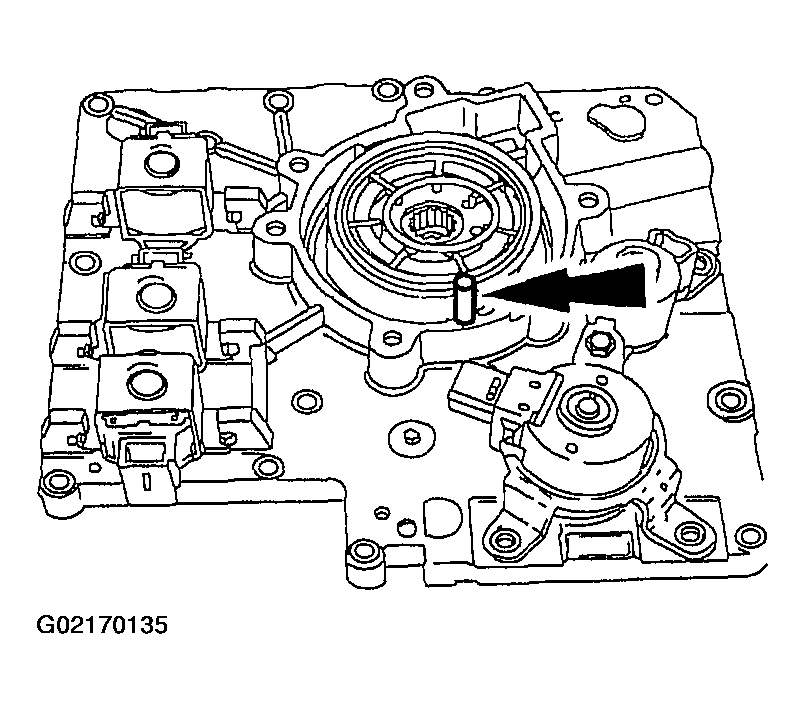

    Fig 10: Installing Bore Ring Pivot Pin
    G02170135
  13. CAUTION: Be sure the pump bore area is well cleaned. It is a hidden debris trap. Flow from the pump goes into the manual valve circuit, then passes into the EPC circuit. Pump pressure at this point is very high. Any debris not cleaned out here will be pumped through the transaxle on the first operation.

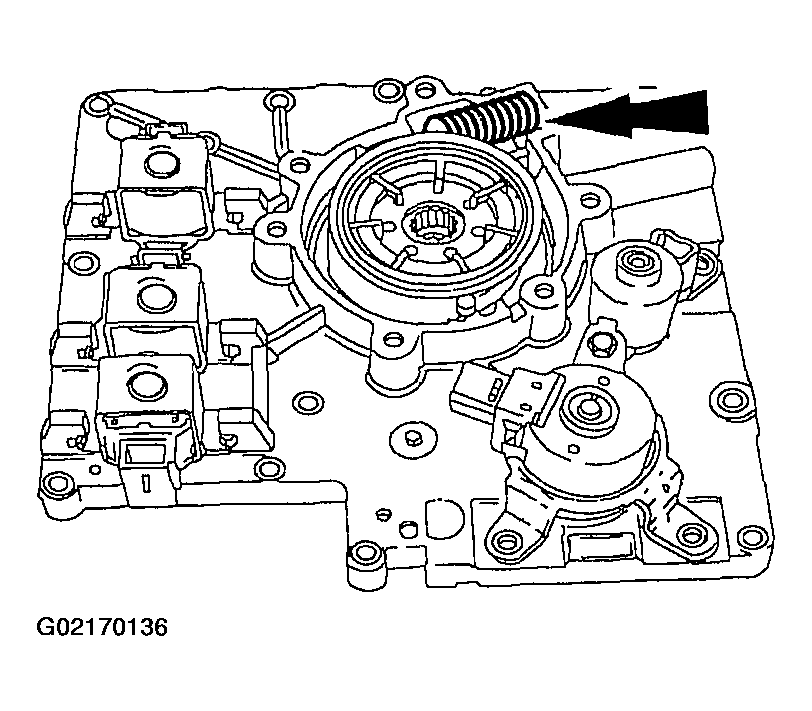

    Fig 11: Installing Pump Bore Ring Spring
    G02170136
  14. Install the pump bore ring spring between the case and the tab on the pump bore ring.
  15. NOTE: Use the pump shaft to align the pump cover during installation.

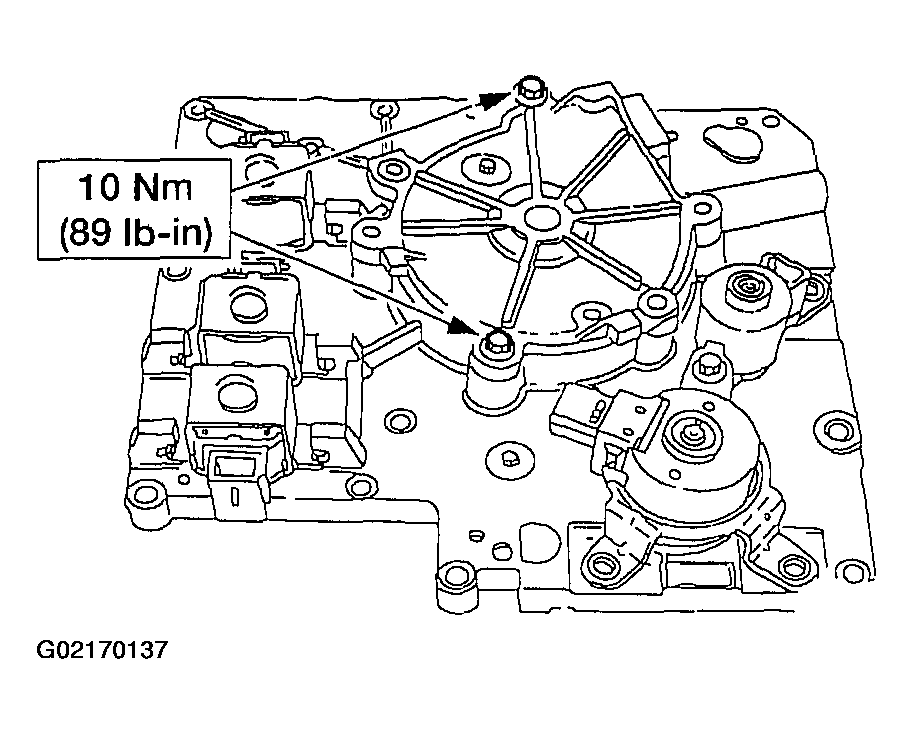

    Fig 12: Installing Pump Cover & Bolts
    G02170137
  16. Install the pump cover and bolts.
  17. Install the check balls.

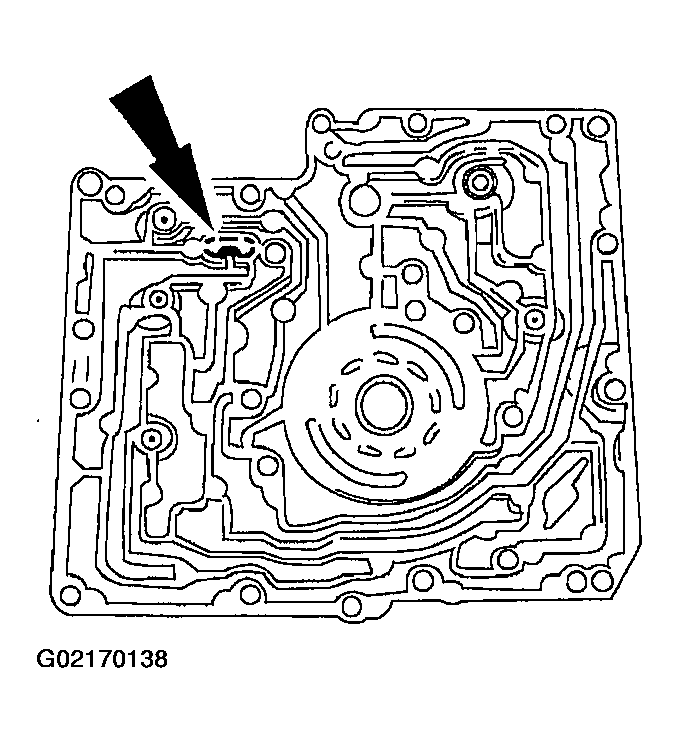

    Fig 13: Installing Check Balls
    G02170138
  18. Install the separator plate and the gaskets.

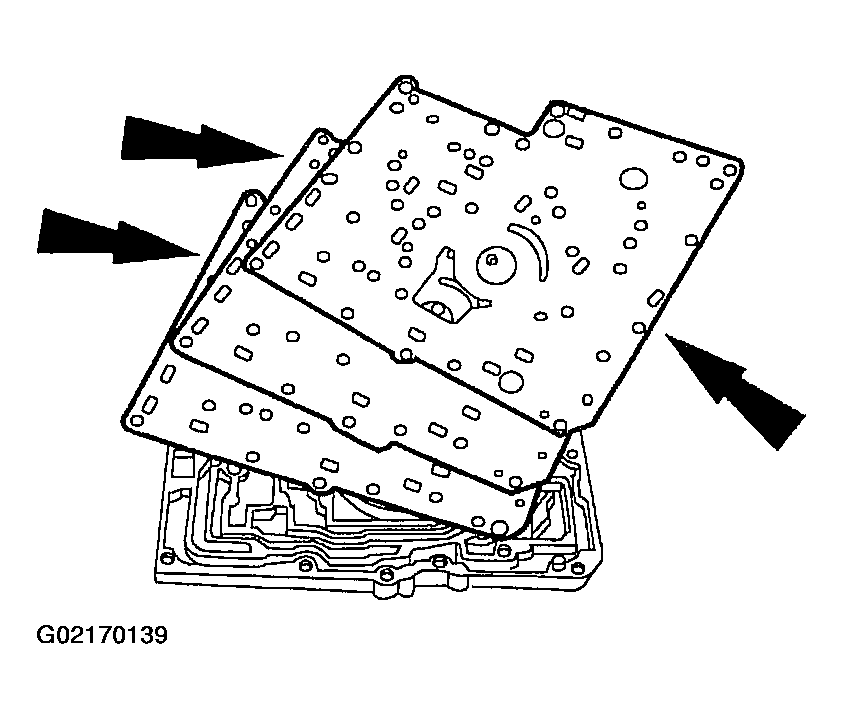

    Fig 14: Installing Separator Plate & Gaskets
    G02170139
  19. Install the bolts.

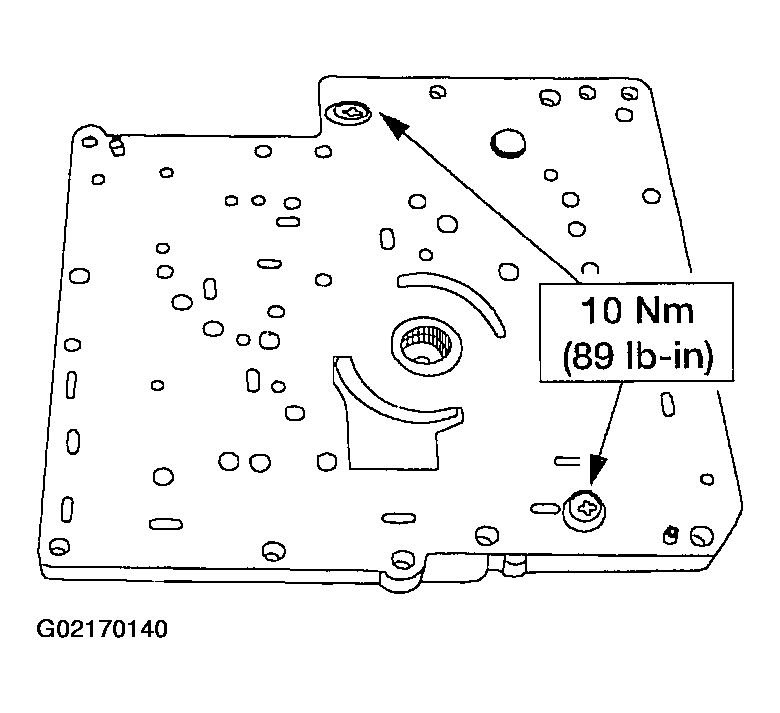

    Fig 15: Installing Bolts.
    G02170140
  20. Assemble the main control assembly.
    1. Install the main control valve body on the pump body assembly.
    2. Install the special tool in the valve body.
      Fig 16: Installing Special Tool In Valve Body
      G02170141
  21. Install the bolts.

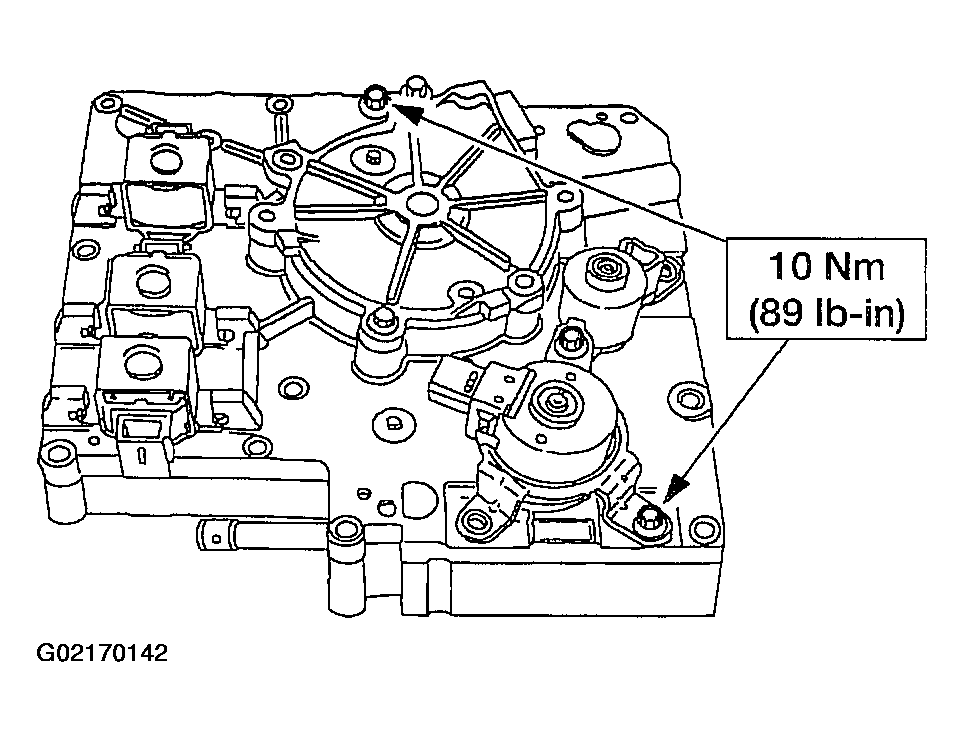

    Fig 17: Installing Bolts
    G02170142
