Pump Assembly: Disassembly

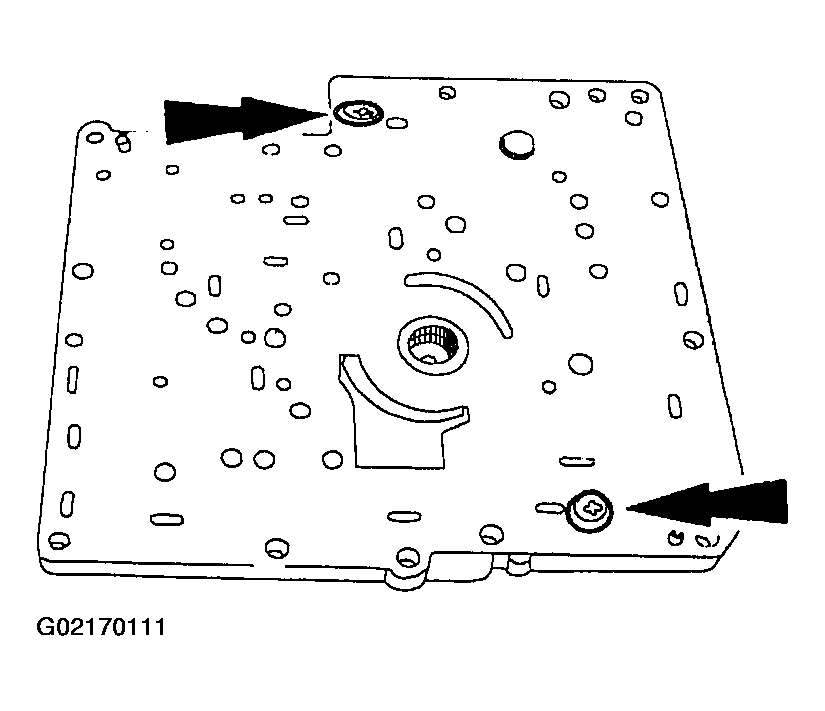

Remove the bolts.

Fig 1: Removing Bolts.

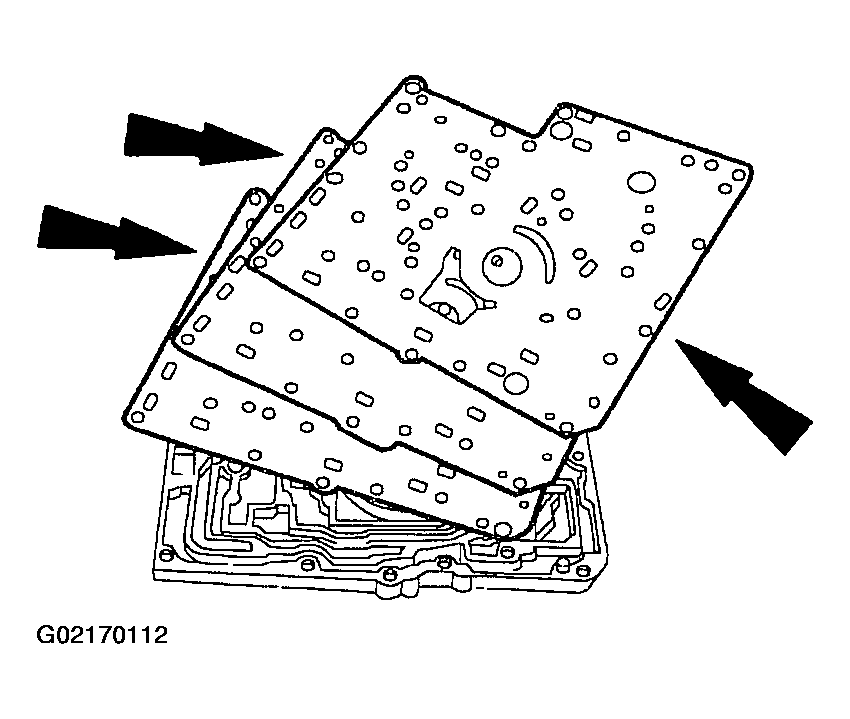

Remove the valve body separator plates and gaskets.

Fig 2: Removing Valve Body Separator Plates & Gaskets

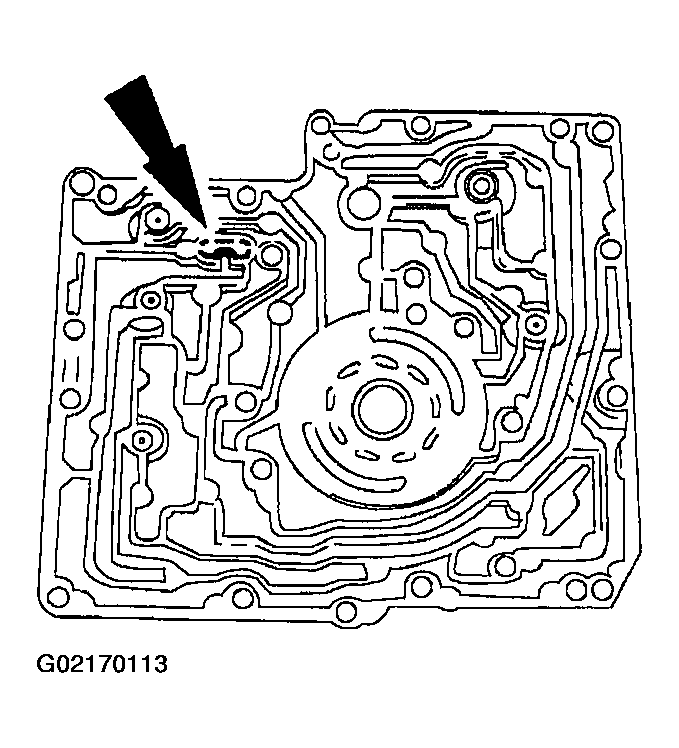

Remove the check ball and note the location.

Fig 3: Removing Check Ball

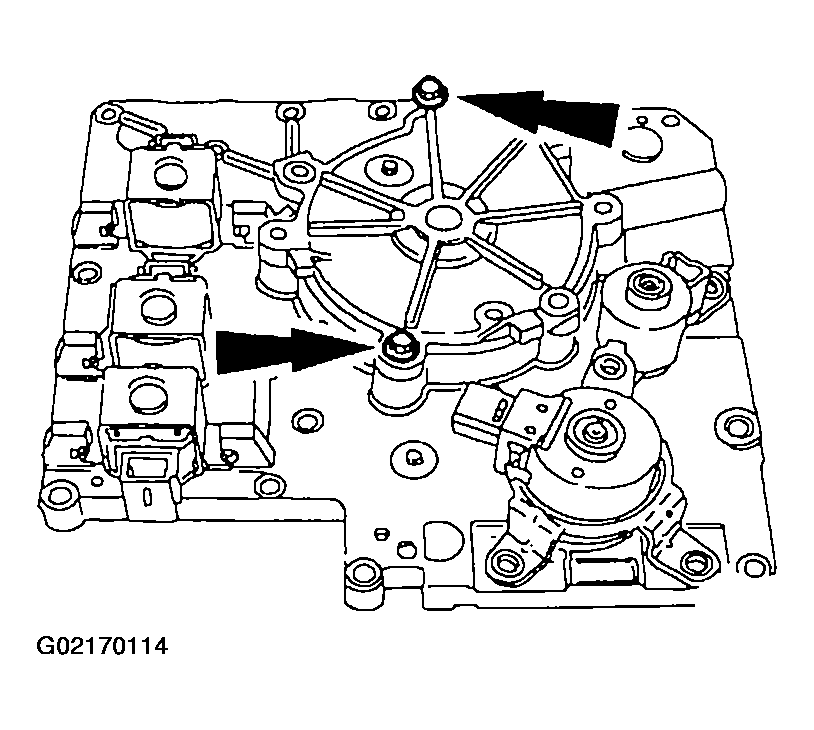

Remove the bolts and the pump cover.

Fig 4: Removing Pump Cover Bolts

WARNING: Use extreme caution when removing spring to prevent personal injury.

CAUTION: Place a piece of cardboard or a suitable material under a screwdriver to prevent damage to the housing gasket surface.

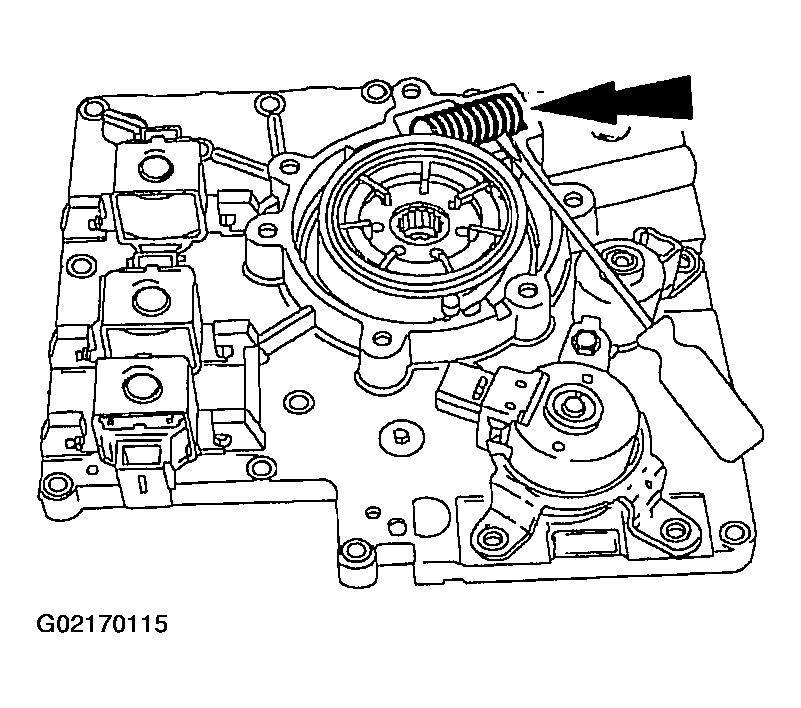

Fig 5: Removing Bore Ring Spring

G02170115

Remove the bore ring spring.

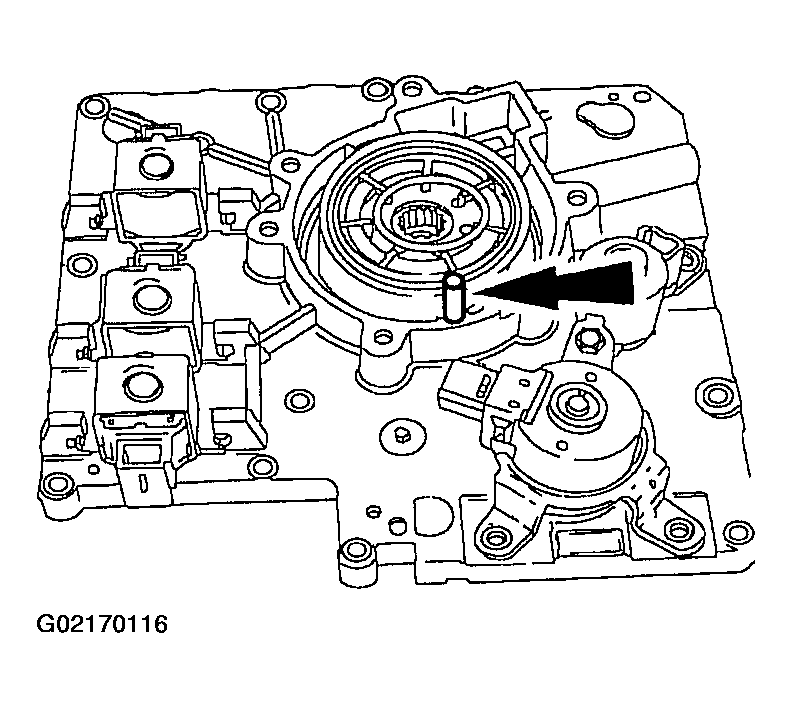

Remove the pump bore ring pin.

Fig 6: Removing Pump Bore Ring Pin

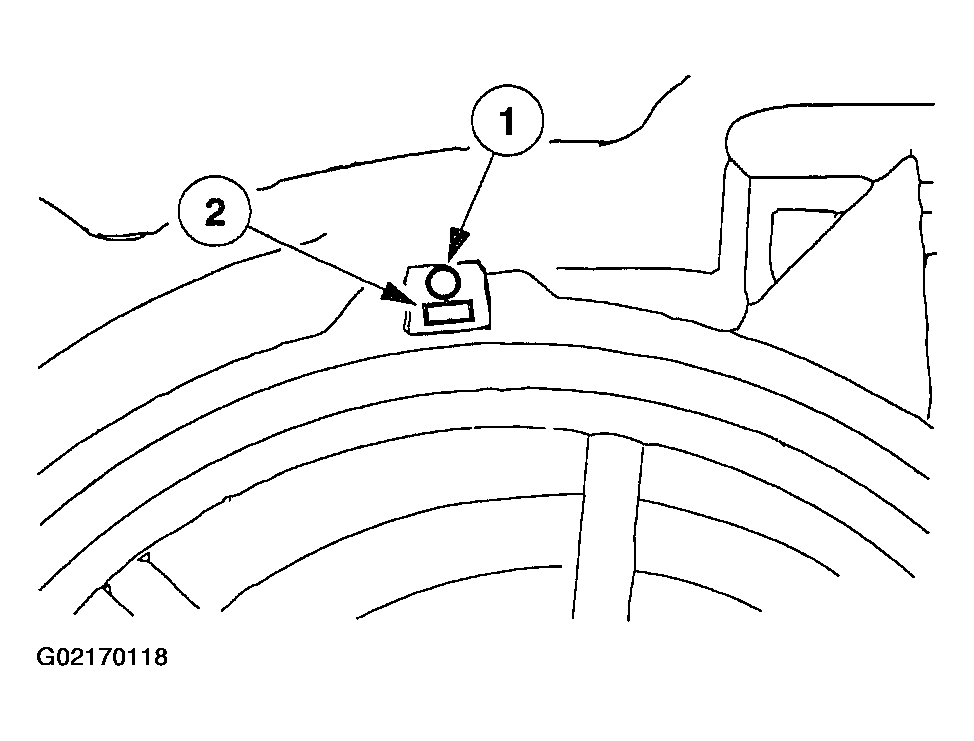

Remove the metal bore ring and support seal.
1. Remove the bore ring side seal (metal).
2. Remove the support seal (O-Ring).

  Fig 7: Removing Metal Bore Ring & Support Seal

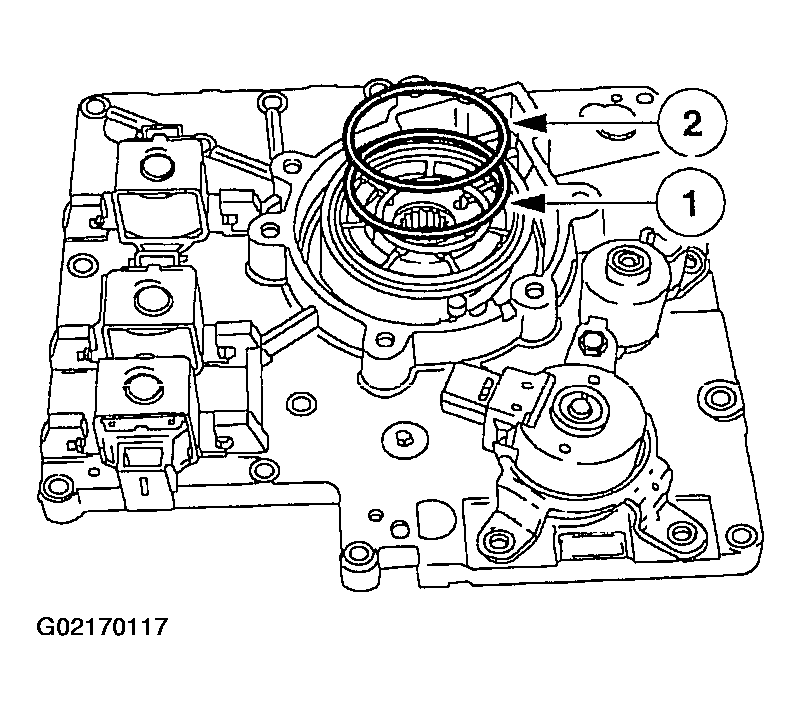

Remove the pump bore ring radial seal and support.
1. Remove the pump bore ring radial seal.
2. Remove the pump bore ring radial seal support.

  Fig 8: Removing Pump Bore Ring Radial Seal And Support

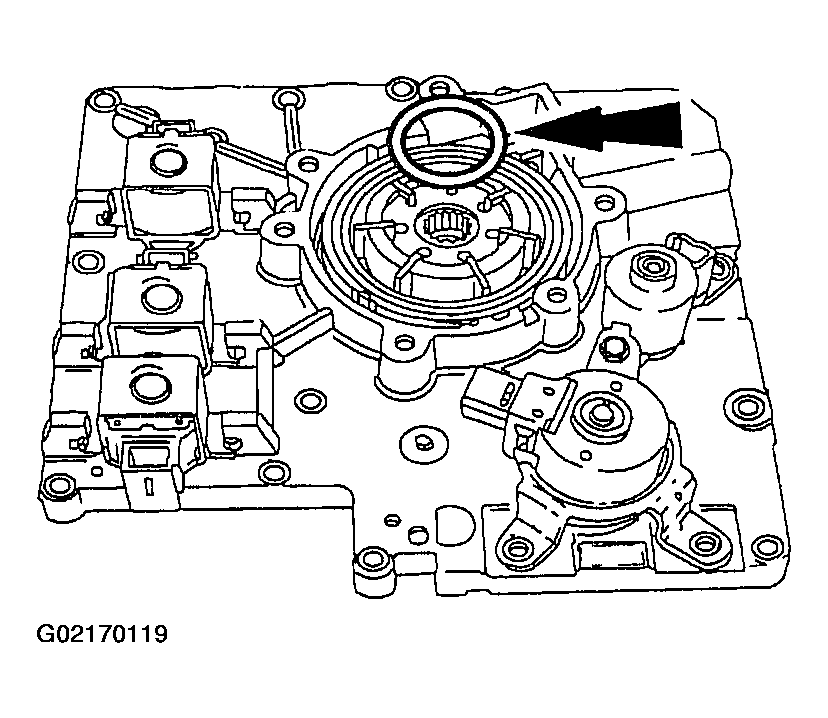

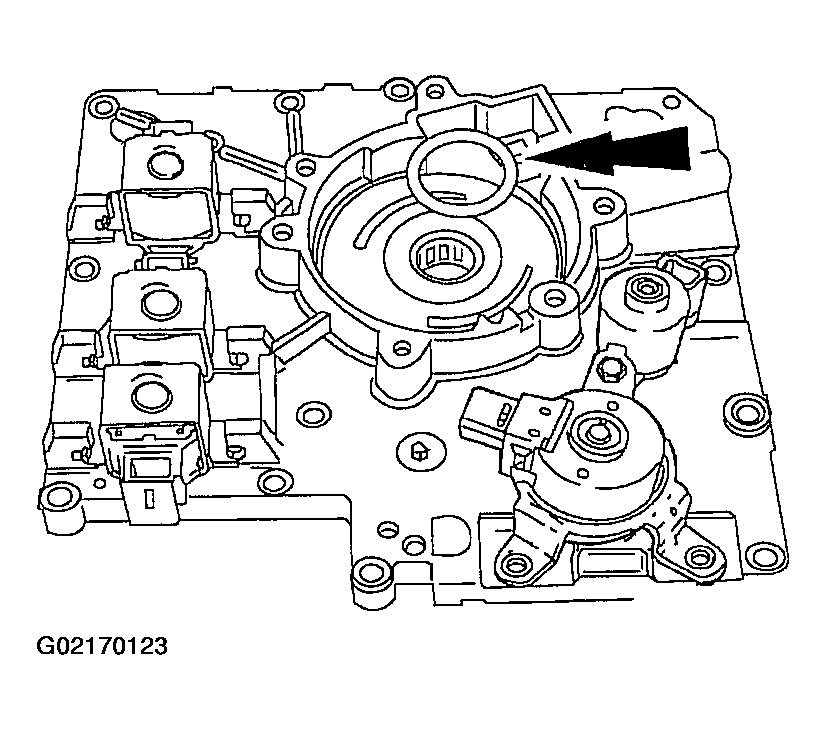

Remove the top pump vane support ring.

Fig 9: Removing Top Pump Vane Support Ring

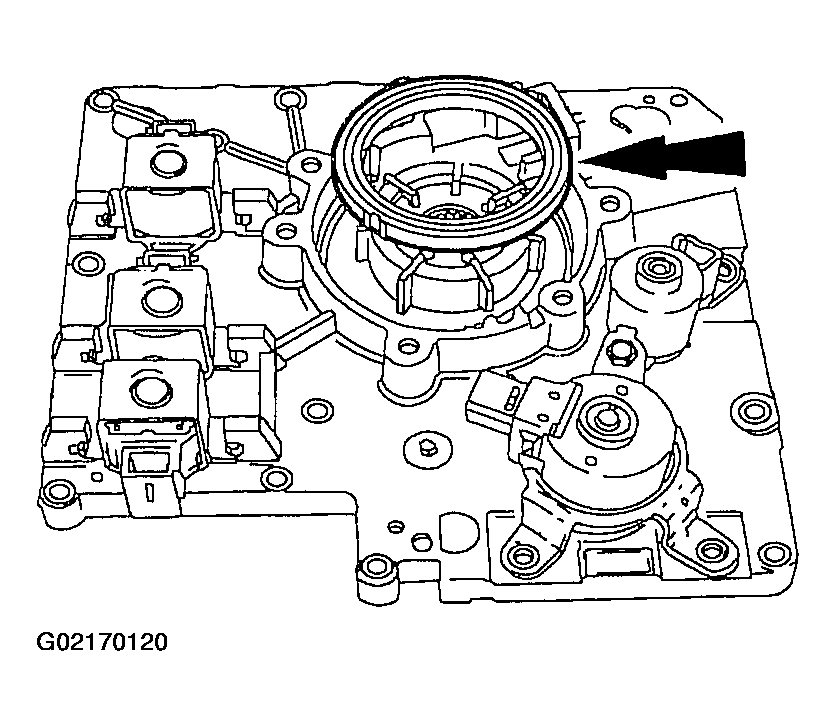

Remove the outer pump bore ring.

Fig 10: Removing Outer Pump Bore Ring

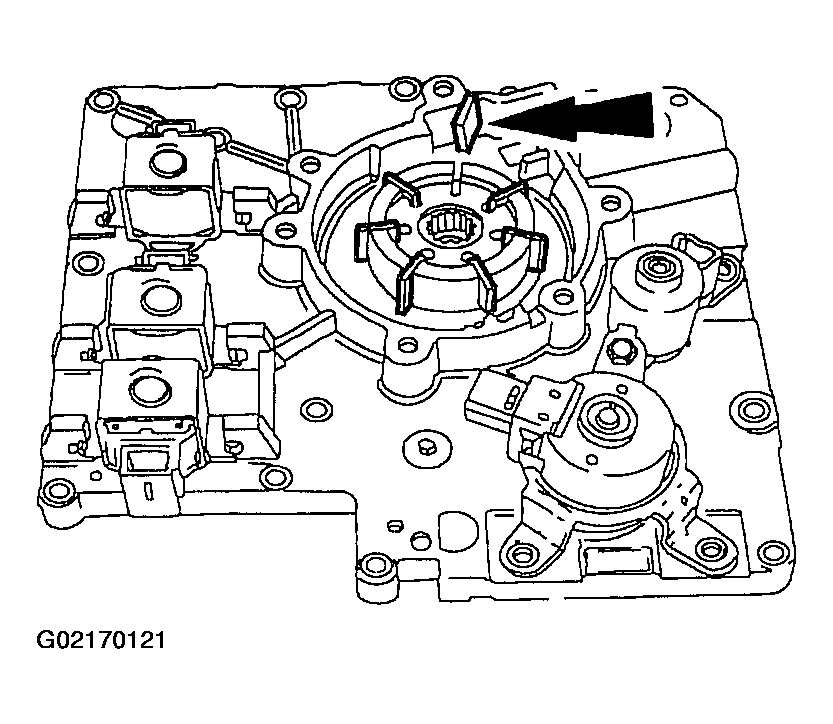

Remove the vanes.

Fig 11: Removing Vanes

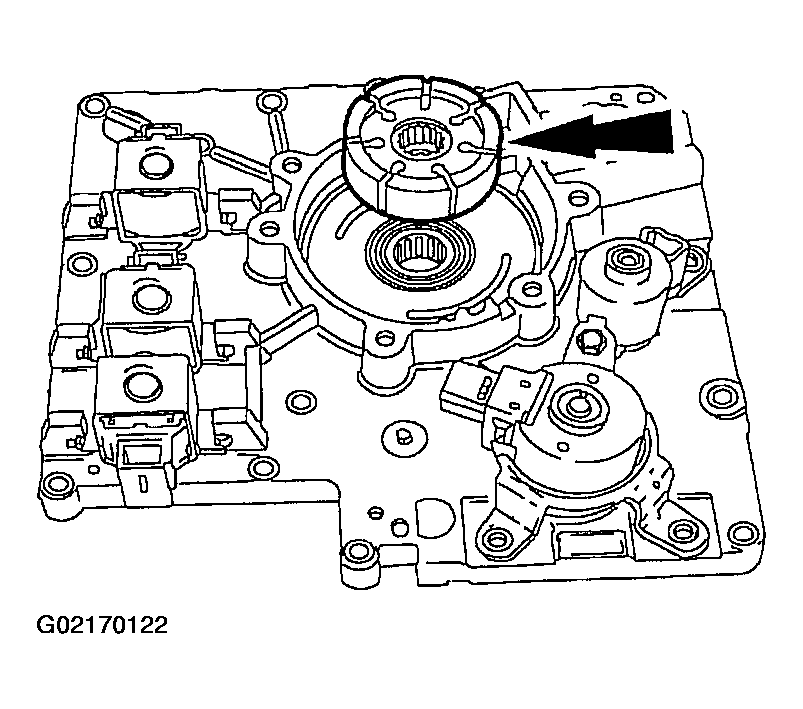

Remove the rotor.

Fig 12: Removing Rotor
Remove the bottom pump vane support ring.

Fig 13: Removing Bottom Pump Vane Support Ring

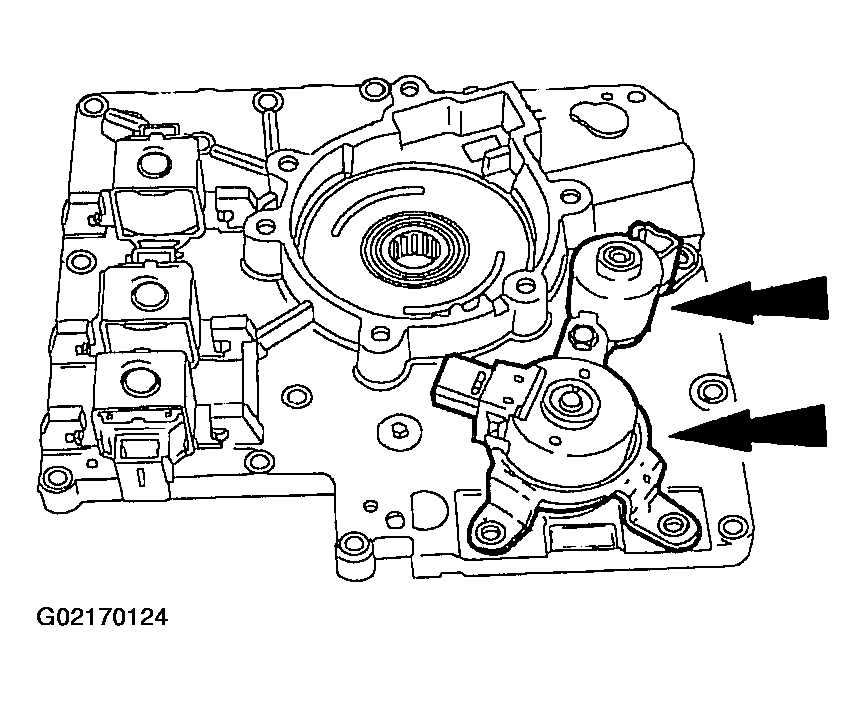

Remove the EPC, TCC solenoids and seals.
- Remove the bolts.
- Remove the EPC, TCC solenoids.

  Fig 14: Removing EPC, TCC Solenoids & Seals

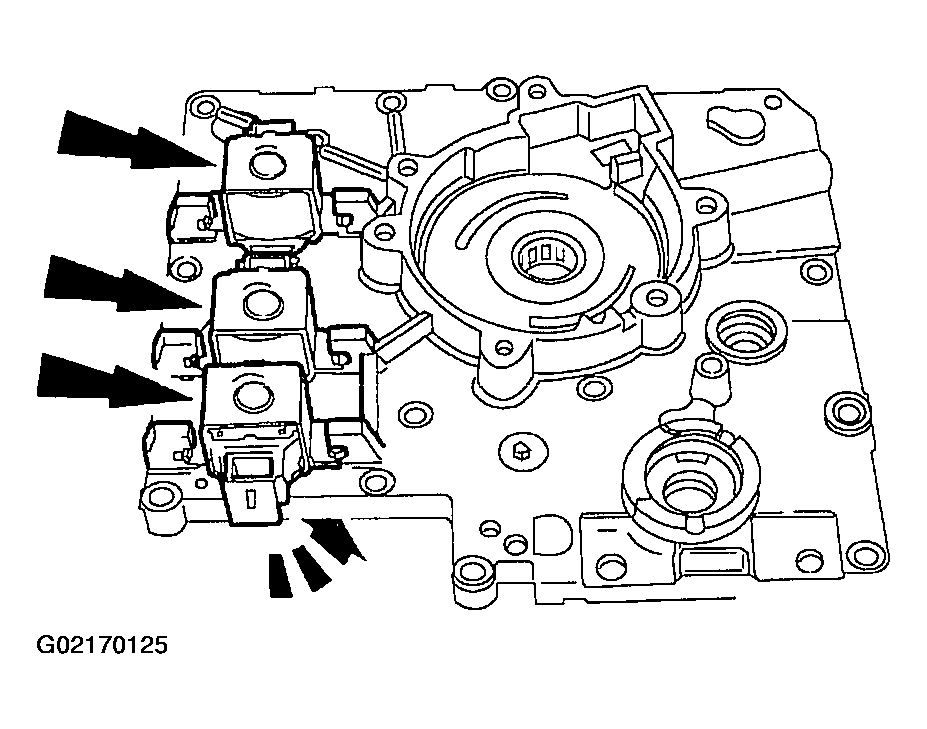

NOTE: The shift solenoids are interchangeable. Take note of the shift solenoid connector orientation.

Fig 15: Removing Shift Solenoids

G02170125

Remove the shift solenoids by pressing locking tab with a screwdriver and rotating them.
