Sun and Shell Assembly - Assembly: Assembly

  1. Install the direct one-way clutch assembly.
    1. Install the No. 7 thrust washer.
    2. Install the direct one-way clutch assembly.

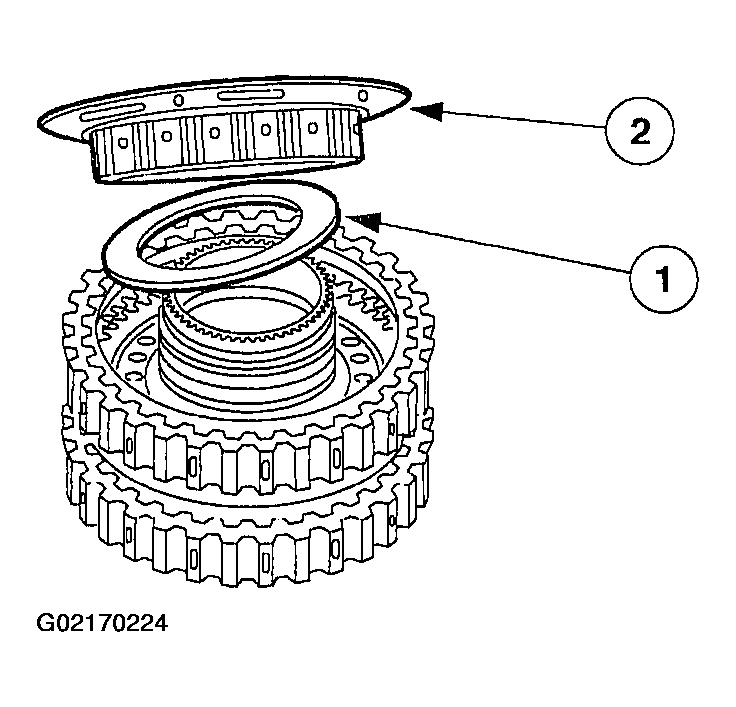

      Fig 1: Installing Direct One-Way Clutch Assembly
      G02170224
    2. NOTE: Lightly coat the O-rings with petroleum jelly.

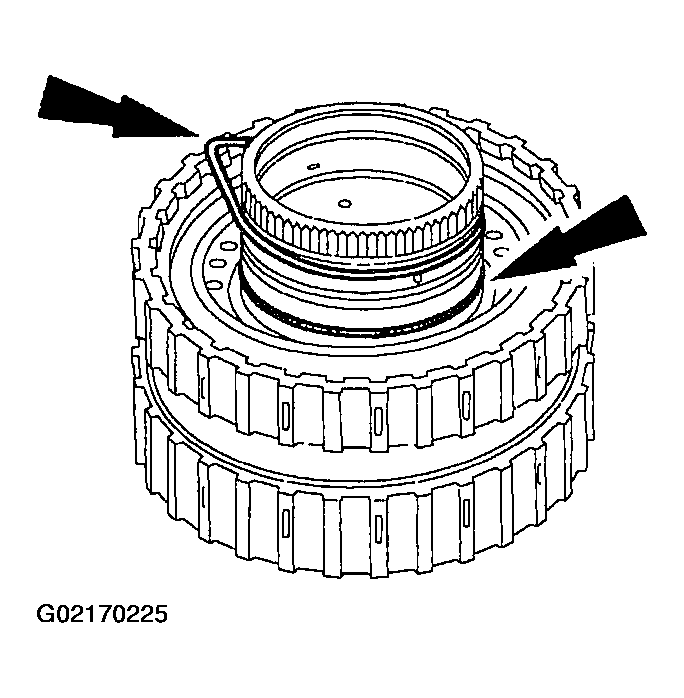

    Fig 2: Installing New O-Rings
    G02170225
  2. Install new O-rings.
  3. Install the forward clutch assembly.

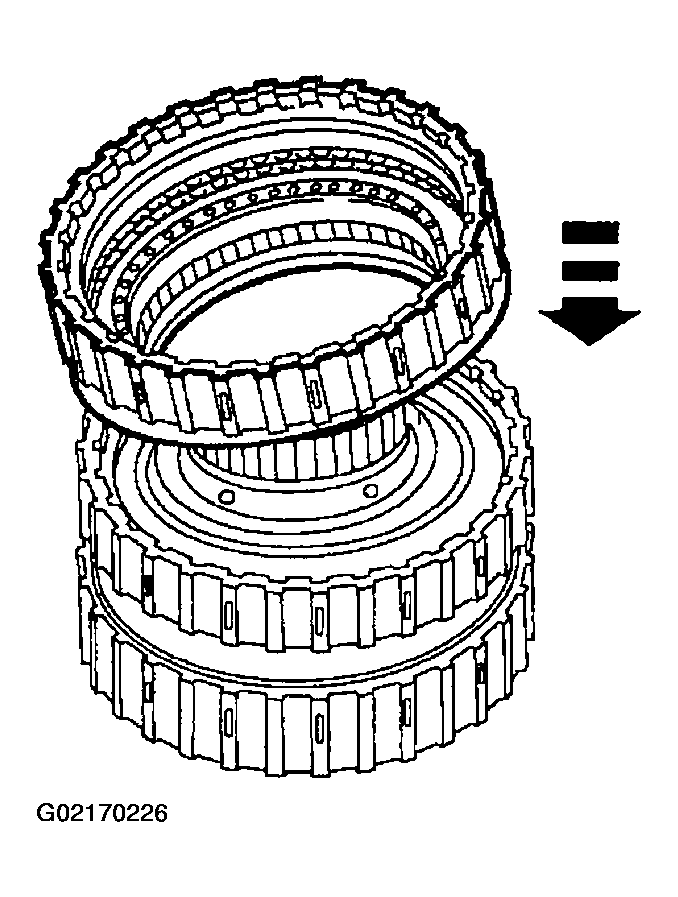

    Fig 3: Installing Forward Clutch Assembly
    G02170226
    4. NOTE: The spring retainer assembly contains both oval and circular holes. Make sure that the washer tabs lock into the oval holes.

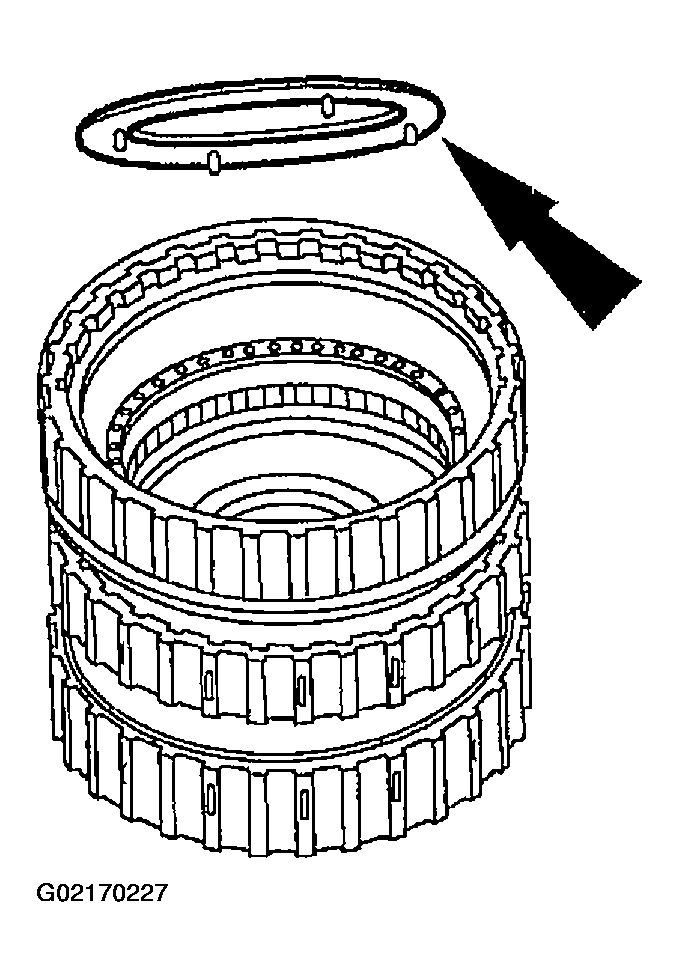

    Fig 4: Installing No. 6 Rear Clutch Sun Gear Thrust Washer
    G02170227
  4. Install the No. 6 rear clutch sun gear thrust washer.
  5. Install the overdrive drum.

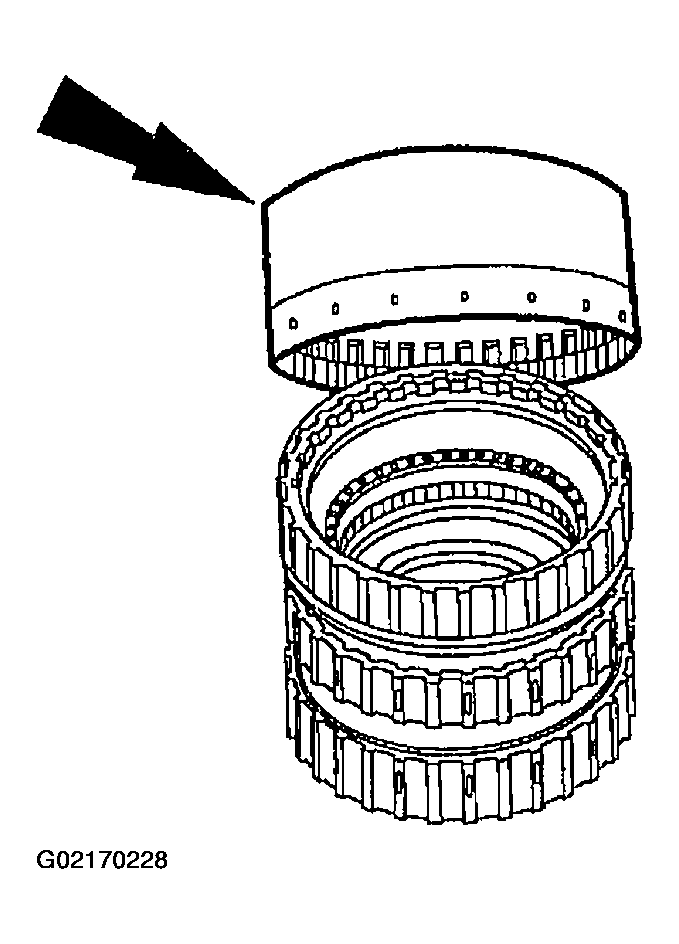

    Fig 5: Installing Overdrive Drum
    G02170228
    6. NOTE: The lip on the bearing goes over the hub.
    Fig 6: Installing No. 10 Thrust Bearing
    G02170229
  6. Using petroleum jelly to hold the parts in place, install the No. 10 thrust bearing.
  7. Install the rear clutch hub and the No. 10 thrust bearing.

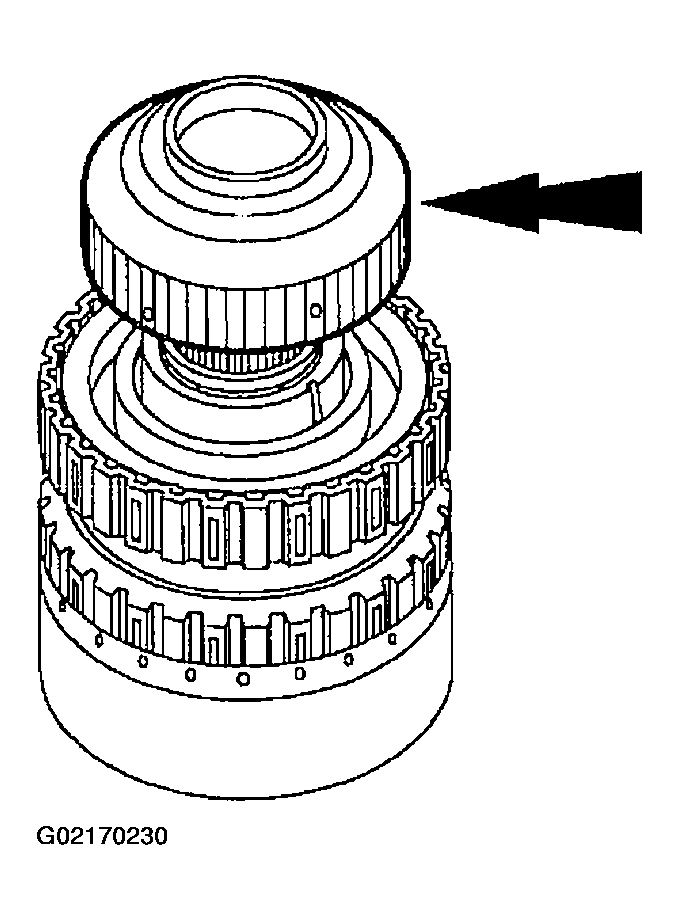

    Fig 7: Installing Rear Clutch Hub & No. 10 Thrust Bearing
    G02170230
    8. NOTE: The lip on the bearing goes down over the hub.

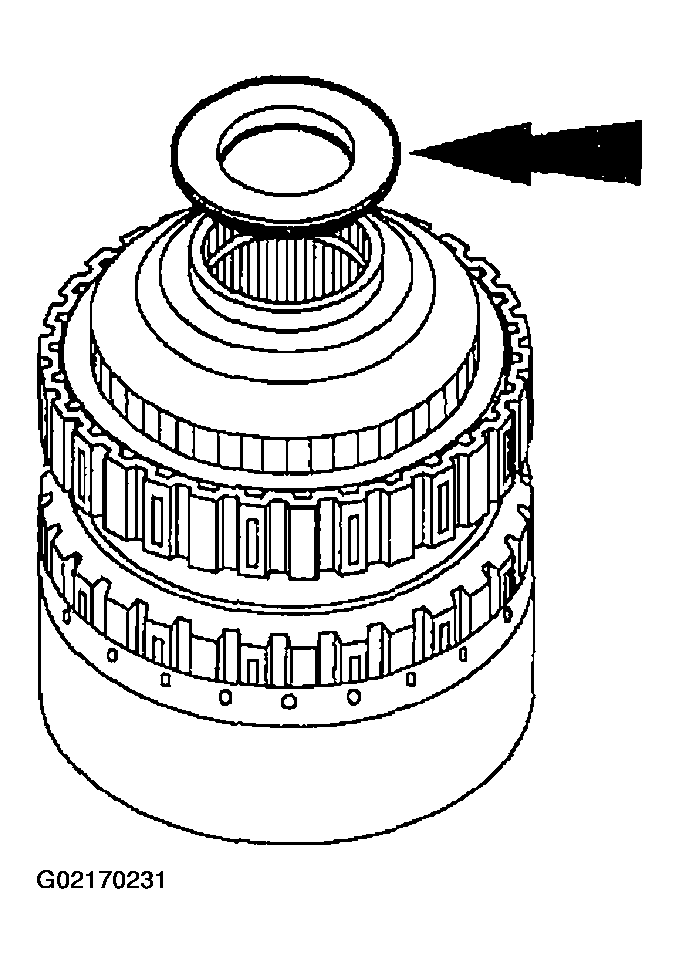

    Fig 8: Installing No. 11 Thrust Bearing
    G02170231
  8. Install the No. 11 thrust bearing.
  9. Install the front sun shell.

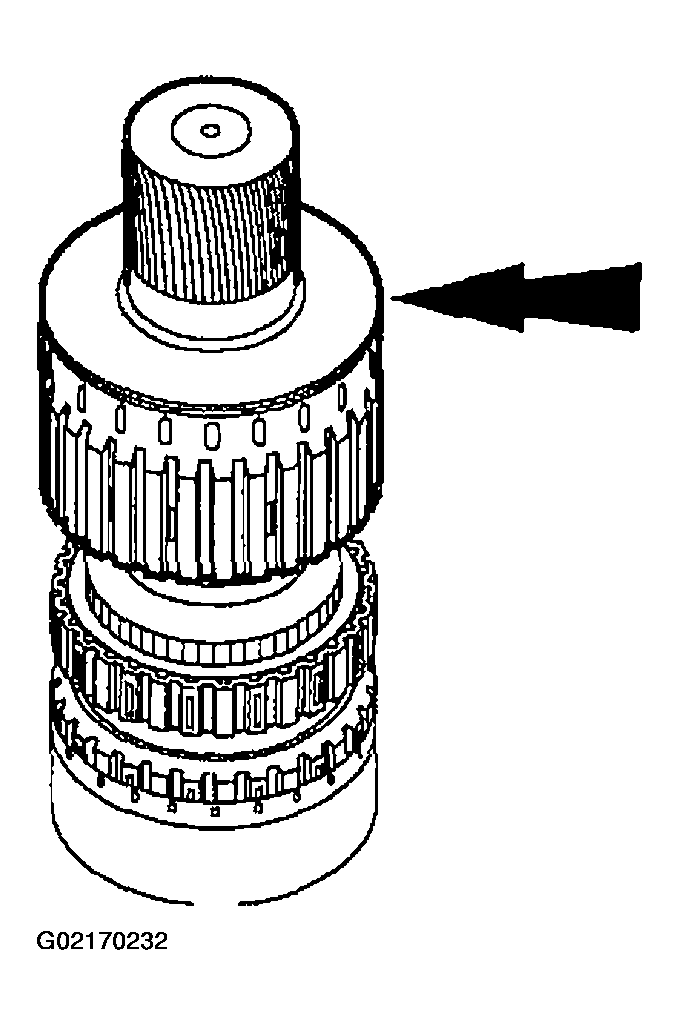

    Fig 9: Installing Front Sun Shell
    G02170232
