Main Control Valve Body: Disassembly

NOTE: The valve body separator plate has a bonded gasket.

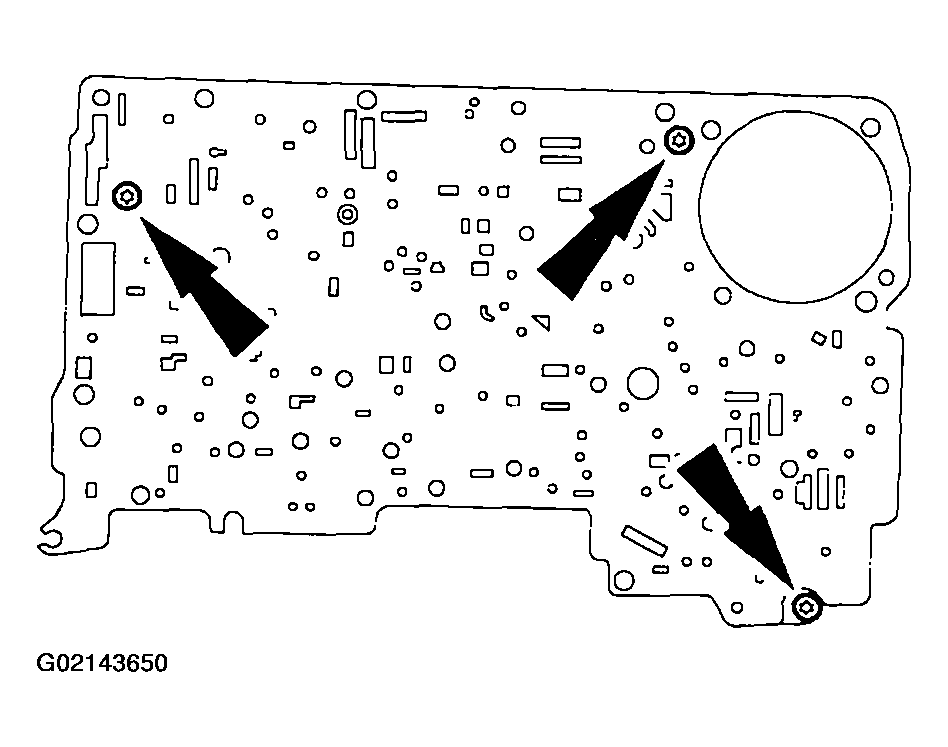

Fig 1: Identifying Valve Body Separator Plate Bolts

G02143650

Remove the valve body separator plate.
Remove the pressure control limit relief valve and spring.

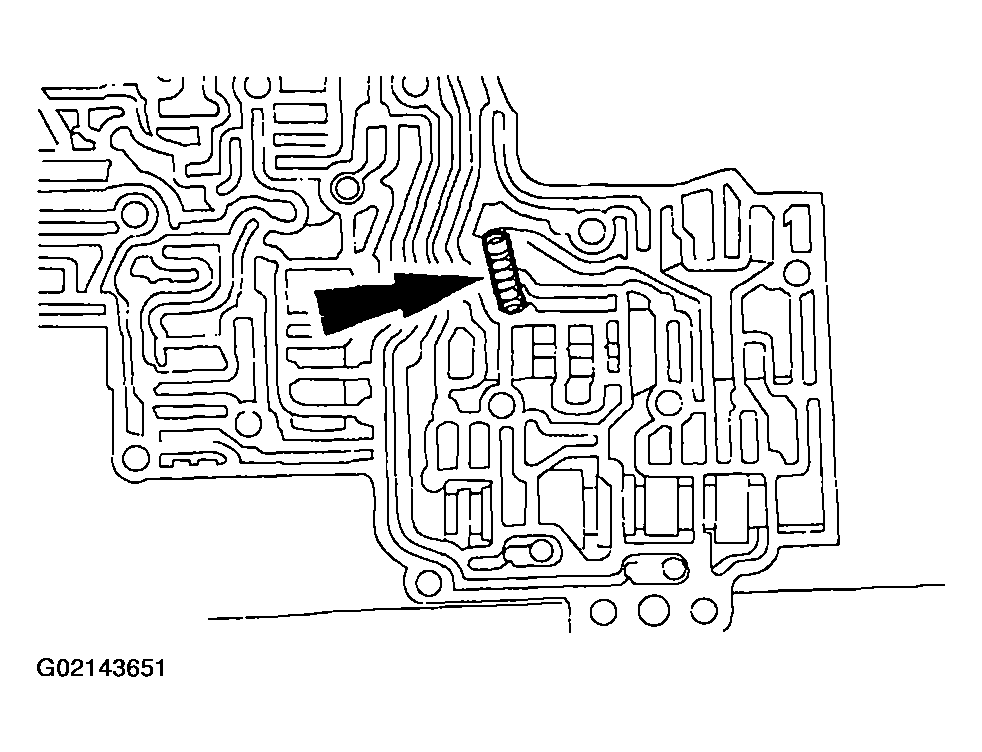

Fig 2: Identifying Pressure Control Limit Relief Valve & Spring
Remove the check balls.

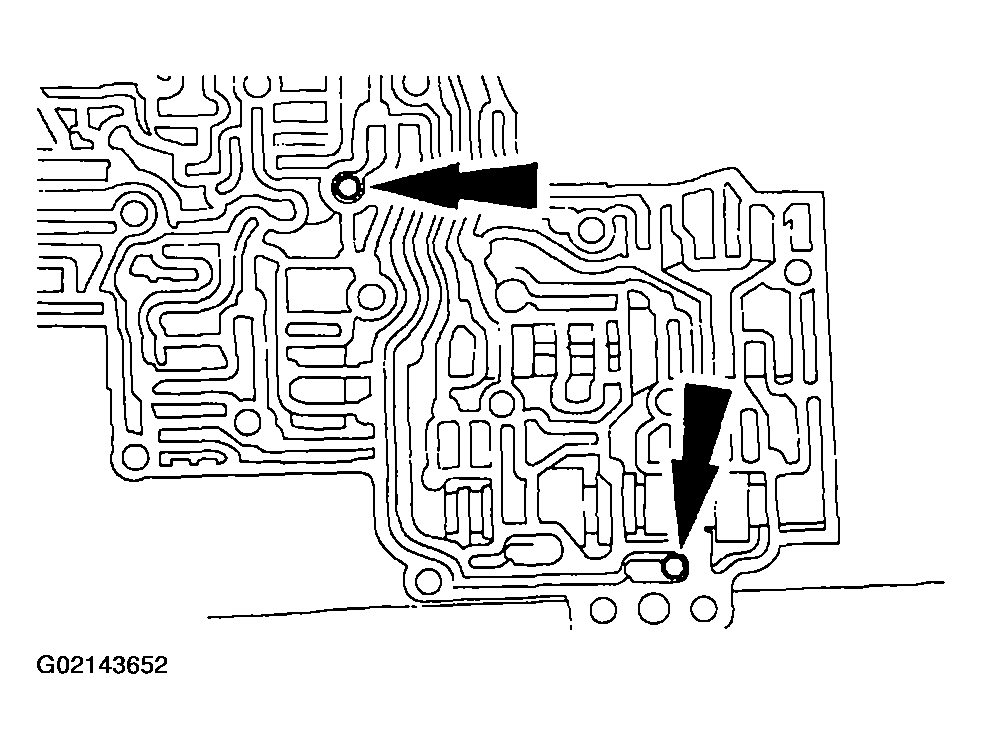

Fig 3: Identifying Main Control Valve Body Check Balls

NOTE: Refer to the disassembled view. See Figure and Figure .

Disassemble the main control valve body.
