Driven Sprocket Support: Assembly

  1. If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.

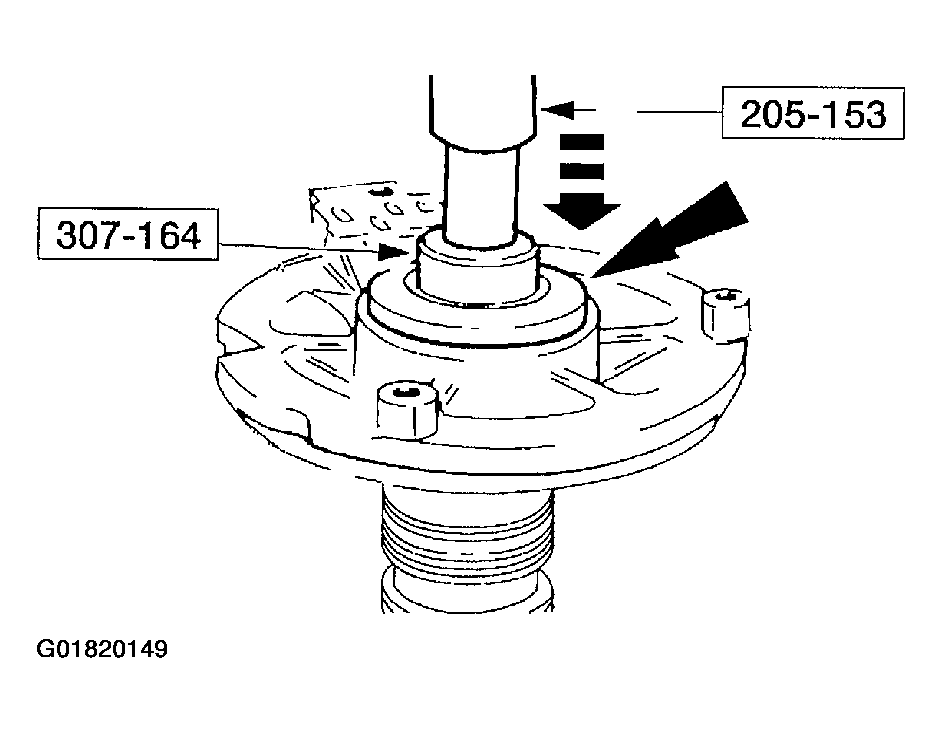

    Fig 1: Installing Driven Sprocket Bearing
    G01820149Courtesy of FORD MOTOR CO.
  2. Make sure the seals are mated correctly.

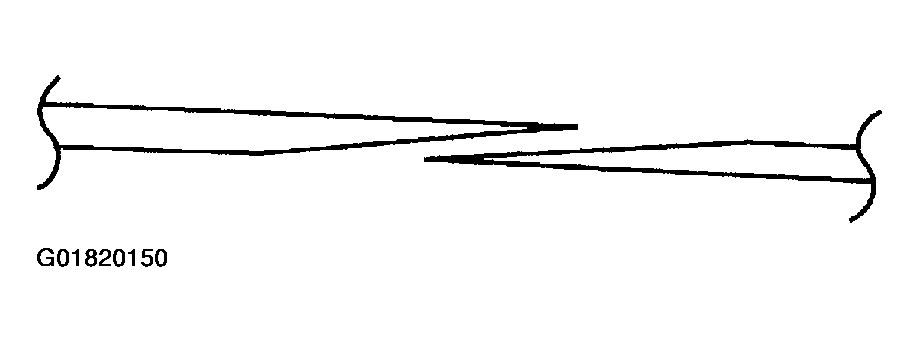

    Fig 2: Correct Seal Mating
    G01820150Courtesy of FORD MOTOR CO.
    3. CAUTION: The seal rings must be installed correctly. Transmission failure could result.
    NOTE: Make sure that the seals are mated correctly.
  3. Install new Teflon® seals and the No. 5 thrust washer.

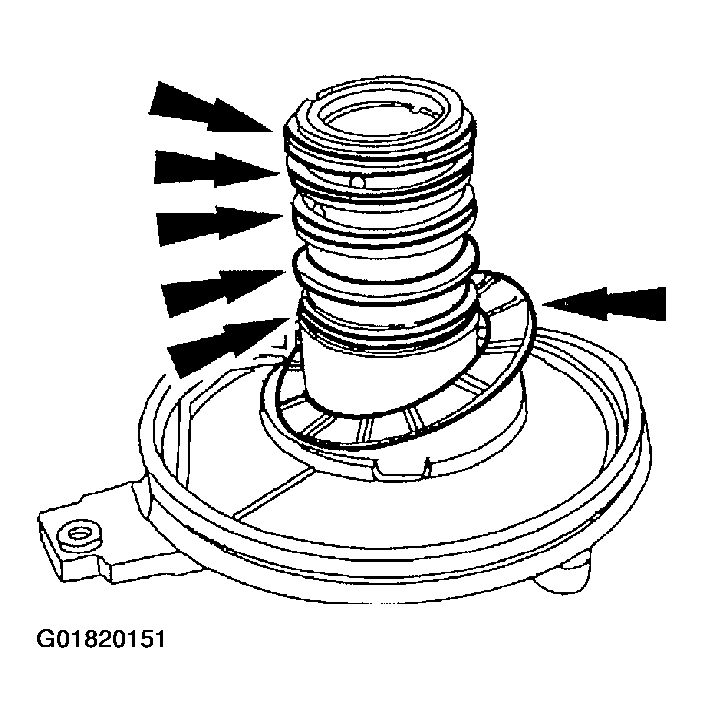

Fig 3: Installing Teflon® Seals & Thrust Washer
G01820151Courtesy of FORD MOTOR CO.
