Overdrive Servo: Assembly

    NOTE: Lubricate the piston seals with petroleum jelly prior to installation.
  1. Install the overdrive servo piston and rod assembly.
  2. Install the overdrive servo piston return spring.

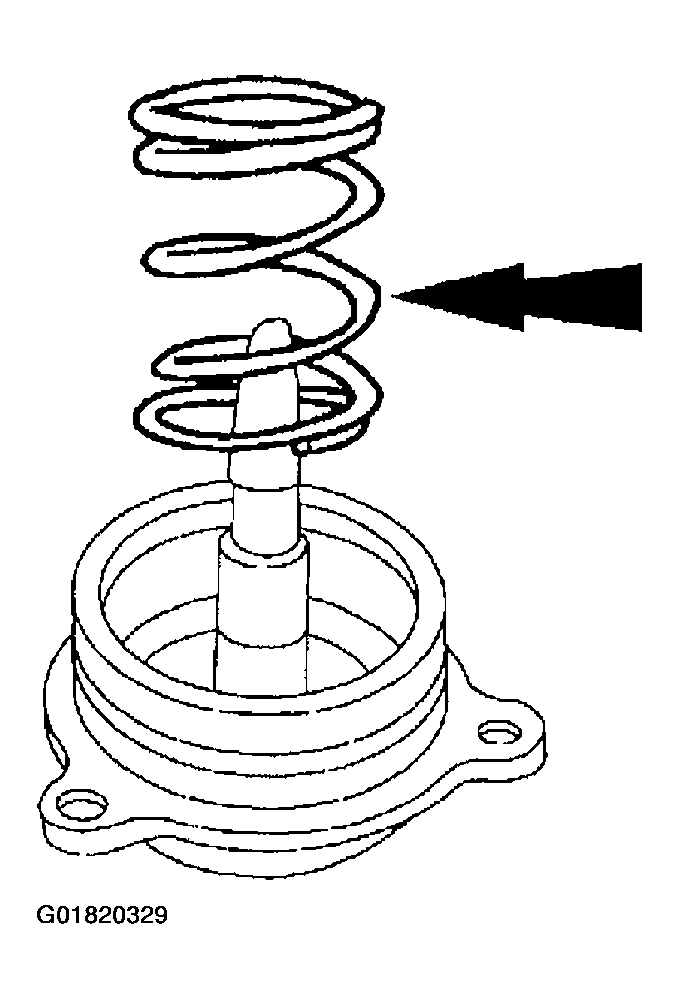

Fig 1: Installing Overdrive Servo Piston Return Spring
G01820329Courtesy of FORD MOTOR CO.
