Pump Assembly: Notes

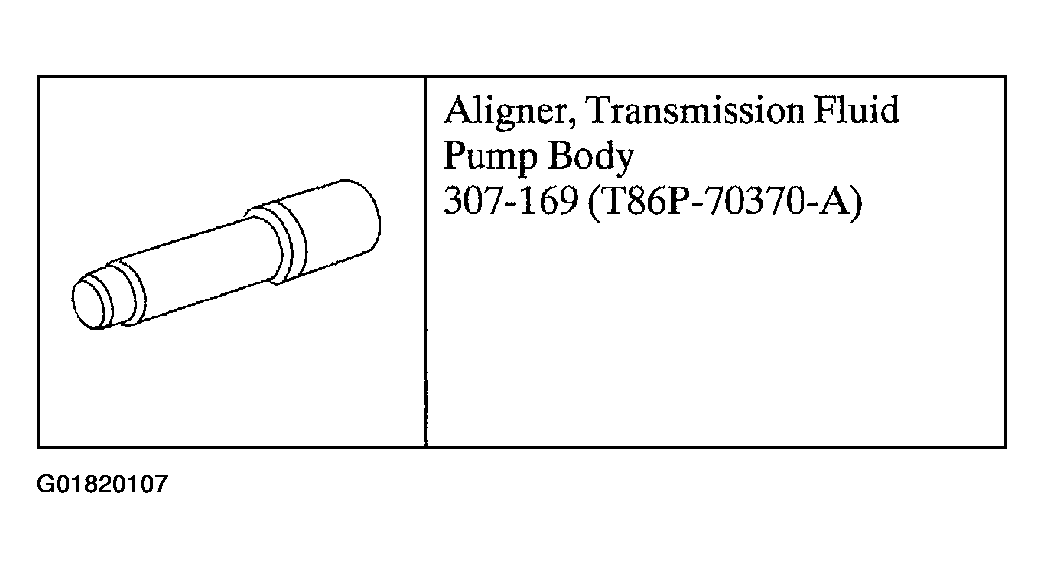

Fig 1: Special Tool(s)
G01820107Courtesy of FORD MOTOR CO.

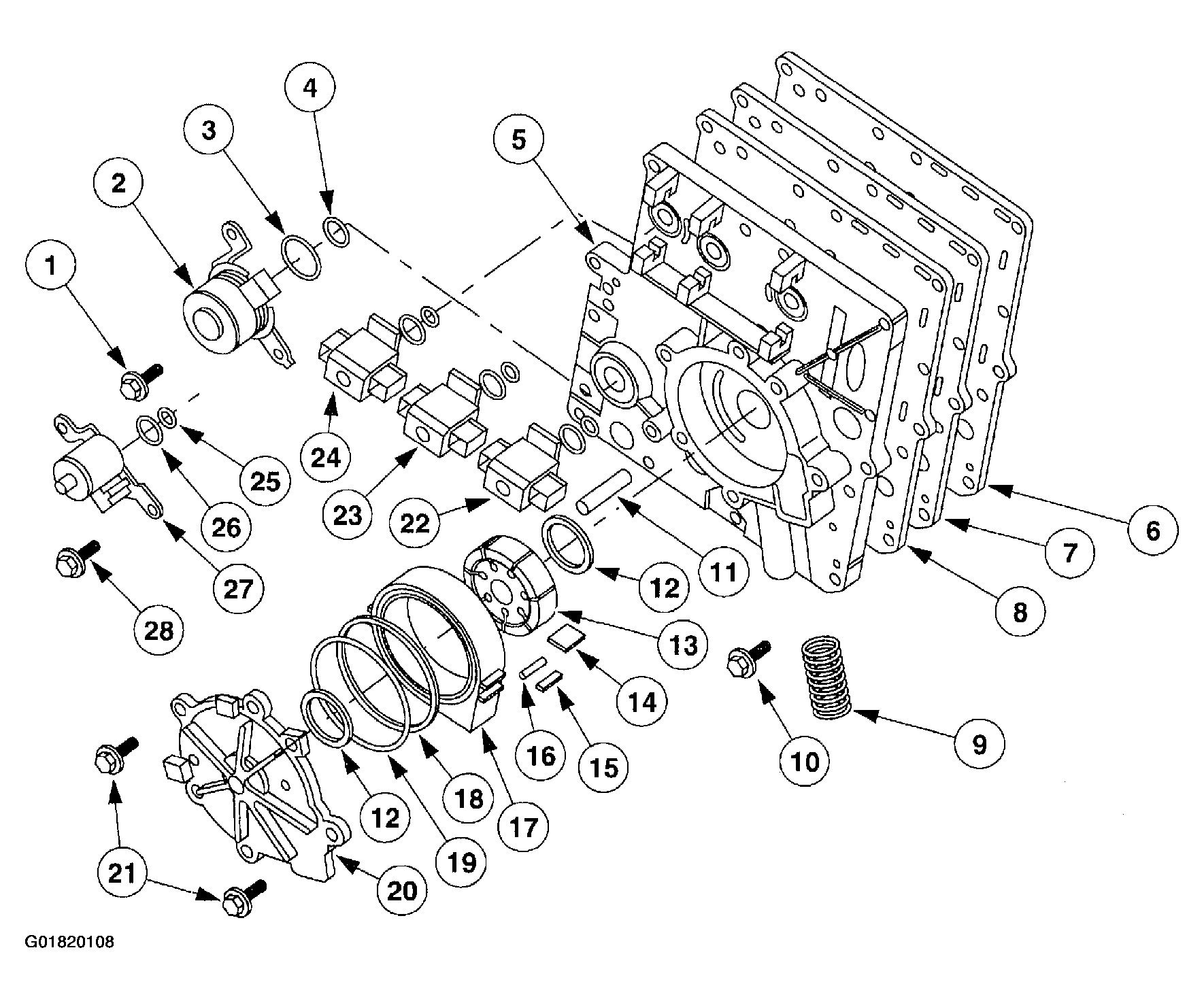

Fig 2: Pump Assembly - Component View
G01820108Courtesy of FORD MOTOR CO.

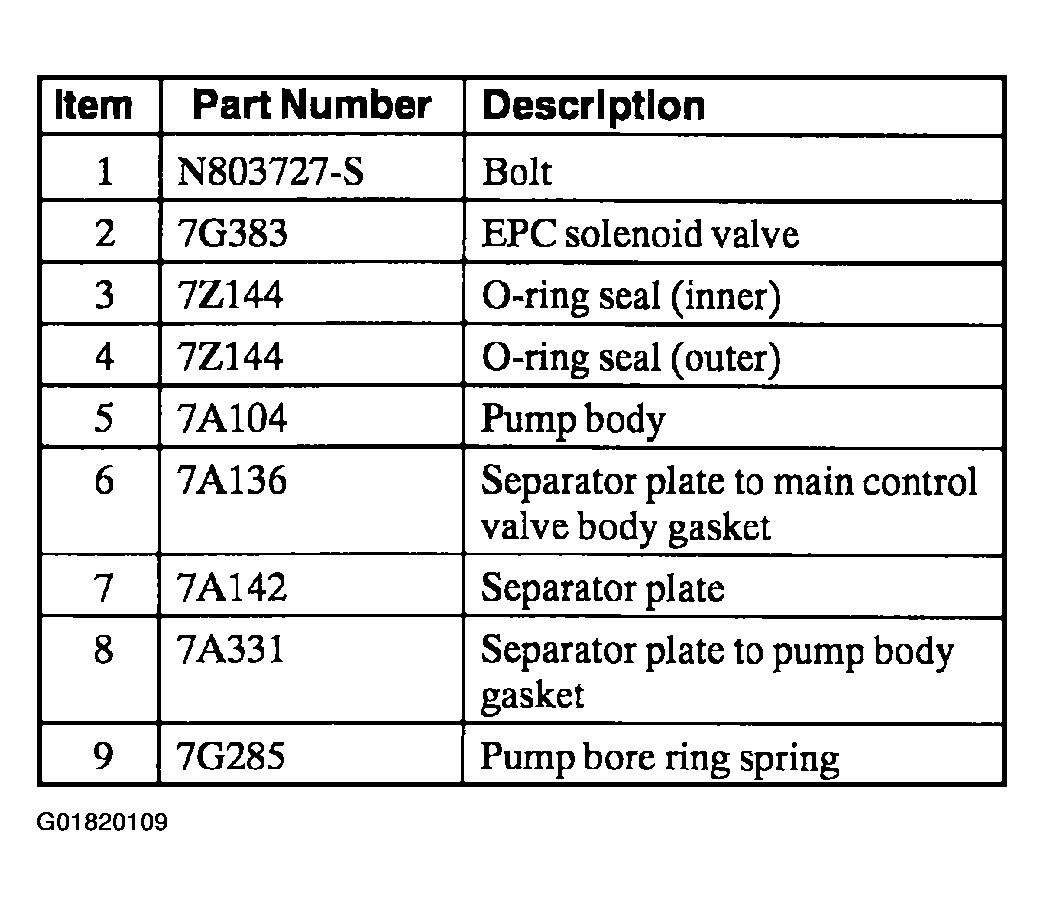

Fig 3: Pump Assembly - Component View Legend (Items 1-9)
G01820109Courtesy of FORD MOTOR CO.

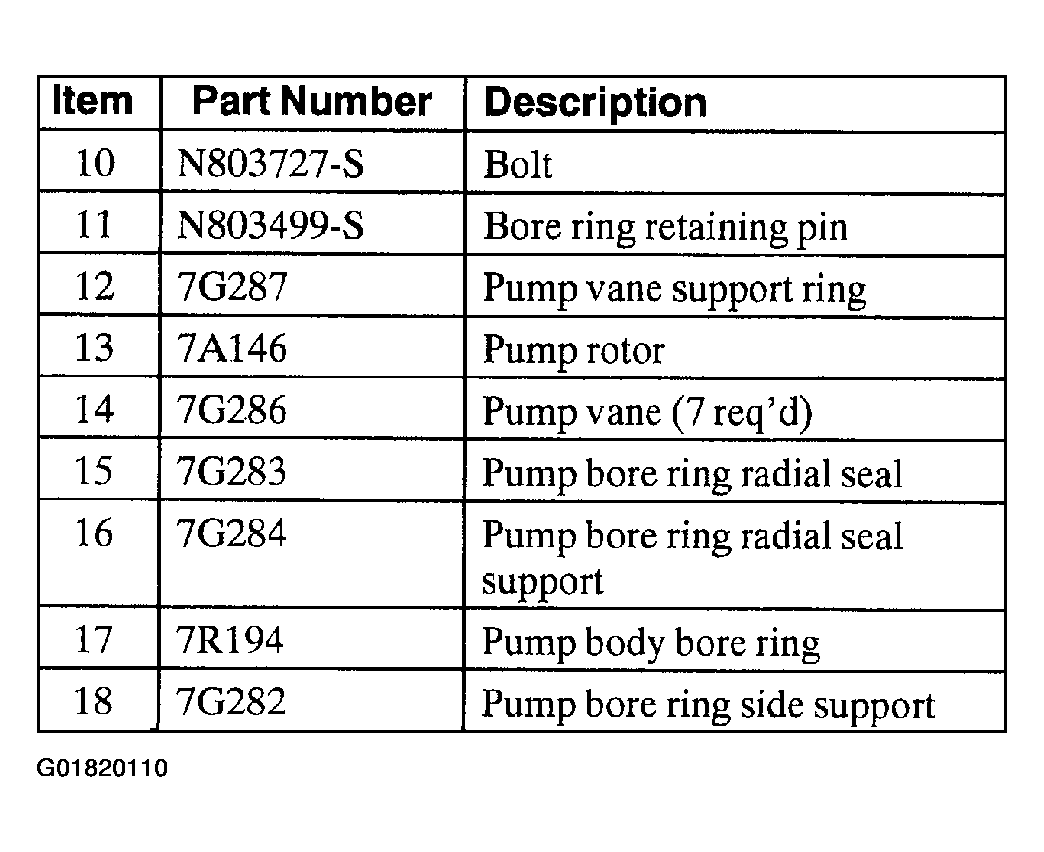

Fig 4: Pump Assembly - Component View Legend (Items 10-18)
G01820110Courtesy of FORD MOTOR CO.

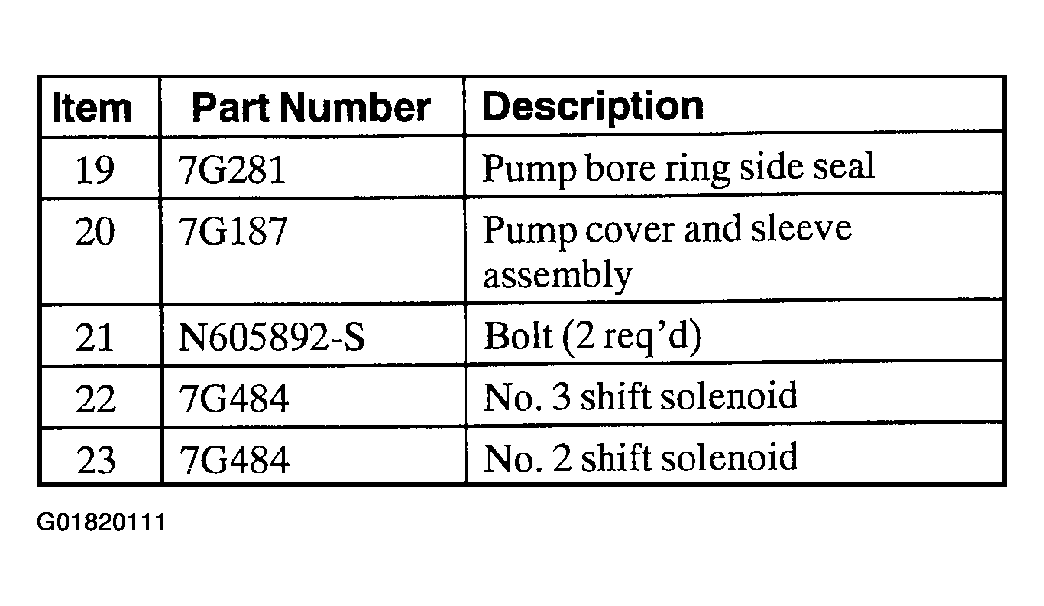

Fig 5: Pump Assembly - Component View Legend (Items 19-23)
G01820111Courtesy of FORD MOTOR CO.

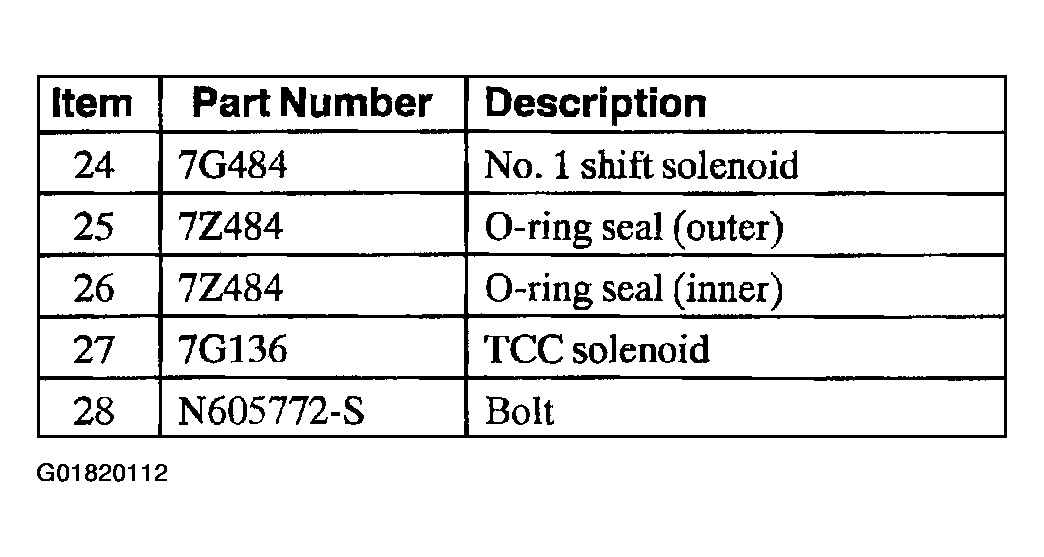

Fig 6: Pump Assembly - Component View Legend (Items 24-28)
G01820112Courtesy of FORD MOTOR CO.
