Home >> Lincoln >> 2002 >> Continental >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Disassembly And Assembly Of Subassemblies >> Sun and Shell Assembly - Assembly >> Notes

Sun and Shell Assembly - Assembly: Notes

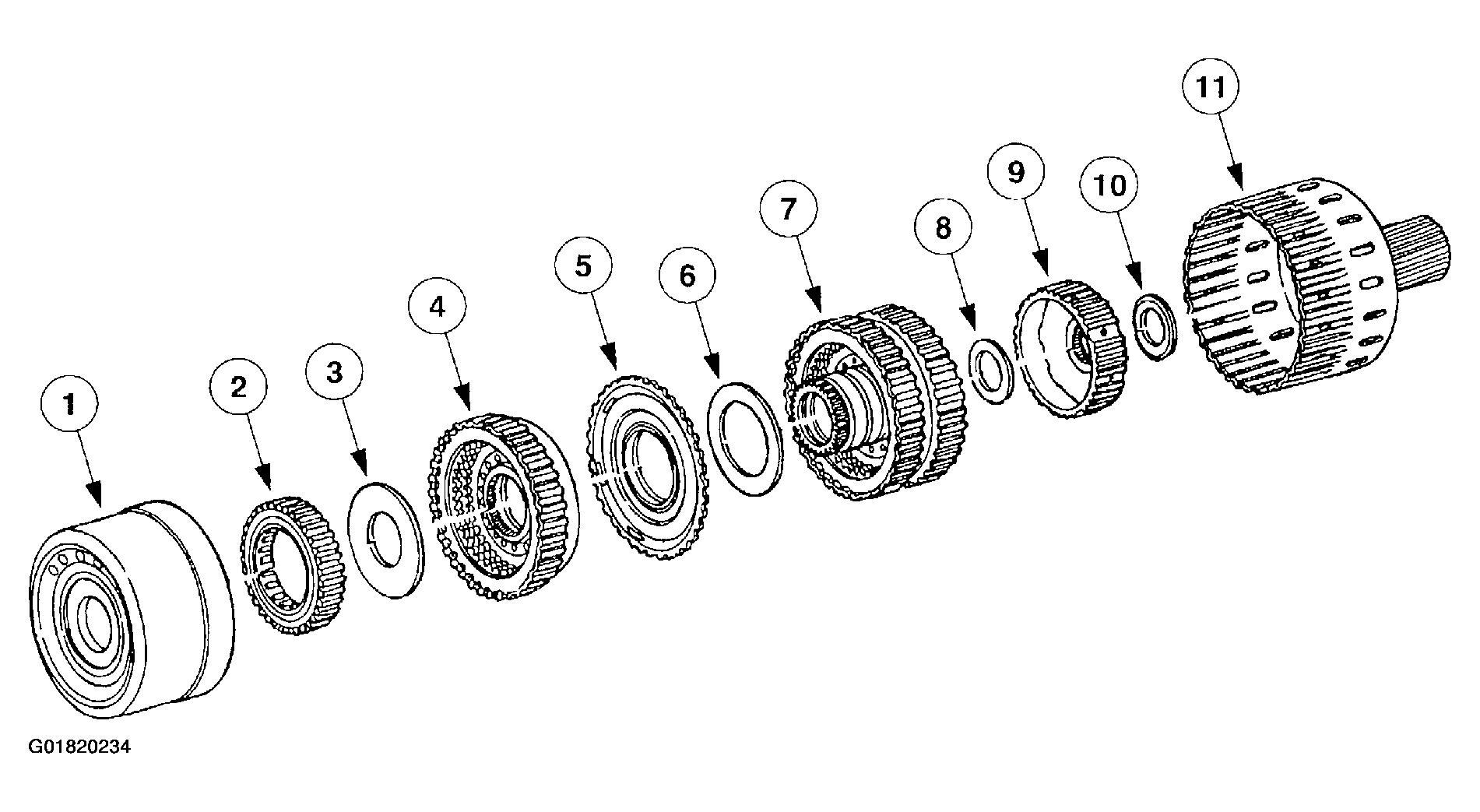

Fig 1: Sun and Shell Assembly - Component View
G01820234Courtesy of FORD MOTOR CO.

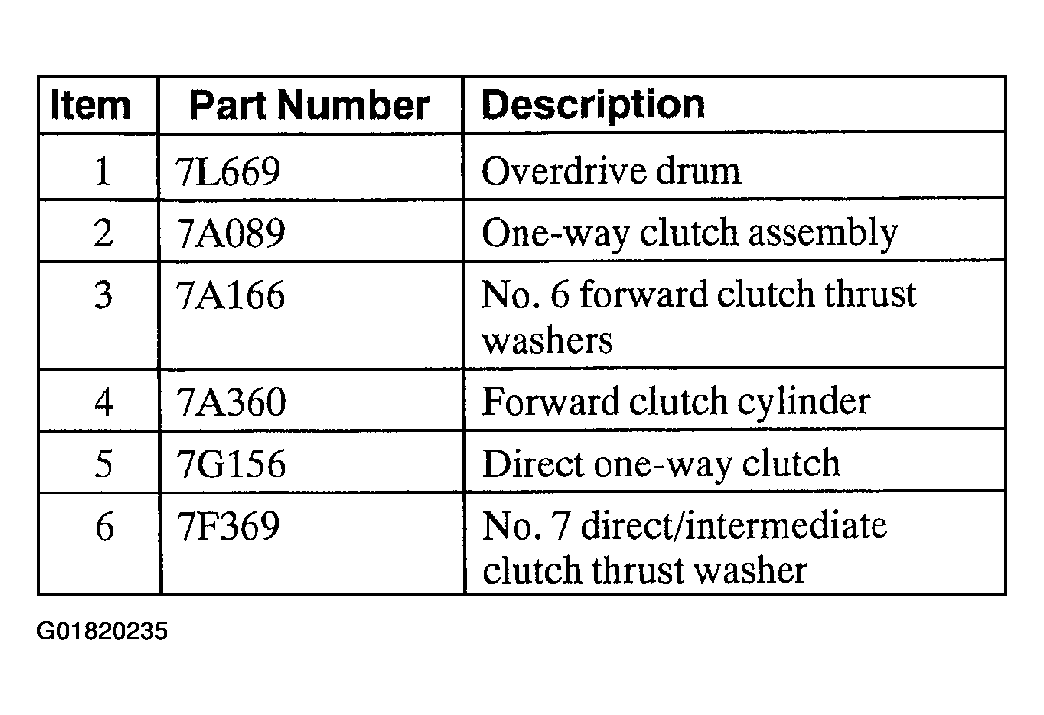

Fig 2: Sun and Shell Assembly - Component View Legend (Items 1-6)
G01820235Courtesy of FORD MOTOR CO.

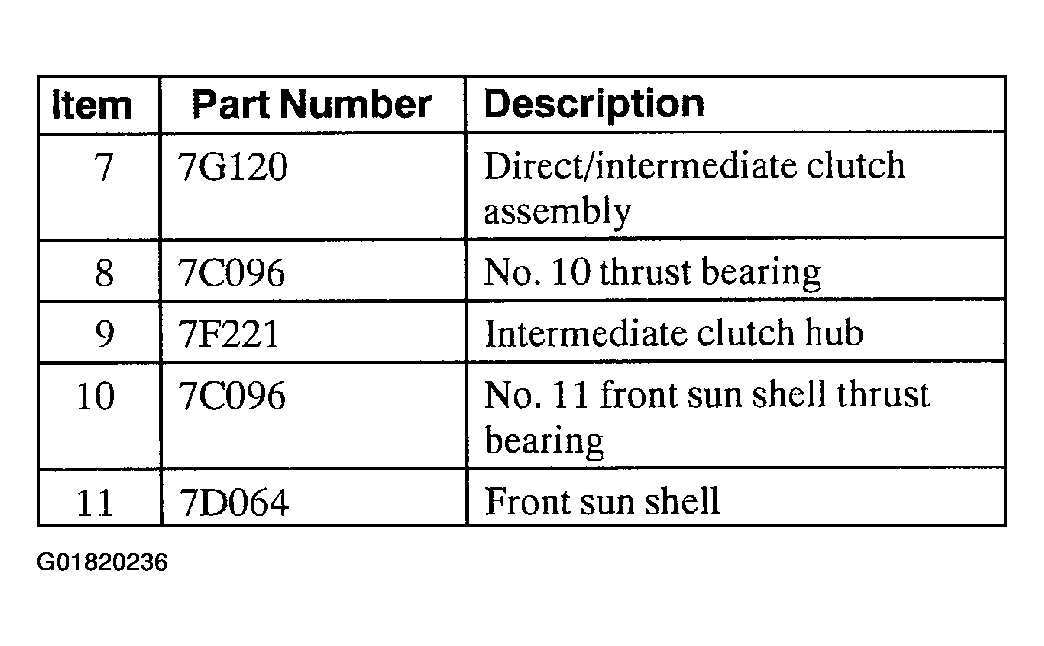

Fig 3: Sun and Shell Assembly - Component View Legend (Items 7-11)
G01820236Courtesy of FORD MOTOR CO.
